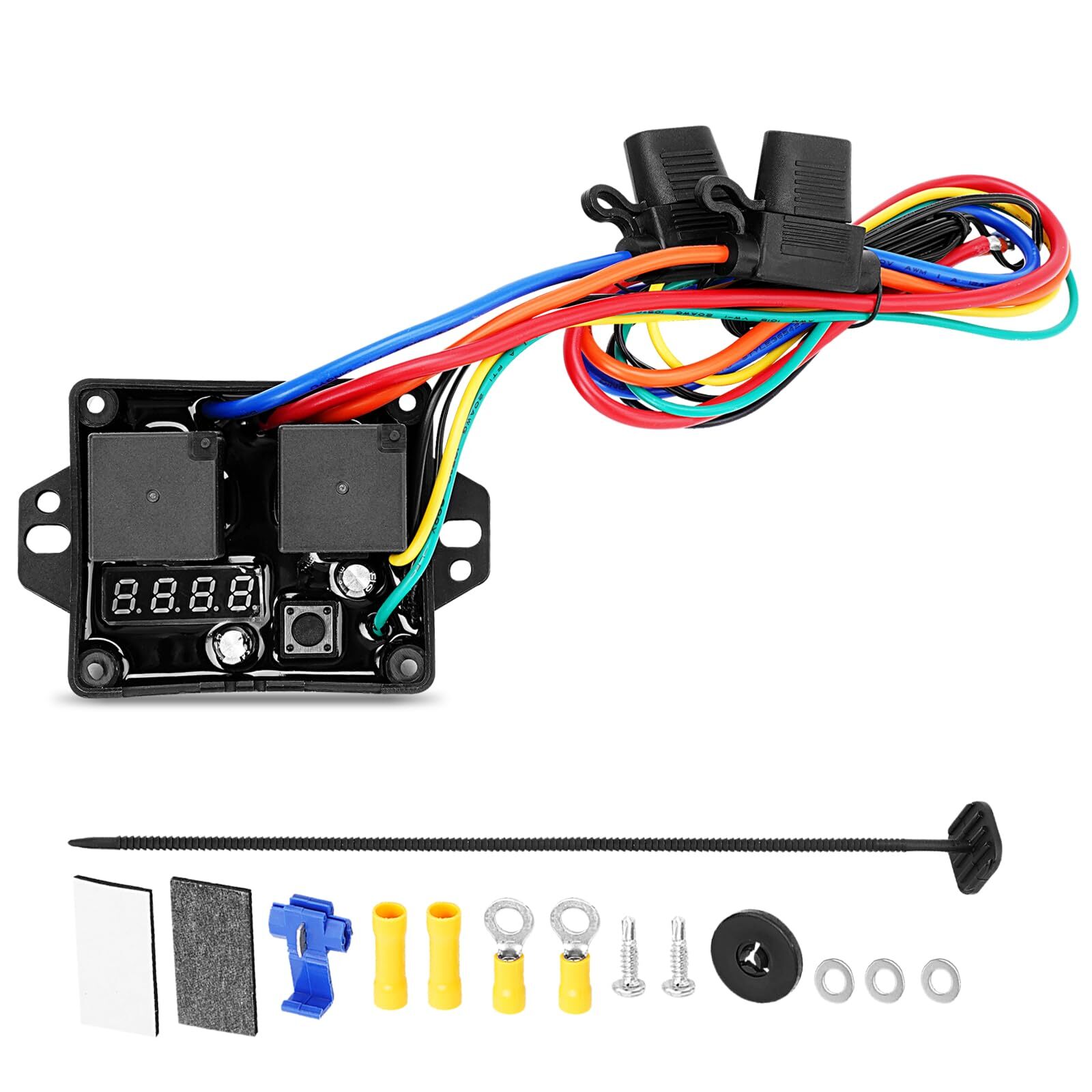

Sign Up Now !Digital Adjustable Thermostat Radiator Fan Temperature Controller DC-0444
PRODUCT voltage: 15V
Max current: 50A
Relay setup: Dual relay
Speed: Single speed - 10 second delay to start up the second fan
Applications: works with single and dual fan applications
Temperature Display: LED digital temp display - actual temperature + set temperature
Temperature Display: Centigrade or Fahrenheit Temperature settings: 104 to 230º F (40 to 110º C)
Temperature setting: Push Button
Circuit type: Pre-programmed micro controller
Output wires: Batt + Batt - IGN, AC Clutch, Fan #1, Fan #2 Thermistor Probe
You can use the A/C wire as a manual override by providing it with 12 Volts from a number 0444, DC0444. It can be used with various fan models like Electric Fans and EWP. The sensor can be placed in the radiator fin section or directly into the coolant system with an adapter kit.
【TEMPERATURE RANGE】The temperature range is adjustable from 104°F to 230°F (40°C to 110°C) and displayed in Celsius or Fahrenheit on an LED digital screen, with temperature adjustment via a set button.
【EFFECTIVE OPERATION】Installed within the engine, operating in both hot conditions and when the air conditioner running. It efficiently controls either one or two fans, the second fan will activate 10 seconds after the first.
【NOTICE】* Our kit can be used for both 12V and 24V applications, but separate 24V relays need to be purchased for 24V operation. * Ensure the switch is away fromhigh heat sources, such as theexhaust manifold.
