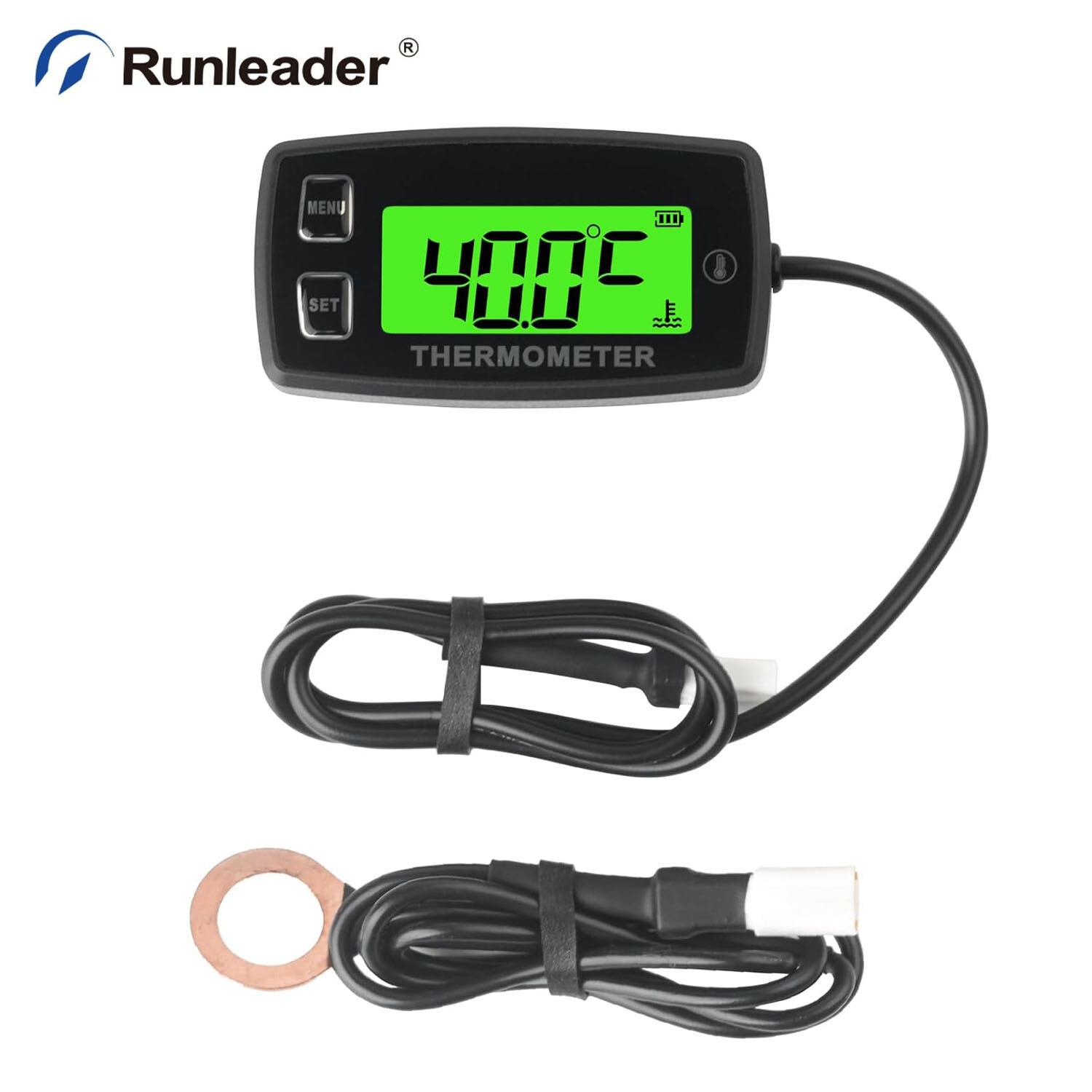

Runleader RL-TM003A Digital Engine Temperature Meter, Max Temperature Display,Battery Replaceable,Backlight Display.Waterproof rate IP67.It attached the built-in replaceable battery CR2032 210mAh with long running lifetime.（2 years warranty）
For more than 10 years, Runleader has focused on product development and manufacturing in the fields of hour meter, battery indicator, multi-function meter, controller,service for the garden machinery industry, outdoor power vehicle equipment, transportation vehicles, such as: generators, pumps,chainsaws,outboards,lawn mowers,compressors and others,provide well-known European and American customers with quality products and services.
About this item
- ENGINE TEMPERATURE METER---- Include functions of real-time temperature, Maximum temperature and Over-temperature alert reminder;
- REAL-TIME TEMPERATURE ---- Record real-time engine temperature when temperature sensor connect correctly. measurement range: -20℃ to -+300℃(-4℉ to -+572℉),accuracy :±1℃/℉.
- MAXIMUM TEMPERATURE ---- You can check the historic maximum temperature at any time, it is resettable.
- OVER-TEMPERATURE ALERT--- Alert reminder when temperature exceed initial alert value, alert temperature range:-20℃ to -+300℃(-4℉ to -+572℉),default value 100℃(212℉).
- OTHER ---- Easy to install; Waterproof rate:IP67; internal battery CR2032(replaceable);CE RoHS certification; 2 years warranty.
Product Features
- Real-time engine temperature:Help to measure the real-time temperature value by TS002 temp sensor.
- MAX TEMP:It display the maximum temperature value since engine started.
- Over temperature alert:Remind the over temperature based on preset alert value.
- Temperature measurement range:-20℃ to -+300℃(-4℉ to -+572℉)
Runleader has established a complete laboratory for testing and improving the product\'s quality
Buttons Testing
- The buttons can works well after 10,000 repeated taps with a 300g weight.
High & Low temperature Testing
- It can works well in temperature environments temperature: -40 °C - +70 °C.
Drop Testing
- Favorable anti-vibration performance can suffer strong vibrations when the equipments is working.
Anti-vibration Testing
- It can keep the housing and LCD display window in good condition upon vibration amplitude 1.52mm after 6 hours testing period.
Static interference Testing
- It keep the good working condition upon a partial electromagnetostatic field.
Yellow Resistance Testing
- It can keep good working condition from simulative strong UV ray lightening. It also pass another considerate test for each functions sections and attached accessories.
Installation MethodsSpecification
- Temp measurement range：-20℃ to -+300℃(-4℉ to -+572℉)/each channel
- Over temp alert：✓
- Replaceable battery type：CR2032 210mAh
- Backlight mode：Green backlight
- Temp sensor type：TS002 PT100
- Waterproof rate/Weight：IP67/84g(2.96 ounces)
- Product size/Screen size：70.10mm*37.00mm*17.20mm （2.76 inches*1.46 inches*0.68 inch）/41.00mm*17.00mm (1.61 inches*0.67 inch)
