New D9 device generation with better
Computing processors, larger RAM
and a small additional display for the dashboard!

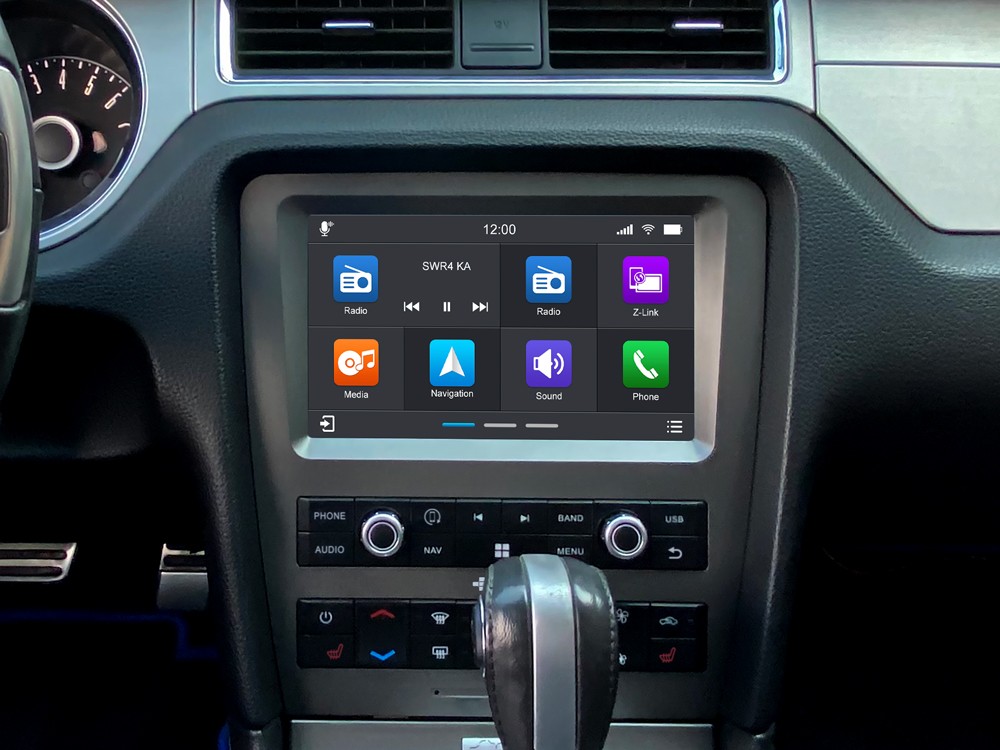

D9-MST2010 PLUS
9\" Naviceiver with Apple CarPlay,
Android Auto (both also wireless), Bluetooth, DAB+, WiFi and navigation(If the vehicle does not yet have a DAB antenna installed at the factory, so
This must be retrofitted in order to be able to receive digital radio.
This is included in the scope of delivery.
It is also possible to use an antenna splitter to replace the original antenna
Can be used for both FM and DAB+. We\'ve got splinters
35 euros in the program.)
specially developed for the instructions:1. Also for vehicles with shaker sound systems!
Vehicle model Year of construction
FORD Mustang 2010 - connection to the vehicle functions
Steering wheel controls
Climate display
(If an original one is available or one is being with Shaker sound system
Apple CarPlay + Android car
This allows you to access a number of apps on your smartphone
access and use voice control or on the touchscreen
Operate screen.
(e.g. Google Maps, WhatsApp, telephone functions, Spotify,
audio books, etc.)
Google Play Store
Head-up display
To prevent the driver from hitting while driving
The car radio needs to be looked at in order to find navigation and information
To obtain speed information, Dynavin has a
Head-up display developed. This has a round
1.4 inch LCD and is designed for the Dynavin 9 radio.
It can be on the dashboard or on the windshield
attached and displays next to the navigation information
from Dynaway, Apple map with Carplay and Google map with
Android Auto also the vehicle speed and
Speed camera information.
Quick start function
The quick start function of Dynavin 9 leaves the radio
boot up in 3 seconds. So the user can
Enjoy music quickly after switching on the ignition.
The quick start is deactivated to prevent the discharge
To prevent battery in case the car lasts longer than 48 hours
was not home screen
With our own operating system DynOS you have it
Ability to change the home screen image and logos
the stored radio DAB+ digital tuner
The integrated DAB+ tuner with MOT slideshow,
dynamic channel list, service following and DLS text
enables clear and stable digital radio reception.
The background scan function keeps the channel tuner with DSP
The Dynavin radio receiver has one high-cut
High-frequency attenuation function for weaker transmitters
through noise masking for better and clearer
Sound provides.
Bluetooth hands-free system
with music streaming
- Supports low power scanning function
- PBAP phone book synchronization with 1000 entries
Hands-free function with HFP
- Music streaming: A2DP compatible
- Phonebook: Automatic transfer of the phonebook
- Support dashboard display for caller alerts
- Support for saving connection history
from multiple cell phones
- Display device name
- Call history: dialed number / received calls /
missed calls
- Voice volume adjustment: adjustable for incoming
and outgoing calls
- Microphone gain adjustable
- GSM signal strength display
- Battery level display
Dynaway navigation software
Navigation software with 3D view, TTS and Premium POI.
You can access the remaining countries for free
Download from the Dynavin sound adjustment:
Faders and balance
Simply drag the crosshairs on the touchscreen
to the desired location on the image of the vehicle interior
room to adjust the fader balance and time presets
The Dynavin 9 platform offers extensive sound adjustment options
Ways to get the most from your vehicle sound system
get it out and adjust the sound to your taste and yours
to suit preferences.
Source setting
In the source menu you can set different volume levels for the
adapt to different audio sources. So you don\'t feel that
the volume changes as you switch between the
switch to different modes.
Technical data
GenerallyAndroid 11 OS with 4GB RAM and 96GB ROM
Output power: 4 x 45 W max.
3 PreOuts (3V, Front / Rear / Subwoofer)
CANBUS integration
Menu language: English / German / French / Spanish /
Portuguese / Dutch / Greek / Italian /
Polish / Danish
Camera connection and built-in controls for Dynavision
Multi-view cameras
Camera guide lines setting
Rear view camera display Automatic / Fast startup
16 band EQ
Automatic dimmer
Firmware upgradeable
Compatible with start-stop system
displayDisplay: 9 inches (LVDS)
Resolution 1280 x 720 pixels (RGB)
Capacitive touchscreen
Anti-reflection display
Working system: TFT active matrix
Z linkCompatible with Wireless Apple CarPlay
Compatible with Android Auto
Compatible with SmartPhone Mirroring
DAB+Integrated DAB/DAB+
DAB + to DAB + Service Following
Seamless blending (automatic switching between
DAB+ and FM)
SLS (Slideshow Service)
DLS (Dynamic Labeling Service)
Radio VIS (station coverage on your radio display)
Station memory: 15 program memory locations
Integrated BT
Integrated BT module
Specification standard: 3.0 and 2.1 + EDR
-95dBm sensitivity, excellent low power scanning function
PBAP phone book synchronization with 1000 entries
Hands-free function with HFP
Music streaming: A2DP compatible
Individual profile connection: hands-free function and
Music streaming
Phonebook: Automatic transfer of the phonebook
Caller alert dashboard display support
Support for saving connection history of
multiple cell phones
Display of the device name
Call history: dialed number / received calls /
missed calls
Voice volume adjustment: adjustable for incoming
and outgoing calls
Microphone gain adjustable
GSM signal strength display
Display of the battery charge level
USBUSB specification: USB support for fast charging
Audio playback (supported formats: playback (supported formats: browsing (supported formats: JPG/BMP/PNG/JPEG)
Playback mode: random play / single track loop /
All loops/folder loop
Image can be set as home screen
Sync song album images
Sliding progress bar
Video playback speed x2/ x4
Memory playback progress
Support for dashboard display of songs/
Composers
Support steering wheel to control song/
Volume level up/down
Search by file/folder name
Supports up to 256GB USB storage device
Sound tuningOutput power: 4 x 45 W max.
Adjustable subwoofer level
Subwoofer, bass, middle, treble phase selectable
Equalizer: pop, rock, classical
16-band parametric equalizer
Faders and balance
Digital time correction
Adjustable volume reduction when parking
Maximum switch-on volume adjustable
radioFM frequency range: 87.5 - 108.0 MHz
AM frequency range: 530-1710KHZ
FM utility sensitivity: 5-6 db
FM stop sensitivity: 22 db
AM stop sensitivity: 21 db
With left and right stereo channels
Signal-to-noise ratio: 56 db
Manual station storage for 15 stations
RDS functions: AF, TA, station text
Automatic station search function
High-cut high-frequency attenuation function
Support for changing FM/AM memory space images
Optional switching the radio antenna on and off
navigationMaps: Complete map of Europe with 46 countries
Menu languages: 28 languages
Advanced address search
Postcode search
Free search
Search with parts of words
Advanced POI features
Fast route calculation
Advanced route planning
Map display: 2D top view, 2D north orientation, 3D
3D city maps: 3D building views
Display of elevation profiles
3D Highway Interchanges: 3D representation of highway intersections
Tunnel mode
Highway mode
Navi mix mode
Direct dialing by telephone from POI data
Free map update after first registration
GPSGPS antenna included
GPS reception frequency 1,575.42 ± 1 MHz
GPS reception sensitivity -165 dB max
Positioning accuracy: 10m, 2D RMS
Data refresh rate: 1HZ
Reacquisition time: 0.1 s on average
Scope of delivery:
- New device in original packaging
- Invoice with VAT shown
