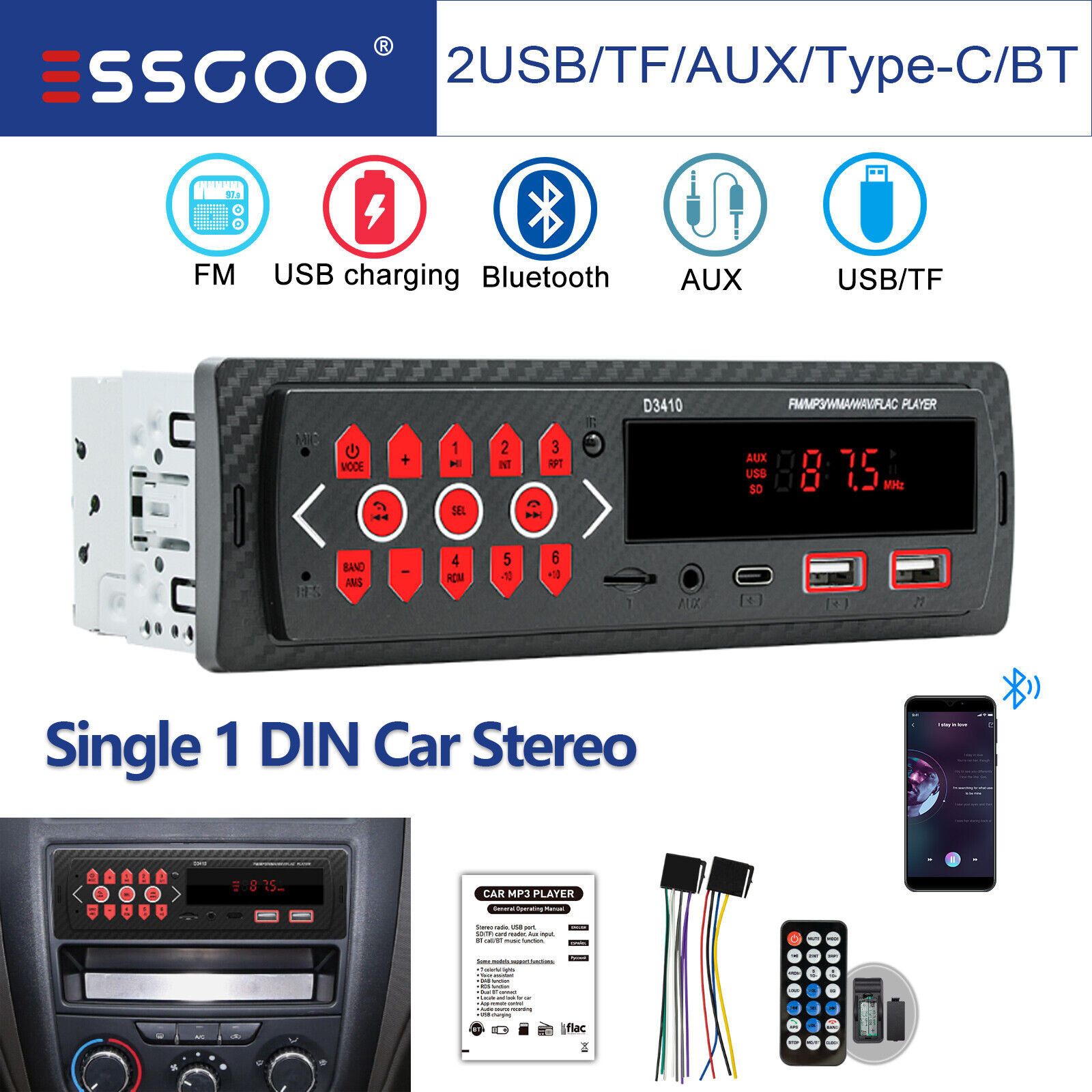

1 DIN car radio
MP3 car radio in 1DIN format without CD drive with illuminated buttons and ergonomic rotary knob for easier operation at the wheel.
Bluetooth hands-free function and music playback via A2DP
Hands-free system for your mobile phone: So that you can always drive safely and flexibly, this car radio offers you the function of making wireless calls using the microphone on the radio and the speakers in the car. All you have to do is connect your Bluetooth mobile phone to the radio via Bluetooth!
You can also play music from your cell phone, smartphone, tablet or Bluetooth-enabled MP3 player with A2DP support directly through the speakers in the car, without having to copy files or make unnecessary cabling.
Multimedia
The TF card slot and the USB port are suitable for storage media with a size of up to 32 GB each. So you can use up to 32GB of music on the device through flash media.
7 lighting colors
The car radio has 7 LED lighting colors that you can set as you like.
FM radio with AMS
FM stereo radio
Automatic station search (AMS)
18 FM station presets
ID3 tag display
Artists and music titles are displayed on MP3s with stored ID3 tags.
AUX connection for external audio source
Standard 3.5mm jack connection for external audio sources. Simply connect your iPod, MP3 player, smartphone or tablet to the jack plug and listen to music directly from the external device through the speakers in your car.
Technical specifications
General
Direct mains voltage: 12V DC
Impedance: 4 ohms
Color: black, high gloss
Installation size: 1 DIN(178mm x 50mm)
Screen
Type: LED segment display (Digital Segment Display)
Size: approx. 7.2 x 2.2 cm
FM Tuner Part
Frequency range: 87.5-108 MHz
IF range: 10.7 MHz
Sensitivity: 5 dB
S / N ratio: 45 dB
Stereo separation: 26 dB (1KHz)
Antenna resistance: 75 ohms
Audio
Frequency range: 20Hz - 20KHz
Output: for 4 loudspeakers
loudspeaker impedance: 4 to 8 ohms
Output power: Max 4x60W
Supported Media:
Media: TF and USB
Formats: MP3 (with ID3 tags) and WAV
USB Port
TYPE A, standard
Supported size: max. 32 GB
File system: Fat32
TF Card Slot:
TYPE: TF
Supported size: max. 32 GB
File system: Fat32
Bluetooth
Bluetooth version: 4.0
Profiles: A2DP, AVRCP
Frequency range: 2.4GHz spectrum
Rear Connections
ISO connection socket
Antenna connection
4CH audio output
Front Connections:
1x TF card slot
2x USB connection
1 xAUX-IN
Delivery content:
1x 1 DIN car radio
1x Remote Control (without battery)
1x ISO connection Cable Set
1x Assembly Instructions
