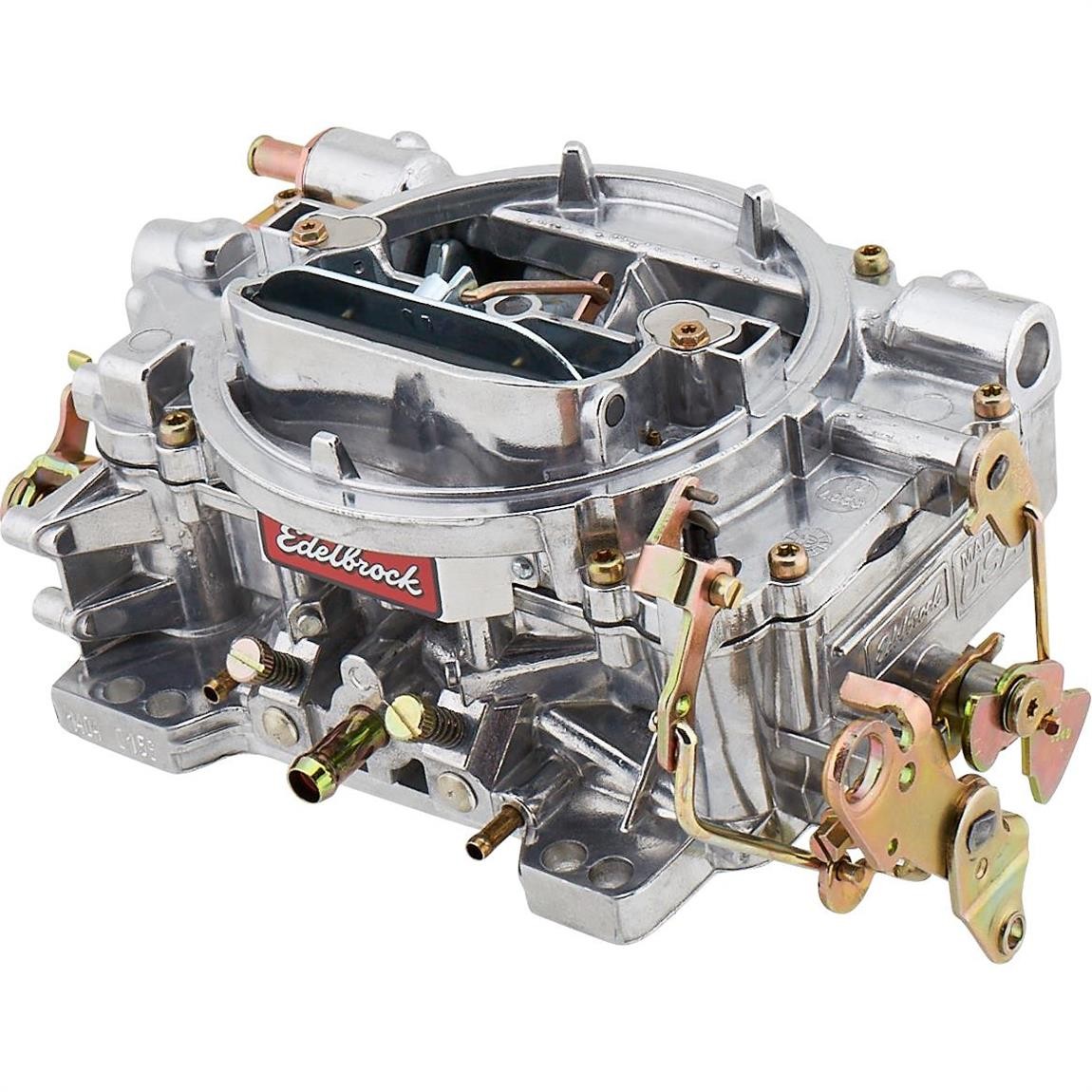

It uses metering rods to transition between circuits, Features bolt-on-and-run performance right out of the box, Provides smooth throttle response throughout the power band, The float levels are factory set and adjustments are rarely needed, A two-piece design means no gaskets below the fuel level for leak-free operation Edelbrock 1404 Performer 500 CFM 4 Barrel Carburetor, Manual Choke Sku # 3251404 Mfr. Part # 1404 Condition New Brand Edelbrock Sold Each Details
Edelbrock Performer Series 4 barrel carbs have proven themselves to be easy to tune with great drivability. Whether you need to replace an aging stock carb or are looking for a performance four barrel carb to top off your hot rod, the Edelbrock Performer Series 4 barrel carbs are the best choice for performance and value. All Edelbrock parts are proudly made in the U.S.A.
This 500 CFM four barrel carburetor is designed and calibrated for small cubic-inch engines such as 305 c.i.d and smaller Chevrolet; 302 c.i.d. and smaller Ford. Match with an Edelbrock Performer or Performer EPS manifold and other brands of similar design. Includes manual choke and detailed instructions. Ford/Mopar throttle adapter arms sold separately.
- Manual choke
- Bolt-on-and-run performance right out of the box
- Smooth throttle response throughout the power band
- Uses metering rods to transition between circuits - rods can be changed in seconds without carburetor removal or draining fuel
- Float levels are factory set; adjustments are rarely needed
- Change jets, adjust floats & replace needles/seats without draining fuel or removing carb
- Two-piece design means no gaskets below the fuel level for leak-free operation
- Lightweight all-aluminum body is compatible with gasohol and blended fuels
- Includes both timed and full vacuum ports for ignition advance
- Comes with:
- Metering Jets - Primary .086, Secondary .095
- Metering Rods - .065 x .052
- Step-Up Spring - orange (5 \" Hg)
Specs Carburetor Barrels 4-Barrel Fuel Type Gasoline Choke Type Manual CFM Range 500-599 CFM CFM 500 CFM Carburetor Flange Type 4-Barrel Square Bore Finish Satin Material Type Aluminum Color Silver Secondary Type Mechanical Overall Height 4.25" Fuel Inlet Type Single Gasket(s) Included Yes New or Remanufactured New Throttle Linkage Type Universal Supercharged Application No Bolt Hole Pattern 5.160" x 5.625" Notes 3-1/4" from bottom of carb base to the base of the carb neck. Mounting bolt hole pattern is 5-1/8" by 5-5/8". MFG. Part # 1404 GTIN Code 085347014040 Sold in Quantity Each Reviews Edelbrock never disappoints! Rated by Jpwhit1 on November 23, 2025
Summary: Added this carb to my 1953 flathead. Worked like a charm right out of the box!
Yes, I recommend this product.
Edelbrock reliability Rated by Dodge on June 28, 2025
Summary: Chose the 500 for the bone stock engine I am using. Starts and performs flawlessly.
Yes, I recommend this product.
Big Improvement Rated by 6o Fridge 4x4 on February 07, 2025
Summary: Easy install and set up on a 292 Y block. Replaced a Chinese copy of the original single barrel that came with the truck. I upgraded to the 4bbl intake at the same time, and the difference in power from this old motor was staggering. This carb did require different jets and needles at 5030' elevation, but those parts are affordable and easy to come by and very simple to install. I would absolutely recommend this part to anyone else.
Yes, I recommend this product.
I have purchased these carbs many times. Rated by Sam on November 16, 2024
Summary: I have many classic cars and little by little am replacing my old Holley carbs that leak with new edelbrock carbs. Easy installation and new so no leaks !!
Yes, I recommend this product.
Really good quality. Rated by Rancheroman on December 08, 2023
Summary: Easy to install and tune. Great power response on demand.
Yes, I recommend this product.
