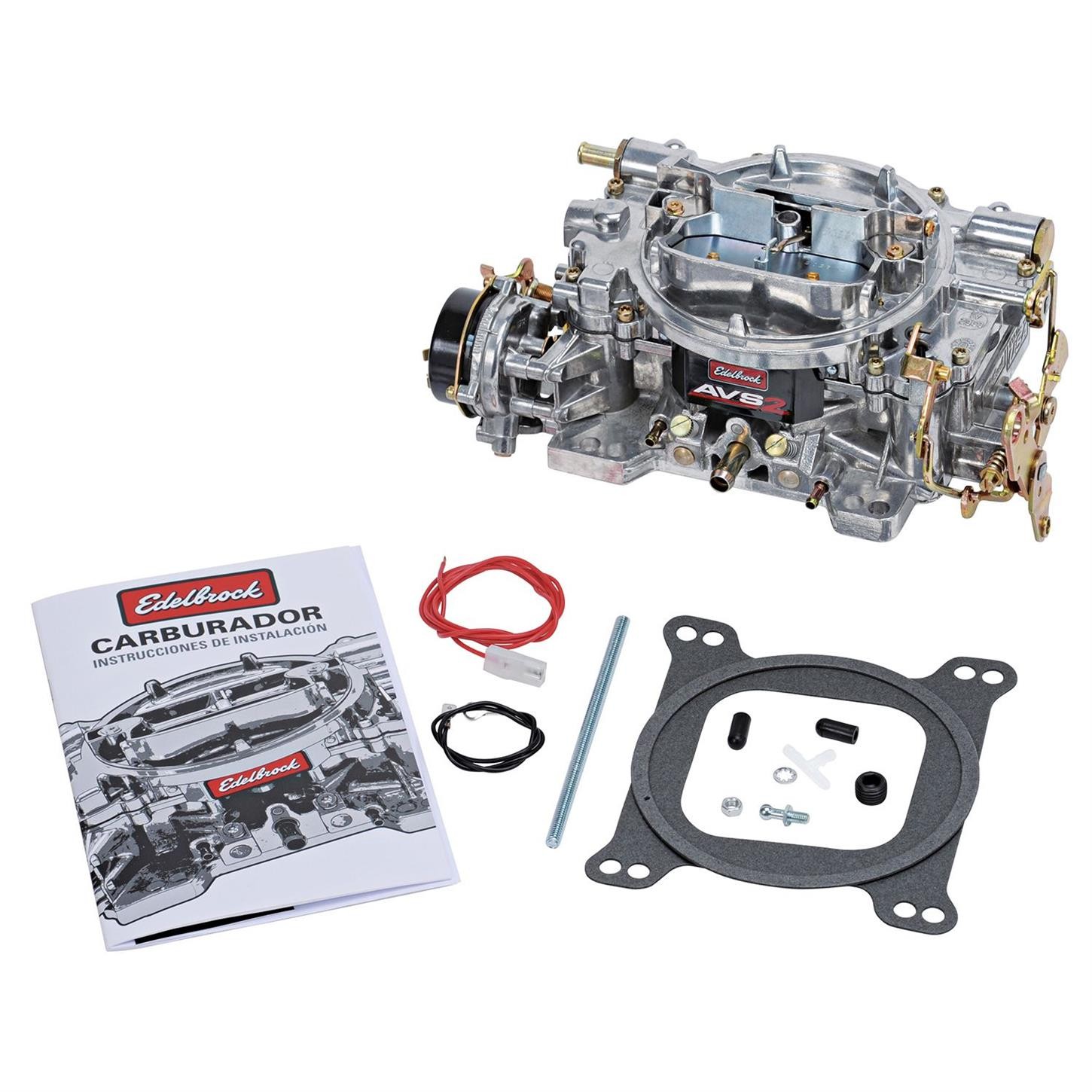

It is unaffected by engine backfires since there are no power valves to blow out, Designed to offer superior fuel atomization to all high-horsepower small- and big-block engines, The metering rods and springs can be changed in seconds without carburetor removal or fuel draining, Flat spots are completely eliminated, and throttle response in the low- to mid-RPM range is improved, The Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas Edelbrock 1913 AVS2 Series Carburetor, Electric Choke, 800 CFM Sku # 3251913 Mfr. Part # 1913 Condition New Brand Edelbrock Sold Each Details
Edelbrock’s Annular Flow Booster technology brings superior fuel atomization to all high-horsepower small- and big-block engines with the AVS2 800 CFM Electric Choke Carburetor #1913 that is specially calibrated to make power. Annular Flow Boosters deliver near EFI-like drivability that you can feel as soon as you step on the gas. Fuel distribution is refined by eight equally spaced orifices in the booster rings that replace down-leg boosters which simply dump raw fuel into the venturi. Flat spots are completely eliminated, and throttle response in the low- to mid-RPM range is improved tremendously without sacrificing that top-end power that Edelbrock is known for. The AVS2 is unaffected by engine backfires since there are no power valves to blow out. For fast and simple part-throttle tuning, metering rods and springs can be changed in seconds without carburetor removal or fuel draining. AVS2 carbs have the unique ability to \"hold a tune” when compared to other carburetors.
Your tuning and adjustments stay unchanged, so performance remains consistent. Updated primary and secondary booster clusters in the AVS2 offer the most accurate and up-to-date calibration available for today\'s fuels and octane levels. Additionally, the unique Qwik-Tune Secondary Air Valve allows for limitless calibration of the secondary circuit. Adjustments can be with simple hand tools in seconds to suit your application. The AVS2 features a two-piece ease-of-tuning design that allows you to make float level adjustments or replace internal components without draining the fuel from the carburetor or removing it from the engine. AVS2 Series carburetors, like Edelbrock’s popular Performer Series and Thunder Series AVS, are designed, manufactured, assembled and calibrated by Edelbrock in the USA.
- Mounting Hole Quantity: 8
- Body Material: Aluminum
- Metering Rod Length: 65 in
- Secondary Jet Diameter: 104 in
- Mounting Hole Diameter: 0.355 in
- Barrel Quantity 4
- Gasket Or Seal Included Yes
- Flange Shape: Square
- Mounting Hardware Included: No
- Spacer Included: No
- Main Venturi Diameter: 1.530 in
- Small Venturi Diameter: 1.630 in
- Body Color: Satin Finish
- Choke Type: Electric
- Maximum Flow Rating: 800 CFM
- Primary Jet Diameter: 104 in
Specs Carburetor Barrels 4-Barrel Fuel Type Gasoline Choke Type Electric CFM Range 800-899 CFM CFM 800 CFM Carburetor Flange Type 4-Barrel Square Bore Finish Satin Material Type Aluminum Color Silver Secondary Type Mechanical Fuel Inlet Type Dual Gasket(s) Included Yes New or Remanufactured New Throttle Linkage Type Universal Booster Annular Supercharged Application No Carburetor Height 3.25 Primary Main Jet 104 Secondary Jet Size 104 MFG. Part # 1913 GTIN Code 085347019137 Sold in Quantity Each Reviews Yes Rated by Superbee on June 11, 2025
Summary: Excellent product
Yes, I recommend this product.
I would purchase again Rated by Jim on March 20, 2025
Summary: Installed but not fired up yet.All I can say so far is absolutely plan on popping it apart and adjusting the floats before you install it. They were way off on mine so it tells me Edelbrock leaves it up to the buyer to adjust them. Otherwise it looks to be good quality.
Yes, I recommend this product.
Great product, would recommend it to anyone. Would buy agai. Rated by Donnie on March 10, 2021
Summary: Using this on my blown sbc. Didn't have to make any adjustments. Ran out of the box.
Yes, I recommend this product.
Yes Rated by Don on February 02, 2021
Summary: It made my 496 Chevy run great
Yes, I recommend this product.
