Compact Chassis, Large Display – brings a modern big-screen interface to compatible Single DIN Check Fitment Before OrderingThe SD1X6S2 is a universal Single DIN car stereo.
Please check both the radio opening and surrounding dashboard space before purchase.
Main Installation Dimensions
- Radio opening: 178 × 50mm
- Main unit depth: approx. 125mm
- Screen size: approx. 263 × 170mm
The 1-DIN chassis may fit the radio opening while the much larger screen occupies additional dashboard space.
Please make sure the display will not obstruct:
- Air vents
- Climate controls
- Hazard switches
- Dashboard buttons
- Gauges or other frequently used controls
If Your Dashboard Is Not 178 × 50mm
A vehicle-specific fascia, mounting kit or Single DIN installation kit may be required.
These parts are not included unless specifically stated in your selected package.
Check the Factory Wiring
The SD1X6S2 is designed around a compatible ISO-standard radio connection.
If your factory radio does not use the required ISO interface, a vehicle-specific ISO wiring harness or adapter will be required.
Before ordering, check:
Radio opening + screen clearance + original wiring
This is more reliable than choosing by vehicle make, model or year alone.

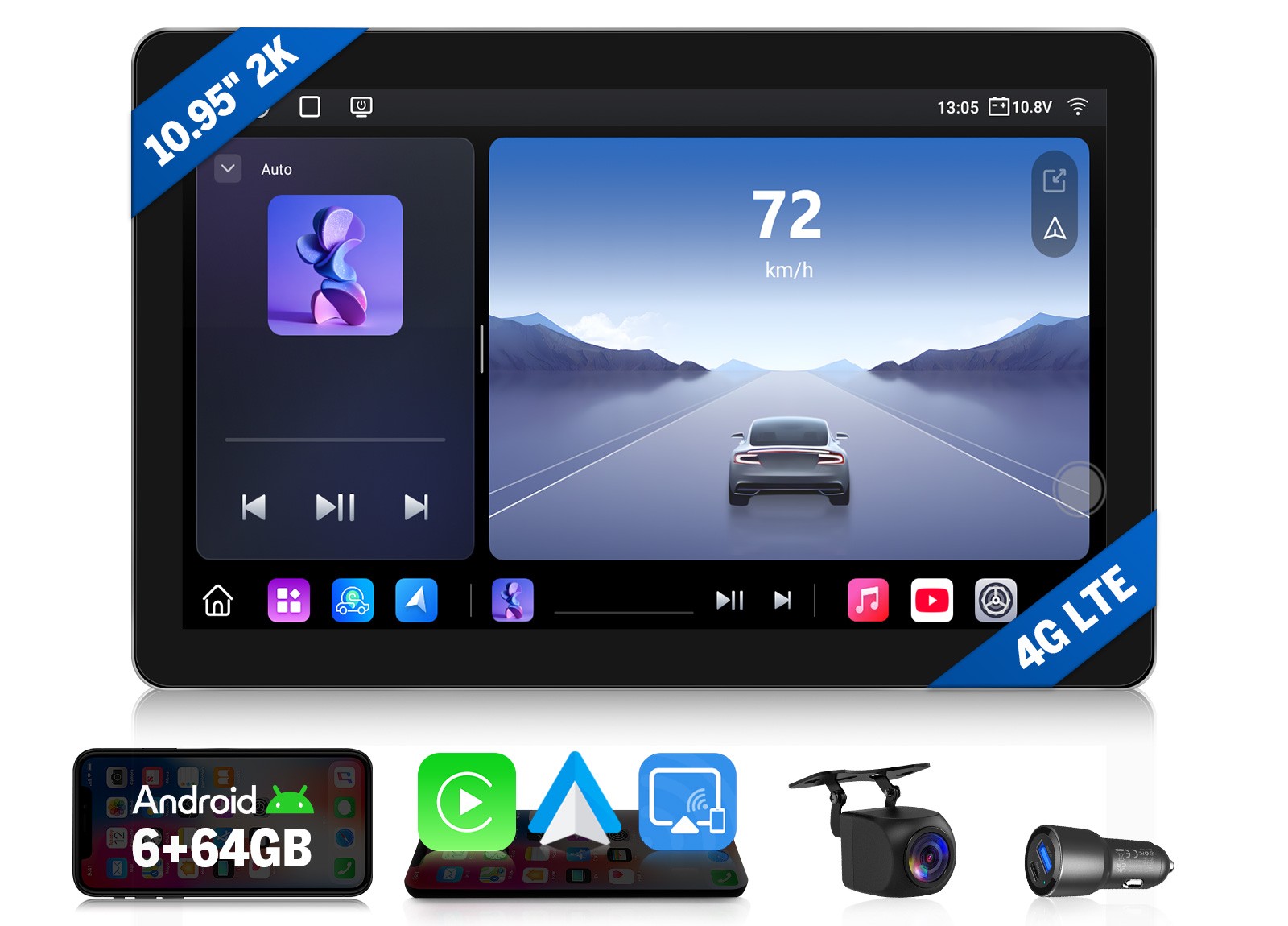

10.95" True 2K QLED Touchscreen
The display is one of the strongest reasons to choose the SD1X6S2.
Its 2000×1200 native resolution provides approximately 2.4 million pixels, giving maps, menus and compatible camera images more detail than conventional lower-resolution car stereo screens.
Display features include:
- 10.95" QLED touchscreen
- 2000×1200 resolution
- Approx. 2.4 million pixels
- 6H tempered glass
- Full-laminated display
- Approx. 30ms response time
- Adjustable viewing angle
- Aluminum-alloy frame
The high-resolution panel is especially useful for navigation and split-screen use, where more information is displayed at once.
Adjustable Screen Position
Because the display is considerably larger than the Single DIN chassis, the screen position can be adjusted to better suit different dashboard layouts and driving positions.
The display supports angle adjustment to improve visibility and help reduce interference with nearby dashboard components.
The redesigned screen connection also provides a more integrated connection between the display and main unit.
Please confirm screen clearance before ordering.
Android 13 + Qualcomm Performance
Powered by the Qualcomm QCM6225-AD 6nm platform, the SD1X6S2 provides the performance needed for navigation, music and compatible Android apps.
- 8-Core CPU: 4×A73 up to 2.8GHz + 4×A53 up to 1.9GHz
- 6GB RAM
- 64GB internal storage
- 1-second fast boot supported
- OTA firmware updates
- Split-screen multitasking
Run compatible functions such as navigation and music side by side without constantly switching screens.
Wireless Apple CarPlay & Android Auto
Connect your compatible smartphone and access familiar everyday functions directly from the large 10.95" display.
Use compatible:
- Navigation
- Music
- Calls
- Messages
- Siri
- Google Assistant
Both wired and wireless Apple CarPlay and Android Auto are supported.
Wireless connection reduces cable clutter, while a wired connection remains available when preferred.
ROHM 48-Band DSP Audio Control
The SD1X6S2 provides detailed sound adjustment for factory speakers or compatible upgraded systems.
Audio features include:
- ROHM DSP
- 48-band EQ
- Time alignment
- Multiple EQ presets
- Subwoofer control
- 25W RMS manufacturer-rated power
- Up to 4×48W amplifier output
- 5-channel preamp output
- 1.8V preamp voltage
For upgraded audio systems, the unit also provides 4 RCA outputs plus optical and coaxial digital outputs for compatible amplifiers and subwoofers.
Built-In GPS Navigation
Use the built-in GPS receiver and external GPS antenna with compatible offline maps or online navigation services.
Supported navigation options include compatible apps such as Google Maps and Waze when connected to the internet.
Offline maps allow route guidance even when mobile data coverage is limited.
4G LTE + Wi-Fi 6 Connectivity
Insert a compatible SIM card to give the stereo its own mobile data connection for supported navigation, streaming and Android apps.
Connectivity includes:
- Built-in 4G LTE
- 2.4GHz / 5GHz Wi-Fi
- Wi-Fi 6 ready
- Bluetooth 5.1 with external antenna
- Split-screen multitasking
A SIM card is not required for Apple CarPlay, Android Auto, Bluetooth, AM/FM radio, USB playback or GPS reception.
4G compatibility depends on the regional version, mobile carrier and supported LTE bands.
Wireless Screen Mirroring
The SD1X6S2 supports wireless screen mirroring with compatible iPhone and Android devices.
Supported phone content can be displayed on the larger 10.95" screen.
Availability depends on the phone, operating system and individual app.
DRM-protected services may restrict video playback or screen mirroring.
Steering Wheel Control Support
The SD1X6S2 supports compatible wired analogue steering wheel control signals.
Vehicles using digital or CANBUS-based steering wheel controls may require a suitable vehicle-specific adapter.
Because steering wheel control systems vary between vehicles, please check your original wiring before purchasing.
Camera, Radio & Media Support
The SD1X6S2 supports useful parking and media functions including:
- Rear camera input
- Front camera support
- Automatic reverse display
- Parking guidelines
- AM/FM radio with RDS
- 3 USB inputs
- USB media playback
For digital radio in supported regions, compatible Eonon A503 / DX2 / DX1 DAB+ modules can be added separately.
Optional Eonon Accessories
A100 Dash Camera
Add compatible front driving recording.
A0125 / A0127 Camera
Add compatible parking or reversing-camera functionality.
V0056 Bluetooth OBD2 Scanner
View supported vehicle diagnostic information through compatible Android apps.
A503 / DX2 / DX1 DAB+ Digital Radio
Add DAB+ reception in supported UK, European and Australian regions.
A304 DSP Digital Amplifier
Add further amplification for compatible upgraded audio systems.
Optional accessories and vehicle-specific installation parts are sold separately unless specifically included with your selected package.
Frequently Asked Questions
Will the SD1X6S2 fit my car?
It is designed for compatible Single DIN / 1-DIN radio openings measuring 178 × 50mm. Fitment also depends on wiring and available clearance for the larger screen.
Will the 10.95" screen fit my dashboard?
The display measures approximately 263 × 170mm, so please check the space around the radio opening before ordering. Make sure it will not block air vents, climate controls or important buttons.
Is the display really 2K?
Yes. The QLED panel has a native 2000×1200 resolution, approximately 2.4 million pixels.
Can the screen angle be adjusted?
Yes. The display can be adjusted to better suit compatible dashboard layouts and viewing positions.
Will it fit a Double DIN dashboard?
The main chassis is Single DIN. Installation into a larger dashboard opening may require an appropriate vehicle-specific mounting kit.
Do I need an ISO wiring harness?
If your vehicle does not already use a compatible ISO-standard connection, a vehicle-specific ISO adapter harness will be required.
Does it support Wireless CarPlay and Android Auto?
Yes. Both wired and wireless Apple CarPlay and Android Auto are supported.
Can GPS work without internet?
Yes. Built-in GPS supports compatible offline navigation maps.
Do I need a SIM card?
Only if you want to use the stereo's built-in 4G LTE mobile data connection. CarPlay, Android Auto, Bluetooth, radio, USB playback and GPS reception do not require a SIM card.
Will my steering wheel controls work?
Compatible wired analogue controls are supported. Digital or CANBUS-based systems may require a vehicle-specific adapter.
Does it support wireless screen mirroring?
Yes. Wireless screen mirroring is supported with compatible iPhone and Android devices. DRM restrictions may apply to some apps.
Can I connect an external amplifier or subwoofer?
Yes. The SD1X6S2 provides 5-channel preamp outputs plus optical and coaxial digital audio outputs for compatible aftermarket systems.
Big-Screen Experience for a Single DIN Dashboard
The Eonon SD1X6S2 Android Single DIN car stereo combines a compact 178 × 50mm 1-DIN chassis with a large 10.95" 2000×1200 QLED display, Qualcomm 6nm performance, Wireless Apple CarPlay and Android Auto, built-in GPS, 4G LTE, Wi-Fi 6 and ROHM DSP audio control.
For compatible Single DIN vehicles, it offers a practical way to gain a much larger navigation and multimedia interface without requiring a traditional Double DIN radio opening.
Before purchasing, check the 178 × 50mm installation opening, original wiring and available space for the approximately 263 × 170mm display.
⭐ Technical Specifications
- Operation system: Android 13
- OTA Firmware Update: Yes
- CPU: Octa-core (Qualcomm QCM6225-AD)
- RAM: 6GB
- Storage: 64GB
- Display: 10.95" QLED
- Resolution: 2K: 2000*1200
- Operating voltage: DC12V
- CarPlay: Wired & Wireless
- Android Auto: Wired & Wireless
- Physical button/knob: No
- Split-screen multitasking: Yes
- Adjustable viewing angle: Yes
- Screen mirroring: Yes
- 1s fast boot: Yes
- Steering wheel controls: Wired (support analog steering wheel control signal)
- Key button color: No
- Wi-Fi: Support 2.4G/5G & Wi-Fi 6 ready
- 4G Feature: Built-in 4G module
- Custom boot logo & changeable wallpapers: Yes
- Built-in UI themes: 4
- Built-in DSP: Yes
- Built-in power amplifier: 4-channel audio output and one subwoofer audio output
- EQ bands: 48
- EQ modes: User Standard Rock POP Classical Jazz Gentle CINEMA Hall
- HPF/LPF adjustment: No
- Video input: 1
- Video output: NO
- Audio input: 2
- Audio output: 4 RCA + 1 Optical + 1 Coaxial
- AUX input: NO
- USB input: 3
- RMS power (manufacturer): 25W
- Max amplifier output: 4*48W
- Preamp outputs: 5-channel
- Sub preamp outputs: Yes
- Preamp voltage: 1.8V
