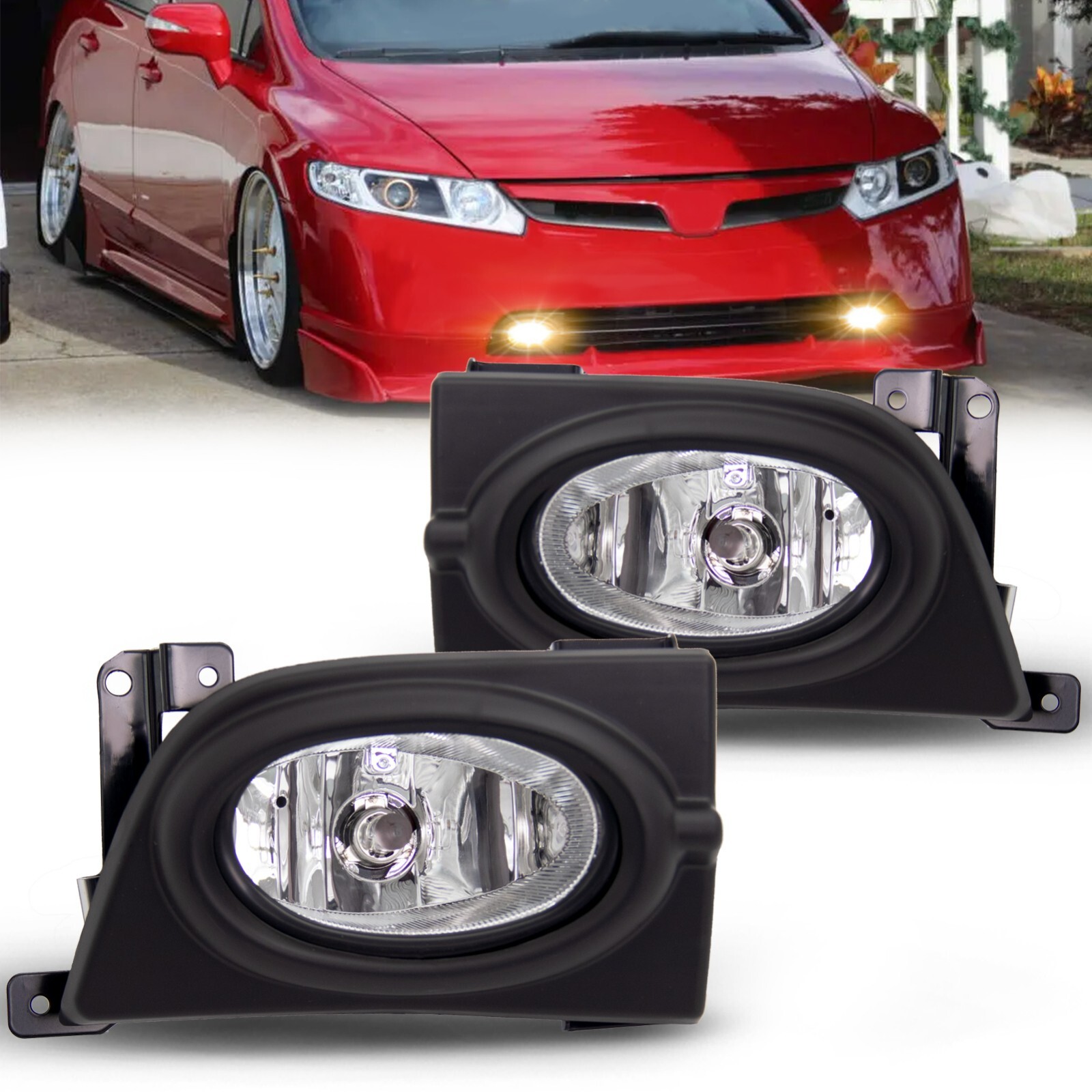

RAPOOSANS Fog Lights for 2006-2008 Honda Civic 4Dr Sedan Fog Lamps Assembly Kit,100% Waterproof Bumper Lamps-1 Set

Product Description

• Lens Material: Glass
• Lens Color: Clear
• Voltage: 12V
• Waterproof：IP67
• Type: Front Fog Lamps
• Bulb Type: H11 12V 55W Halogen Bulbs
• Switch Wiring Harness: Included

RAPOOSANS FOG LIGHTS DETAILS

HIGH QUALITY FOG LIGHTS

Full waterproof,warm and great light output, sharp cut offline.

SAFETY PROVIDER

Provides the perfect balance between beam distance and forward coverage area. Do not blind on-coming traffics.

QUICK AND EASY INSTALLATION

Package includes all necessary mounting hardware.Directly replaces your old fog lights,only working in 10-15 minutes.

*The picture is for reference only, the actual switch and wiring harness kit please refer to the main picture aboveFog Light Wiring Kit Installation Instruction

1. Use right tools for the purpose and size of the work to be done to ensure proper work.
2. Please bind all harnesses together so that they do not move around loosely otherwise the harnesses may break or short circuit, and accidents, electric shocks or fire may occur.
3. When connecting the harnesses or plugs, insert the connectors firmly until they lock securely into place.
4. Disconnect the negative of the battery before installation. Make sure that lamps, air conditioner and other devices are switched off.
5. Open the hood and remove the front bumper if necessary, then install lights to the proper positions.
6. Route the main wiring harness (A) through the engine room to the lamp position and connect with bulb (B). Attach relay to relay box (C) then attach black wire (Negative) of main wiring harness to frame metal parts to create a ground circuit (D). Attach red wire (Positive) of main wiring harness to Positive of battery (E).
7. Route the main wiring harness(A-1) through cut grommet (F) and connect with main switch wiring harness(G). (Some car models may be pre-wired, then find out the correct circuit and plug it together.)
8. Remove the driver's dashboard lower cover if necessary, then find the power line of the parking lamp (Small lamp) (H-1) and connect with the red wire(Positive) of main switch wiring harness(H). Attach the black wire (Negative) of main switch wiring harness to metal frame to create a ground circuit (I). Then connect the switch (J) with switch connector (K) and put the switch to the night position (Usually it's on the dashboard but some car's switch position are near the hand brake.)
9. The lights operate only in the low-beam position. Adjust the light aiming according to your local laws and regulations.
10. If the lights don't turn on, check the fuse ( most car's fuse box is located in driver's dashboard lower cover) and all wire connectors.
11. The light lenses can cloud when the outside temperature is cold; this is normal and should go away in warm weather.
12. Do not touch the bulb. Oily or greasy substances on the bulb can shorten service life.
