Please Note :
Communication is the best way to solve problems.
If you have any problems after purchase, please contact us in time before opening the return .
We will give you a satisfying solution.
Fitment:
For 1971-1990 Chevy Caprice
For 1968-1973 Chevy Chevelle
For CHEVY GM CARS 28" WIDE CORE
For 1973 -77 Chevy Truck (28" Wide x 17" Tall Core)
For Chevy Cars Caprice (fits 28" wide core)
For 68-77 Chevy El Camino
For 68-77 For Chevy Chevelle Malibu
For 1971 1972 Chevy Biscayne
For 67 - 69 Buick Riviera
For 66-77 Olds Cutlass
For CADILLAC OLDSMOBILE GM CARS 28" WIDE CORE
For 1973-1980 K5 Blazer / Blazer
For 72-80 Chevy / GMC G & P-Series Vans
For 70-77 Chevy Monte Carlo
For 73-80 Blazer / Jimmy
For 68-85 GM 28" Core
For 73-80 Chevy C/K Series
For 73-80 Chevy K Series
For 65-74 Cadillac DeVille
For 67 68 69 70 71 72 Buick Skylark
For 71-79 Chevy Impala
For 67-85 Buick Riviera
For 68-73 Pontiac GTO
For 1971 1972 Chevy Brookwood
For Buick Century 1973-1976 350ci 455 ci - 3.8
For 1973 Chevy C15//C20/C30 Pick-Up
For 65-90 Buick LeSabre
For 1971 1972 Chevy Kingswood
For 1974 1975 Pontiac LeMans
For Chevy GMC Trucks Suburban
For the year and models, please check the compatibility.

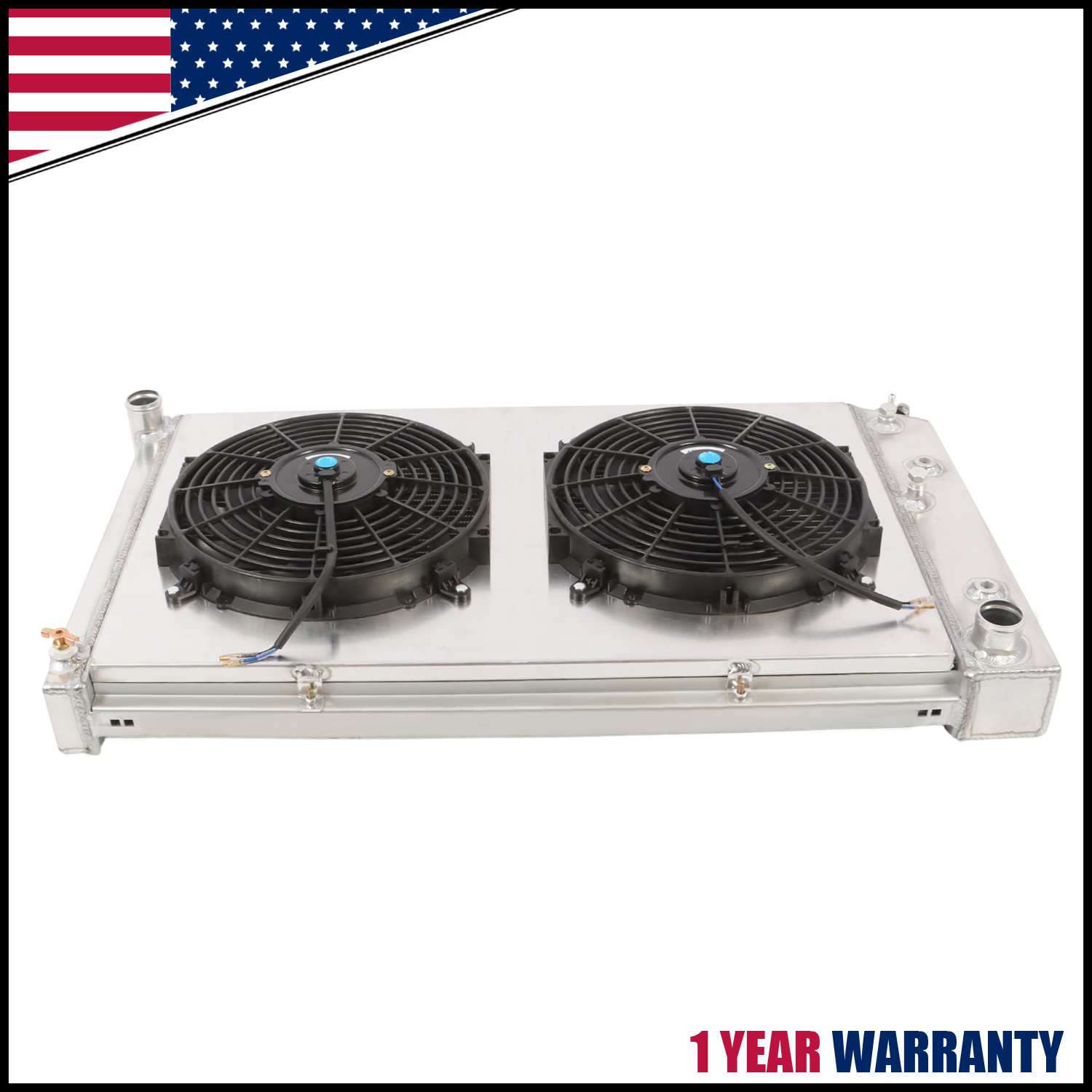

Item Specifications：
Core Size: 17" High x 28 1/4" Wide x 2 1/2" Thick
Overall Size: 18 5/8" High x 33" Wide
Upper Inlet: 1.5" Driver Side
Lower Outlet: 1.5" Passenger Side
Transmission Oil Cooler: Included
Transmission Oil Cooler Fitting Size: 1/2" 20 STRAIGHT THREAD G1/4
New radiator cap include
4 Rows Of Tubes
Surface: Polished
DPI #: 161
Features
Made of high quality Aluminum material for maximum cooling efficiency
High performance Spec. racing design.
Improves cooling by 35 - 45% temp.
Light weight direct bolt-on fitment or replacement.
All New Radiators - 100% leak tested.
Features:
-Ensure exact fit, form and function for an easy drop-in installation;
-Built with high density multi-lowered fins for maximum cooling efficiency;
-Improve Cooling Efficiency;
-100% Leak Tested;
-Built to strict quality control standards;
How to clean radiator:
1. Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake from the tank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.
2. After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.
How to replace the radiator:
1. Disconnect the battery.
2. Drain the radiator fluid into a suitable container.
3. Remove the old radiator:
-Take off any plastic covers around the radiator.
-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
-Disconnect the radiator hoses from the radiator.
-Disconnect the transmission cooling lines from the bottom of the radiator.
-Remove any clamps, brackets, or screws holding the radiator inside its frame.
-Lift the radiator up and out of the car.
4. Install the new radiator:
-Slide the new radiator into place.
-Connect any clamps or brackets that hold the radiator in place.
-Connect the transmission cooling lines carefully.
-Connect the engine cooling hoses to the radiator.
-Replace the fan and fan shroud.
-Reconnect the fan electrical connection.
-Replace the plastic covers.
5. Fill the radiator with fluid.
6. Check your work to make sure that there are no leaks.
(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)
Note: Do please keep children and pets away when replacing the radiator)
Note:
1. Project operation, the vehicle normal temperature 60 to 80 degrees.
2. Add detergent if the tank is too full can take some antifreeze.
