Picture Show
DESCRIPTION

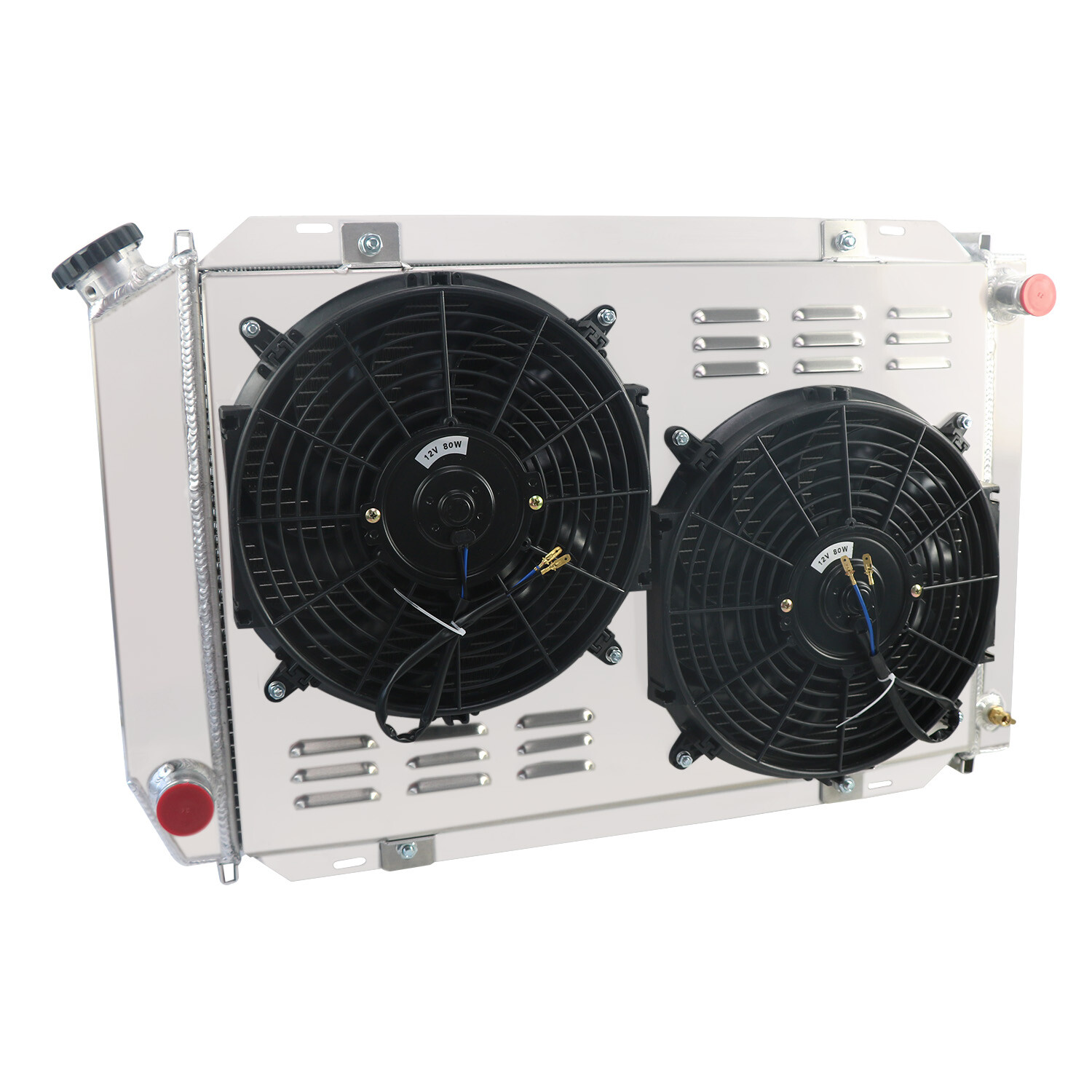

Core size:16 3/4\" high x 24 1/2\" wide x 2 1/2\" Overall Size:19 1/4\" high x 29 1/4\" wide Upper inlet: 1 1/4\" located on passenger side Lower outlet: 1 1/2\" located on driver side OEM Style Brass Petcock Drain.
Only for manual
Vehicle Fitment
1979-1993FordMustang 1980-1987FordThunderbird 1983-1986FordLTD 1981-1982FordGranada 1980-1983FordFairmont 1982-1987LincolnContinental 1984-1992LincolnMarkVII 1980-1986MercuryCapri 1980-1987MercuryCougar 1985MercuryGrandMarquis 1983-1986MercuryMarquis
The New Design fan and theAA5052fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
FANS:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.050”
Thickness (in): 2.500”
Number of Blades: 10 blades
Maximum Fan RPM: 2,250 rpm
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat Kit:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185\'F turn-on temperature, 165\'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
