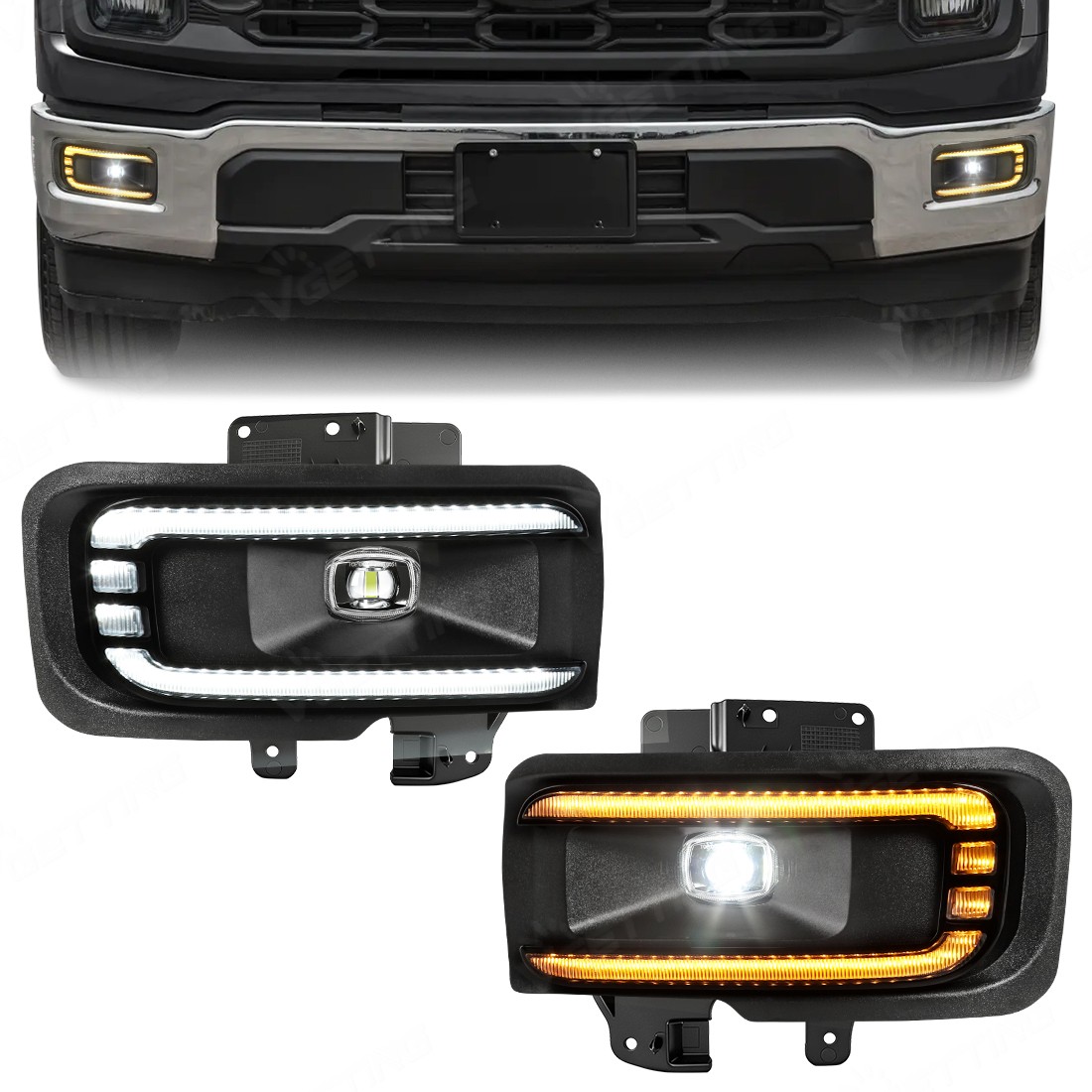

For 2024-2026 Ford F150 STX XL XLT LED DRL Turn Signal & Fog Lights Lamps Kit
Note
If you want to connect the fog lights directly to the original factory fog light harness, an additional9005 to H11 adaptermay be required. This adapter isnot includedin our package.
For easier and more stable installation, we recommend using the fog light wiring harness included with our product.
Title
LED Front Fog Light Kit For 2024-2026 Ford F-150 STX XL XLT White LED Lamps w/ Bezels Wiring Switch
Fitment
Compatible with:
2024-2026 Ford F-150 STX
2024-2026 Ford F-150 XL
2024-2026 Ford F-150 XLT
2024-2026 Ford F-150 Tremor
2024-2026 Ford F-150 Lariat
Not fit King Ranch, Raptor, or Platinum models.
Features
- 6500K White LED Fog Lights:Provides bright, focused front illumination for fog, rain, nighttime, and low-light driving.
- White DRL Function:Built-in white daytime running light adds a clean modern look and improves front visibility during daytime driving.
- Amber Turn Signal Light:Integrated amber turn signal enhances warning visibility and gives the front bumper a more stylish lighting effect.
- Textured Black Bezels:Matches the bumper trim for a rugged OEM-style appearance.
- Complete Installation Kit:Includes fog lights, bezels, brackets, wiring harness, relay, and on/off switch.
Wiring Guide
DRL:Red wire connect to ACC+, Black wire connect to negative-, Yellow wire connect to turn signal+
Package Includes
1 x Left Fog Light Bezel w/ DRL
1 x Right Fog Light Bezel w/ DRL
1 x Left LED Fog Light
1 x Right LED Fog Light
1 x Left Fog Light Bracket
1 x Right Fog Light Bracket
1 x Wiring Harness
1 x On/Off Switch
1 x Relay
Note
Please confirm your vehicle model and trim before purchase.
Professional installation is recommended.
Installation Instructions
Step 1 – Install the Fog Light onto the Mounting Bracket
Align the fog light with the mounting bracket and snap the clips on both sides of the fog light into the bracket. Then secure the fog light to the bracket with the 3 screws.
Step 2 – Attach the Fog Light Bezel to the Bracket
Turn the assembled fog light and mounting bracket over. Align the 6 clips on the fog light bezel with the corresponding 6 mounting positions on the bracket, then press the bezel firmly into place until all clips are fully engaged.
Step 3 – Install the Complete Assembly onto the Vehicle
Position the complete assembly (fog light + mounting bracket + bezel) from behind the bumper and align the bezel with the bumper opening.
Step 4 – Secure the Mounting Bracket
Once the bezel is properly aligned with the bumper opening, align the mounting bracket with the factory mounting points on the vehicle. Secure the bracket with the appropriate screws/bolts.
🔌 Wiring Connection
Red Wire (ACC):
Connect to a circuit that receives power when the ignition is turned on (e.g., fuse box ACC port or radio ACC wire).
Black Wire (Ground):
Connect to a clean, unpainted metal surface on the vehicle chassis.
Yellow Wire (Turn Signal):
Tap into the existing turn signal wire behind the headlight or side indicator.
Important:
Do not attempt to push the fog light bezel through the bumper opening by itself. The fog light, mounting bracket, and bezel should first be assembled together, and then the complete assembly should be installed from behind the bumper.
