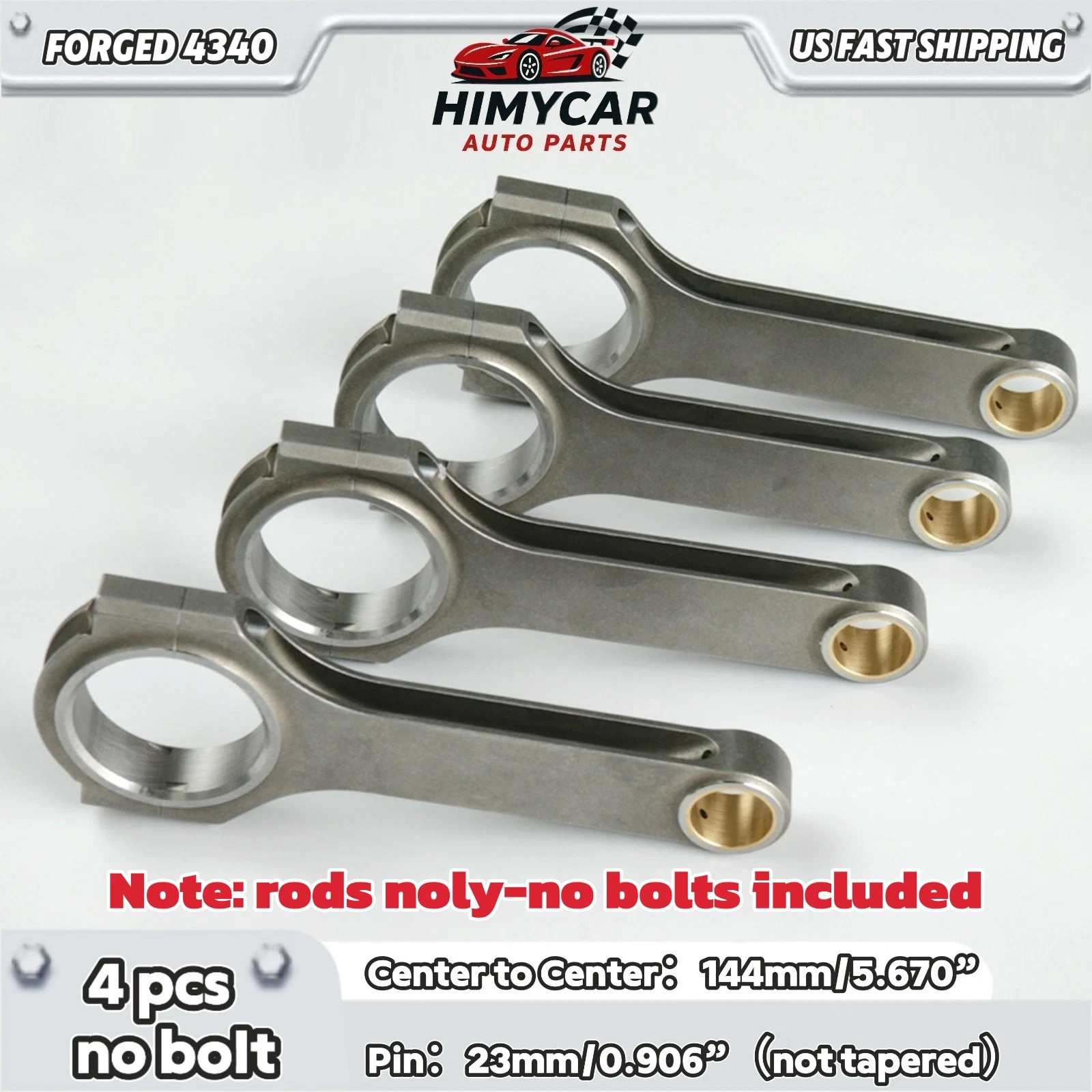

Forged 4340 H-beam Connecting Rods for Audi VW EA888 2.0L TSI 144mm 23mm
Without connecting rod bolt
Always verify engine model, piston type, and dimensions before placing an order.
Fitment:
The compatibility list may not cover all vehicle variations.
If you are unsure,please contact us with your vehicle\'s year,model,and engine code to verify compatibility.
for Audi for VW EA888 2.0L TSI Gen 3 Engine
1.8 R4 16v TSI/TFSI (EA888)：for Audi TT Mk2 8Jfor Audi 8P A3for Audi B7 A4for Audi A4 B8for Audi A5for SEAT Leon Mk2 1Pfor SEAT Altea XLfor Skoda Yetifor Skoda Octavia Mk2 (1Z, Ming Rui)for Skoda Superb Mk2 3Tfor VW Jetta Mk5/Sagitarfor VW Passat B6for VW Passat CC
2.0 R4 16v TSI/TFSI (EA888)：for Audi TT Mk2 (8J)for Audi A3 Cabrioletfor Audi A4 (B8)for Audi A5for Audi Q3 (US Only)for Audi Q5for Audi S3for Skoda Kodiaqfor Skoda Superb Mk2 (3T)for Skoda Octavia RSfor SEAT Exeofor SEAT Leon Cuprafor VW Golf Mk7 GTIfor VW Golf Mk5 GTI (US only)for VW Golf Mk6 GTI (US only)for VW Tiguanfor VW Scirocco GTSfor VW Magotan (Passat)for Volkswagen Phideonfor VW Jetta Mk7 GLI
Dimensions:Center to Center Length: 144mm/5.670\"
Big End Bore Diameter: 50.6mm/1.992\"
Small End Bore Diameter: 23mm/0.906\"(not tapered)
Big End Width: 21.9mm/0.862\"
Small End Width: 21.9mm/0.862\"
Feature：Beam Style: H-beamConnecting Rod Bolt Diameter: 3/8\'\'Approximate Connecting Rod Weight: 572g/pieceAdvertised Horsepower Rating: 600-800HPConnecting Rod Finish: Shot-peened, PolishedPin: Bronze wrist pin bushingsWrist Pin Style: FloatingCap Retention Style: Cap screw
✅ 4340 Aircraft-Grade Forged Steel for maximum strength✅ H-Beam design, CNC machined for precision and consistency✅ Shot-peened and polished to reduce stress risers✅Perfect for high RPM and turbocharged/nitrous applications
Installation Notes:(1)Professional installation is strongly recommended(2)Always torque bolts to the manufacturer’s specifications(3)These connecting rods are designed for high-performance engines using 4032 or 2618 forged pistons.They may not be compatible with OEM cast pistons. If your engine is still using original factory pistons, please purchase OEM connecting rods instead.
