Fits front, left & right on the following Honda ATVs: 2014-2019 Foreman 500, 2015-2019 Rubicon 500. Features stronger than OEM chromoly forged steel axle bars. Greased with a moly based grease to provide superior joint lubrication. Fitted with neoprene CV boots for added wear and puncture resistance. inner splines: 20 (both), outer splines: 26 (both), Compressed length: left - 493 mm, right - 507 mm. Set includes 2 axles.
- Our store
- About Us
- Contact Us
Free Shipping - Same Day If Ordered Before 3 EST

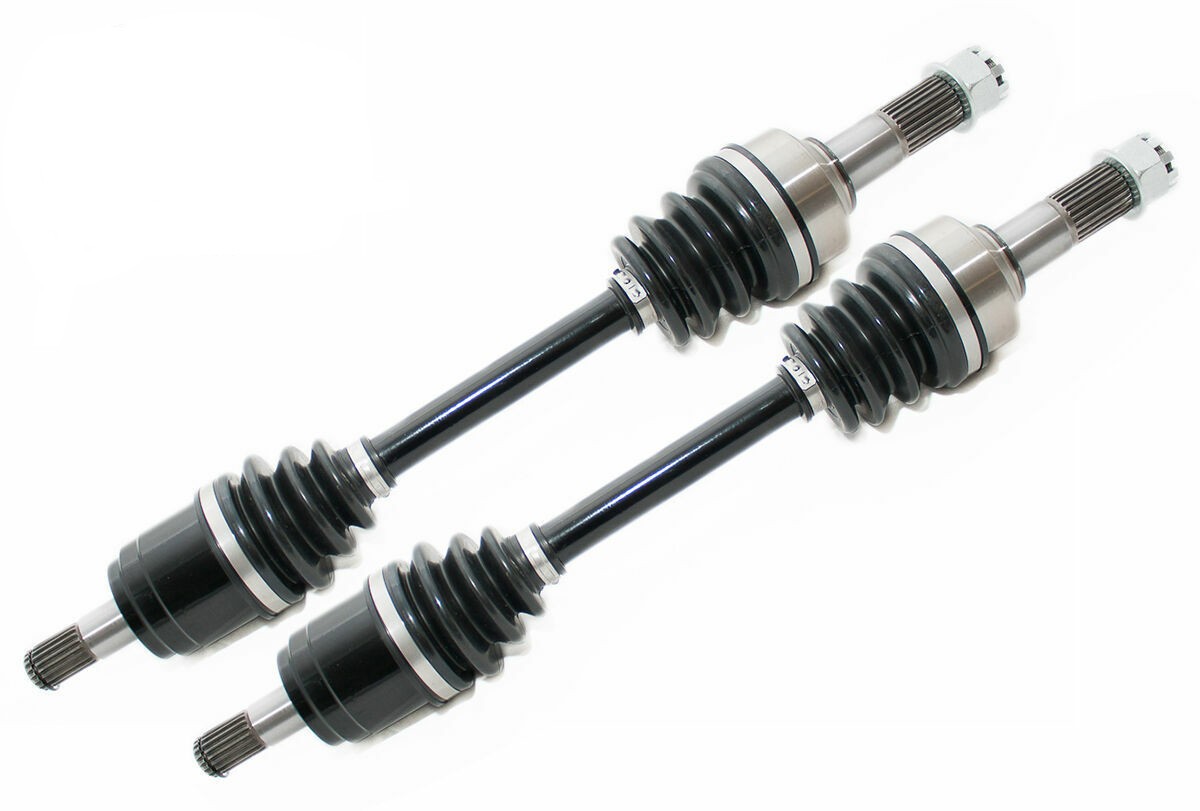

This is a pair of new, fully assembled, CV axles for a Honda ATV.
They fit front, left & right on the following models:
2014-2019 ... Foreman 500
2015-2019 ... Rubicon 500
*Axles made as an OE replacement, and is not intended for lifted/ modified vehicles
Product features:
- Stronger than OEM chromoly forged steel axle bar
- Greased with a moly based grease to provide superior joint lubrication
- Fitted with neoprene CV boots for added wear & puncture resistance
- inobard CV joint spline count: 20 (both)
- outboard CV joint spline count: 26 (both)
- Compressed overall axle length: left - 493 mm, 507 mm
