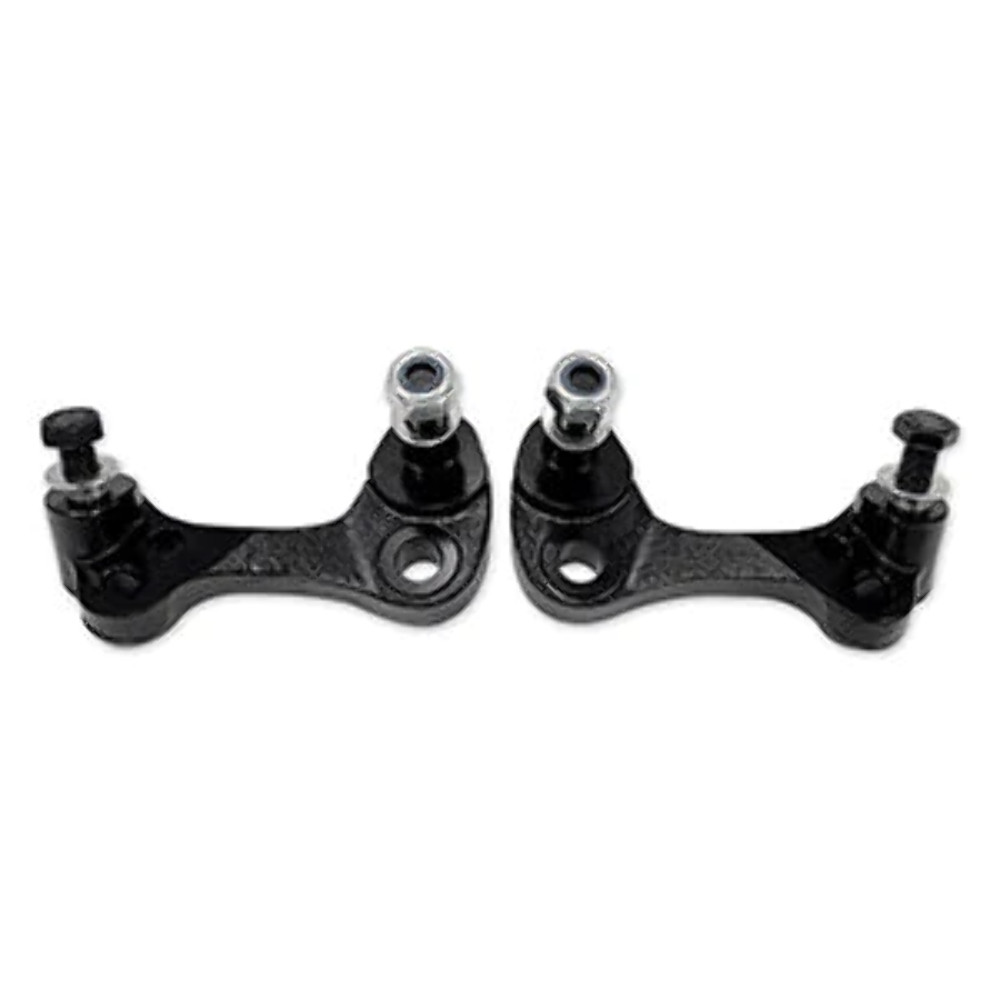

GKTECH V2 S13 240sx 40mm roll center correction kitThe V2 GKTECH roll center correction kit is now made from 1030 forged steel and provides 1.57'' (40mm) of roll center correction,1.57'' (40mm) of bump steer correction and also re-positions the steering arm to increase steering lock. With two different pick up points for the tie rod, this now offers two settings, allowing for more aggressive steering response and less ackerman which will provide faster steering! The roll centre correction kit bolts up to the bottom of your standard knuckle and can be removed with no ramifications at all. Circa 60+ degrees of lock is achievable without offset rack spacers once the factory LCA lock stop is removed but if you're running lots of camber or caster using our offset rack spacers is a good idea to avoid steering bind. With supporting modifications these can see similar lock to V4 drop knuckles! With the introduction of our NEW price, they are by far the cheapest way of getting both roll centre correction and lock! They can be seen here in action on one of our daily driven S13's. This car featured standard LCA's and OEM lock stop, slip in rack spacers and the RCCK:NOTE: These will increase camber as it pushes the bottom of the wheel out 0.98'' (25mm) so best to only use with adjustable camber tops. NOTE#2: If you are running S14/S15 knuckles in your car then you will need the S14/S15 RC correction kit as these are knuckle specificWant to see these in action? The following car has our RCCK, slip in rack spacers and high clearance castor arms! All other parts OEM. GKTECH V2 S13 240sx 40mm roll center correction kit
The V2 GKTECH roll center correction kit is now made from 1030 forged steel and provides 1.57'' (40mm) of roll center correction,1.57'' (40mm) of bump steer correction and also re-positions the steering arm to increase steering lock. With two different pick up points for the tie rod, this now offers two settings, allowing for more aggressive steering response and less ackerman which will provide faster steering! The roll centre correction kit bolts up to the bottom of your standard knuckle and can be removed with no ramifications at all. Circa 60+ degrees of lock is achievable without offset rack spacers once the factory LCA lock stop is removed but if you're running lots of camber or caster using our offset rack spacers is a good idea to avoid steering bind. With supporting modifications these can see similar lock to V4 drop knuckles! With the introduction of our NEW price, they are by far the cheapest way of getting both roll centre correction and lock! They can be seen here in action on one of our daily driven S13's. This car featured standard LCA's and OEM lock stop, slip in rack spacers and the RCCK:NOTE: These will increase camber as it pushes the bottom of the wheel out 0.98'' (25mm) so best to only use with adjustable camber tops. NOTE#2: If you are running S14/S15 knuckles in your car then you will need the S14/S15 RC correction kit as these are knuckle specificWant to see these in action?
The following car has our RCCK, slip in rack spacers and high clearance castor arms! All other parts OEM.
× × × × FAQs Are camber tops essential? What if I have coilovers without camber adjustment?Camber tops are not essential however without them you will be running quite a bit of negative camber (-3 or more depending on the height of your car). Does installing this kit require a wheel alignment?Yes, it alters both your camber and toe so a wheel alignment will be required after installation. Can this kit be used without modifying steering parts (no extenders)?Yes it can however if you are experiencing steering bind from running lots of camber and/or caster then our offset rack spacers will help to eliminate steering bind Are there any cons of your bolt on RC Correction kit Vs the front knuckles?The only disadvantage to the bolt on RC correction kit is that it pushes the bottom of the ball joint out 30mm. This increases the scrub radius of your wheel 30mm (just like a bolt on wheel spacer or lower offset rim would do). If you are already running low offset rims (less than +20mm or wider than 10 inches) then you may have clearance issues. Which tie rod position does what?The tie rod position that is furtherest from the balljoint is the 'Grip Position' it offers 40mm bump steer correction and 40mm roll center correction, it still increases steering lock just not as much as the other position. The tie rod position that is closest to the balljoint, still offers 40mm of bump steer correction and 40mm of roll center correction as the other position does, however is the 'Drift Position' and it offers faster steering, low ackerman and has the maximum amount of lock available with this kit. Do you carry spare parts for this product? Yes we carry the following spare parts for this product;S13 240Sx Roll Center Correction Kit Balljoint Shank - RC Conversion kit tie rod shank to bolt conversion - Compatibility NISSAN S13 KA24 HATCH
S13 KA24 240SX
S13 SR20 240SX HATCH
S13 SR20 240SX/SILVIA BUY NOW You might also like GKTECH S chassis to Z33 Banjo to Banjo braided clutch line OEM replacement GKTECH S/R Chassis OEM Rear Knuckle Spherical Bushes - 30.5mm (PAIR) GKTECH S14A 200SX (Kouki) Radiator Cooling Side Panels (Pair) GKTECH Z33 350z/G35 Skyline Solid transmission mount -Stiffen up your drivetrain Contact
