- AUTHORIZED DEALER
- AUTHENTICPART
Part Brand: Garrett
Part Number: 856800-5005S
Vehicle Fitment
- Universal performance turbocharger — not specific to any particular vehicle
- Ideal for custom turbo setups and engine upgrades (approx.

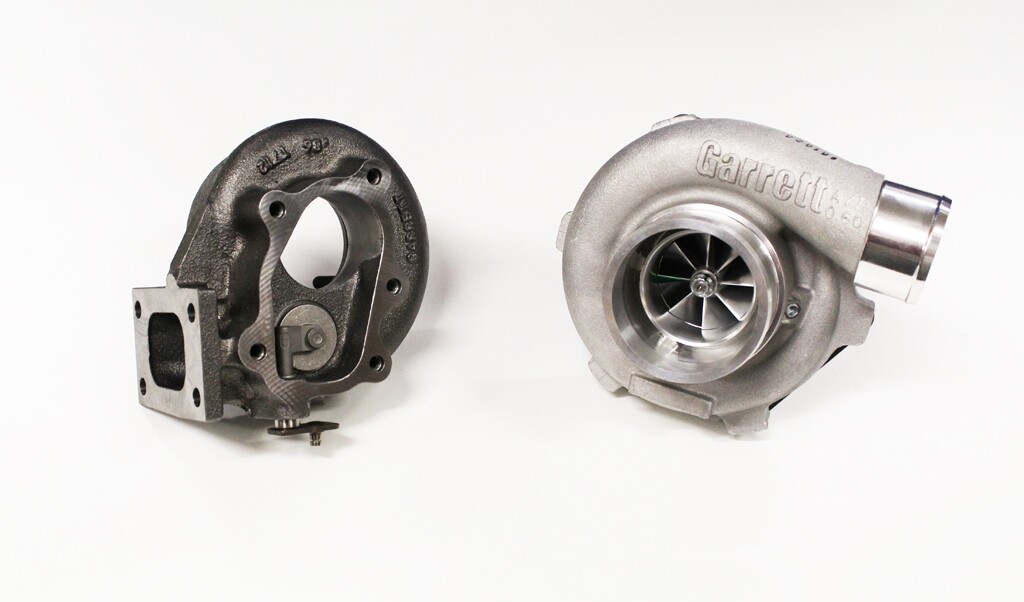

- Garrett GTX2860R Gen II turbocharger assembly
- Gen II compressor aerodynamics for improved efficiency and flow
- Ported shroud compressor design to reduce surge and enhance response
- Dual ceramic ball bearings for rapid spool and durability
- Water‑ and oil‑cooled center housing for thermal stability
- Internal wastegate included for controlled boost regulation
- T25 inlet with 5‑bolt turbine flange for manifold compatibility
- Standard rotation
- Brand: Garrett
- Part Number: 856800‑5005S
- Turbo Model: GTX2860R Gen II
- Supported Power Range: ~200–475 HP
- Recommended Displacement: ~1.4 L–2.5 L
- Compressor Inducer: ~46 mm
- Compressor Exducer: ~60 mm
- Compressor Trim: ~58
- Compressor A/R: ~0.60
- Compressor Inlet Size: ~3.0″
- Compressor Outlet Size: ~2.0″
- Turbine Wheel Inducer: ~54 mm
- Turbine Wheel Exducer: ~47 mm
- Turbine Trim: ~76
- Turbine Housing A/R: ~0.64 (T25 inlet / 5‑bolt outlet)
- Bearing Type: Dual ceramic ball bearings
- Cooling: Oil & water‑cooled center housing
Included Components
- 1x Garrett GTX2860R Gen II turbocharger assembly
- Built‑in internal wastegate and actuator
- Note: Mounting hardware, oil/coolant lines, gaskets, and hoses not included
Product Description
The Garrett 856800‑5005S GTX2860R Gen II Turbocharger is a performance‑focused forced‑induction component suited for a wide range of custom applications where improved airflow and responsiveness are desired. As part of Garrett’s Gen II GTX family, this turbocharger features updated compressor aerodynamics and a ported shroud design that helps reduce compressor surge while increasing airflow efficiency. The dual ceramic ball bearing center housing with water and oil cooling supports rapid spool‑up and enhanced reliability under repeated high‑boost conditions.
With a **0.64 A/R** turbine housing and a **T25 5‑bolt** inlet flange, this turbocharger provides broad compatibility with aftermarket manifolds and exhaust layouts common in performance builds. The included internal wastegate assists in controlled boost regulation. Because this is a **universal turbocharger assembly** — and not engineered as a direct vehicle‑specific part — it is ideal for custom installs on engines often in the **1.4 L to 2.5 L** displacement range with a typical supported range of **~200–475 HP** when paired with supporting upgrades and proper tuning.
*Parts are for USA spec vehicles, please contact us to verify fitment on JDM & international models.
