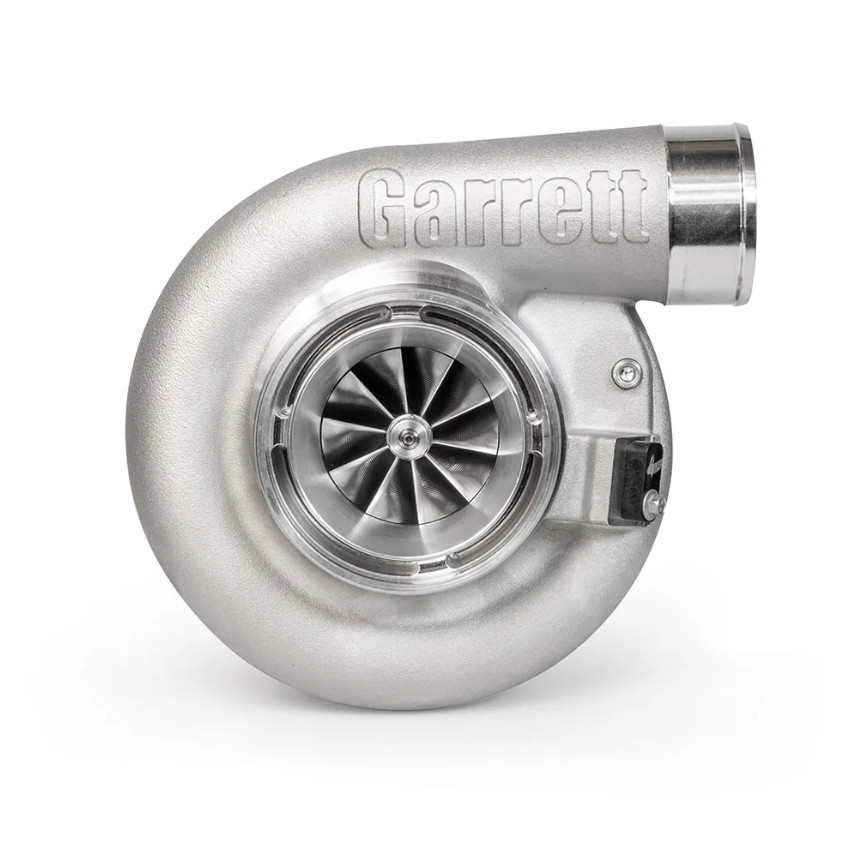

Garrett G40-1150 Supercore Standard Rotation 71mm Comp Ind For G-Series
DESCRIPTION
Garrett G-Series Turbochargers Feature The Latest Innovations In Turbocharger Technology. Our Highest Flowing, Highest Efficiency Compressor And Turbine Aerodynamics To Date. Countless Engineering Hours Have Been Spent To Create The Perfect Blend Of Efficiency And Performance In A Compact Package.
Maximum Allowable Turbocharger Speed
125KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.FEATURES
- G-Series Compressor Aerodynamics For Maximum HP- New Turbine Aero Provides Higher Flow And Efficiency- 71MM Compressor Wheel Inducer- 70MM Turbine Wheel Exducer- 78% Maximum Compressor Efficiency- 76% Maximum Turbine Efficiency- Lightweight Aluminum Back Plate- High Efficiency Ceramic Ball Bearing Cartridge- Water Fittings Included- Fully Machined Speed Sensor And Pressure Ports
SPECS
Engine Characteristics
Min HP: 500Max HP: 1150Min Displacement (L): 2.0Max Displacement (L): 6.0
Compressor Wheel Specs
Compressor Exducer (mm): 88Compressor Wheel Mat: Forged Fully MachinedCompressor A/R: 0.80
Turbine Wheel Specs
Turbine Inducer (mm): 77Turbine Exducer (mm): 70Turbine Trim: 84Turbine Wheel Mat: Inconel
Turbochargers
Product Line: G-SeriesFrame Size: 40Rotation: StandardCooling: Oil & Water CooledWastegate: ExternalBearing: Ceramic Dual Ball Bearing
