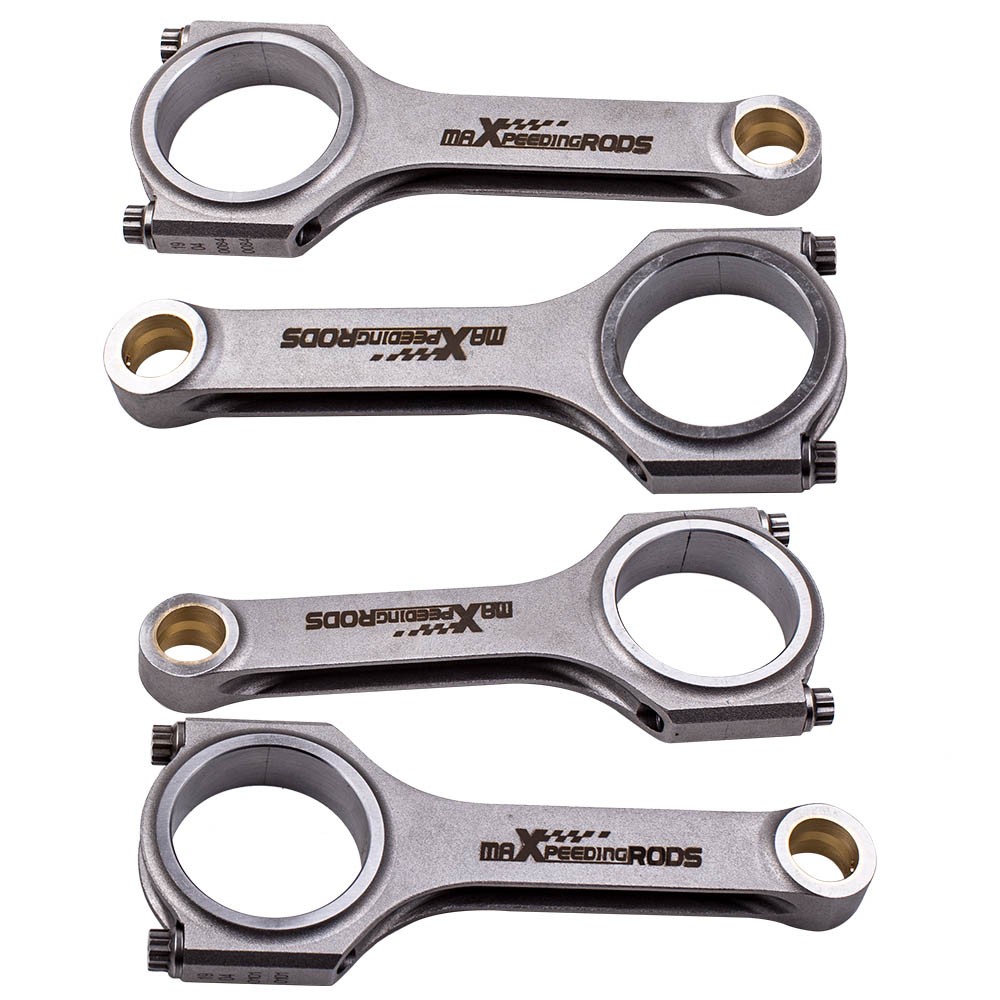

H-beam Steel Connecting Rods fit VW Passat Golf Gti 1.8T 16V 20V 19mm ARP Bolts
All modifications must be installed by licensed mechanics and in compliance with your local modification
ARP Bolts
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
Note
*TaperedPin End Bore Diameter 19.00mm/0.748in
*Big end 19.9mm
Application
For Audi / VW EA111 1.4L TFSI & 1.8T 20V & 2.0L 16V/20V For 1.8T 20V AGU, AUM, AWP, BSE, BFB For 2.0L 16V/20V AEB, ALT, AWA, BPY For 1.4L TFSI CAXA, CTHA, CPTA Dimension
Connecting Rod Length Center to Center 144.00mm/5.670in Approximate Connecting Rod Weight 484g Big End Bore Diameter 50.60mm/1.992in Pin End Bore Diameter 19.00mm/0.748in Big End Width 19.00mm/0.748in Small End Width 19.00mm/0.748in Specification
Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16\"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 7000rpm
Packaging
Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
