HELLA 98091170 2XD 980 911-702 Blue LED 360 Multi-Flash Signal Lamp NOS For Sale - New and Used

Genuine HELLA 98091170 / 2XD 980 911-702 LED 360° Multi-Flash Signal Warning Lamp – Blue

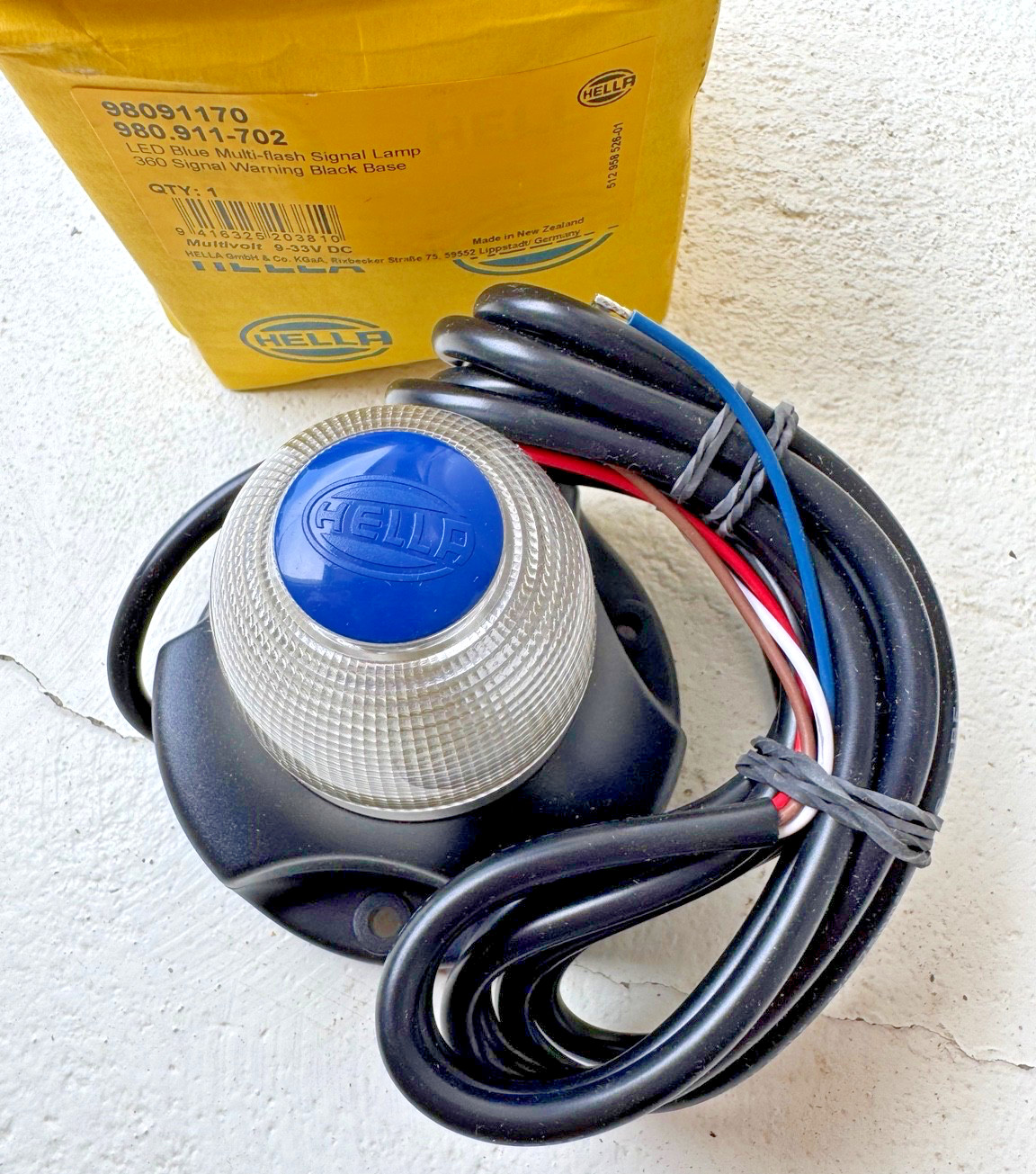

New old stock from warehouse surplus inventory. Never installed or placed into service. Supplied in the original HELLA box as shown.

This is HELLA\'s heavy-duty360° LED Multi-Flash Signal Lampwith a blue LED signal. It operates on9–33V DC Multivolt powerand incorporates multiple programmable flashing modes for marine, industrial, commercial and equipment warning/signal HELLA

Legacy Part Number:98091170

Current/Global Part Number:2XD 980 911-702

Box designation:980.911-702

Lamp type: LED 360° Multi-Flash Signal / Warning Lamp

Signal color:Blue

Operating voltage:9–33V DC Multivolt

Light source: LED

Flash patterns:10 programmable modes

Power consumption:Less than 5W

Mounting: Upright surface mount / three-point mounting

Cable: Pre-wired2.5 m (approx. 8.2 ft)multicore Heavy-duty Grilamid

Reverse-polarity protection

Voltage-spike protection

Can be synchronized with compatible lamps for alternating or simultaneous flashing

Approx. lamp dimensions:90 mm diameter × 83 mm high

ECE-R10 EMC compliance

HELLA specifies the lamp as IP67/completely sealed and rates it at less than 5W. The manufacturer also specifies spike protection up to +500V for this family. The wiring is also well documented:white = negative, red = ON positive, blue = flash, brown = synchronization. HELLA specifies a maximum 5A fuse.

Please note:This listing is for theBLUEwarning/signal version. Buyer is responsible for confirming that blue warning-light use is legal and appropriate for the intended vehicle, vessel, equipment and jurisdiction.

Packaging:Original HELLA packaging has cosmetic shelf/storage wear and handwritten warehouse markings. This does not indicate installation or use.

---
