Overview / Description

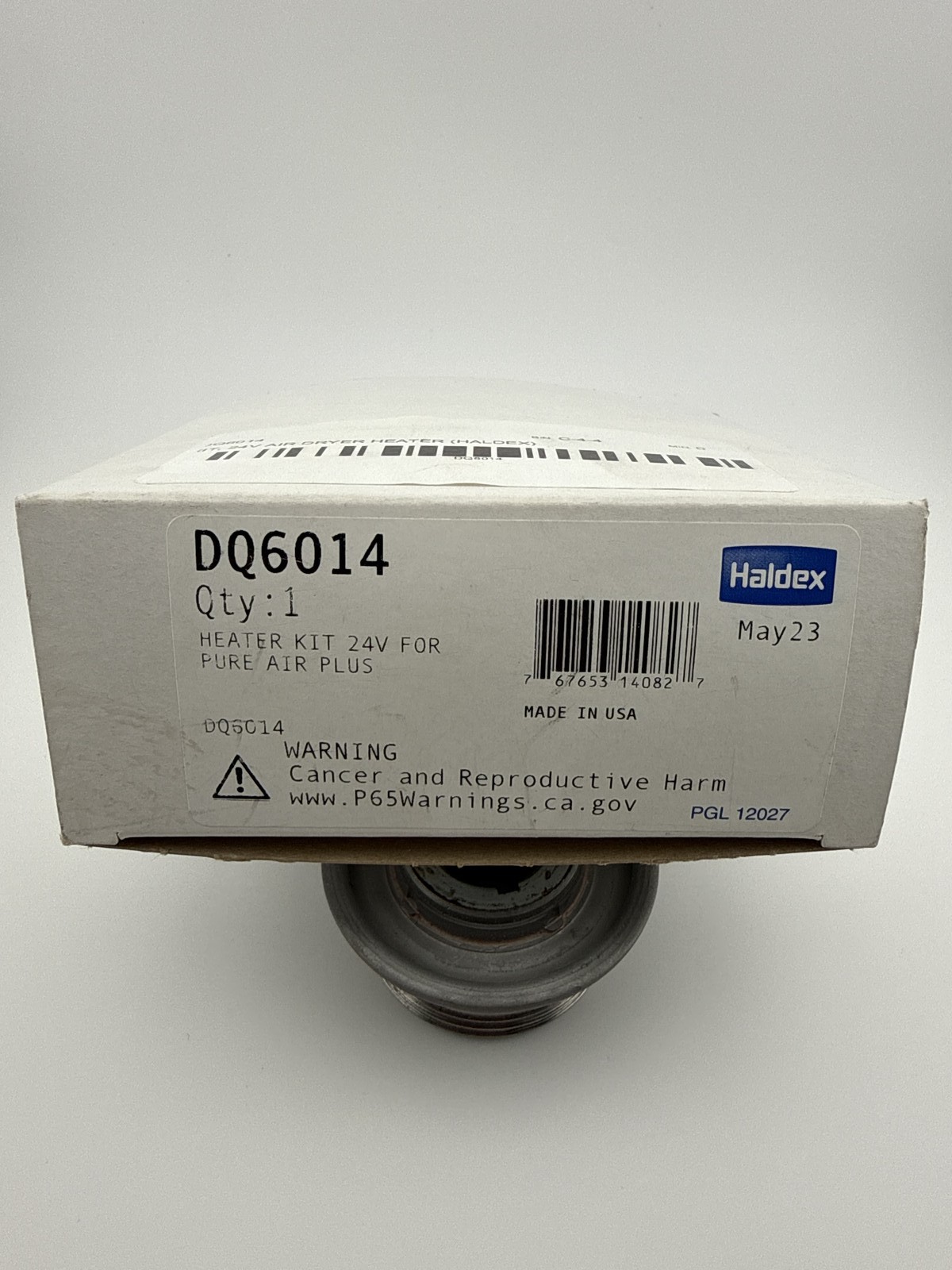

Haldex DQ6014 is a 24 Volt Heater Kit for Haldex / Midland Pure Air Plus™ and PURest™ air dryers. The kit restores the thermostatically controlled heater circuit at the air dryer purge valve, preventing moisture and condensate from freezing in the purge valve and discharge area during cold-weather operation. Maintaining heater function helps the air dryer purge correctly so the vehicle air brake system stays dry and protected against ice blockage and corrosion.
This is the version for air dryers date coded after 8/97 and includes heater 102655DT. The companion 24V kit for dryers date coded prior to 9/97 is DQ6012 (heater 102655FF); the 12 Volt equivalent kit is DQ6013.
Key Features
- 24 Volt heater kit for Haldex / Midland Pure Air Plus™ and PURest™ air dryers
- Includes thermostatically controlled heater element 102655DT
- Thermostat cycles the heater automatically to help prevent purge valve freeze-up in cold conditions
- Correct kit for air dryers date coded after 8/97
- Genuine Haldex / Midland service kit content
- Supports on-vehicle service of the dryer heater circuit where clearance permits
- Helps maintain proper air dryer purge and protects the air brake system from moisture and ice
- VMRS coded 013-010-353 (air dryer heater / thermostat service item)
Applications / Compatibility
- Haldex / Midland Pure Air Plus™ air dryers — 24 Volt systems, dryers date coded after 8/97
- Haldex / Midland PURest™ air dryers — 24 Volt systems, dryers date coded after 8/97
- Heavy-duty trucks, tractors, trailers, buses, vocational, off-highway and military 24V air brake equipment fitted with the above Haldex / Midland air dryers
- Also catalogued by military vehicle parts suppliers as the 24V air dryer heater repair kit for vehicles equipped with Midland / Haldex air dryers date coded after 8-97
- Vehicle model year fitment: Not Available — fitment is determined by air dryer model, system voltage and dryer date code rather than vehicle model year
Cross-References / Part Interchanges
Verified Direct Replacement
- Haldex — DQ6014
- Midland — DQ6014
- Haldex / Midland (heater element included in kit) — 102655DT
Distributor / Supplier Numbers
- TruckPro / CCCParts — MDDQ6014
- Wheeler Fleet — 530413
- VMRS — 013-010-353
Related Kits — Not Interchangeable (verify voltage and dryer date code)
- Haldex — DQ6012 (24V, dryers date coded prior to 9/97, includes heater 102655FF)
- Haldex — DQ6013 (12V heater kit for Pure Air Plus™ / PURest™)
Supersession
Aftermarket Equivalent
Technical Data / Specifications Product TypeAir Dryer Heater Kit (heater / thermostat service kit) Voltage24 Volt Heater Element Included102655DT Fits Air Dryer ModelsHaldex / Midland Pure Air Plus™, PURest™ Date Code CoverageAir dryers date coded after 8/97 Control TypeThermostatically controlled, automatic cycling Wattage / Current DrawNot Available Thread / Port SizeNot Available MountingInstalls at air dryer purge valve / end cover area Operating PressureNot Available Operating Temperature RangeNot Available MaterialNot Available Catalog Weight0.35 lb (distributor catalog data); 1 lb listed by another supplier Catalog Package Dimensions12.001 in x 12.001 in x 1.02 in (distributor catalog data) Freight Class70 Warranty Distance (catalog data)100,000 StandardsNot Available Identifiers and Additional Information ManufacturerHaldex (Midland) Manufacturer Part NumberDQ6014 Calfrac SKUDQ6014 VMRS Code013-010-353 (013010353) VMRS DescriptionSystem 013 Brakes, Air Dryer group — heater / thermostat component UPC / GTIN00767653140827 (GTIN-13 767653140827) OEM NumbersDQ6014 (Haldex / Midland OEM service kit) Alternate Numbers102655DT, MDDQ6014, 530413 Superseded NumbersNot Available Country of OriginUnited States Product LineHaldex Pure Air Plus™ / PURest™ Heater Kits Prop 65WARNING: Cancer and Reproductive Harm — P65Warnings.ca.gov Buyer Note
Please compare the part number on your existing component to the part number shown above before purchasing. Verify your air dryer model, system voltage (12V versus 24V) and the dryer production date code, because DQ6014 covers dryers date coded after 8/97 while DQ6012 covers dryers date coded prior to 9/97. Independently confirm fitment, dimensions, electrical connector style, mounting and clearance against your equipment, VIN or serial number where relevant. Contact us with your air dryer model and date code if you need help confirming the correct kit.
Condition
All items sold by our store are new, unused, and have been stored indoors in a controlled warehouse environment. The majority of our parts are genuine OEM components sourced from surplus inventory and have never been installed or placed into service.
Please note that packaging condition may vary due to warehouse storage, handling, age, or inventory consolidation. Original manufacturer\'s packaging may show signs of wear such as scuffs, tears, labels, markings, tape residue, dust, or discoloration. In some cases, items may be repackaged for storage or shipping purposes.
While the external packaging may not be in perfect condition, the part itself remains new and unused unless otherwise stated in the listing. Customers should review all listing photos carefully, as the item shown is representative of the actual product being sold. If you have any questions regarding item condition, packaging, compatibility, or specifications, please contact us prior to purchase.
