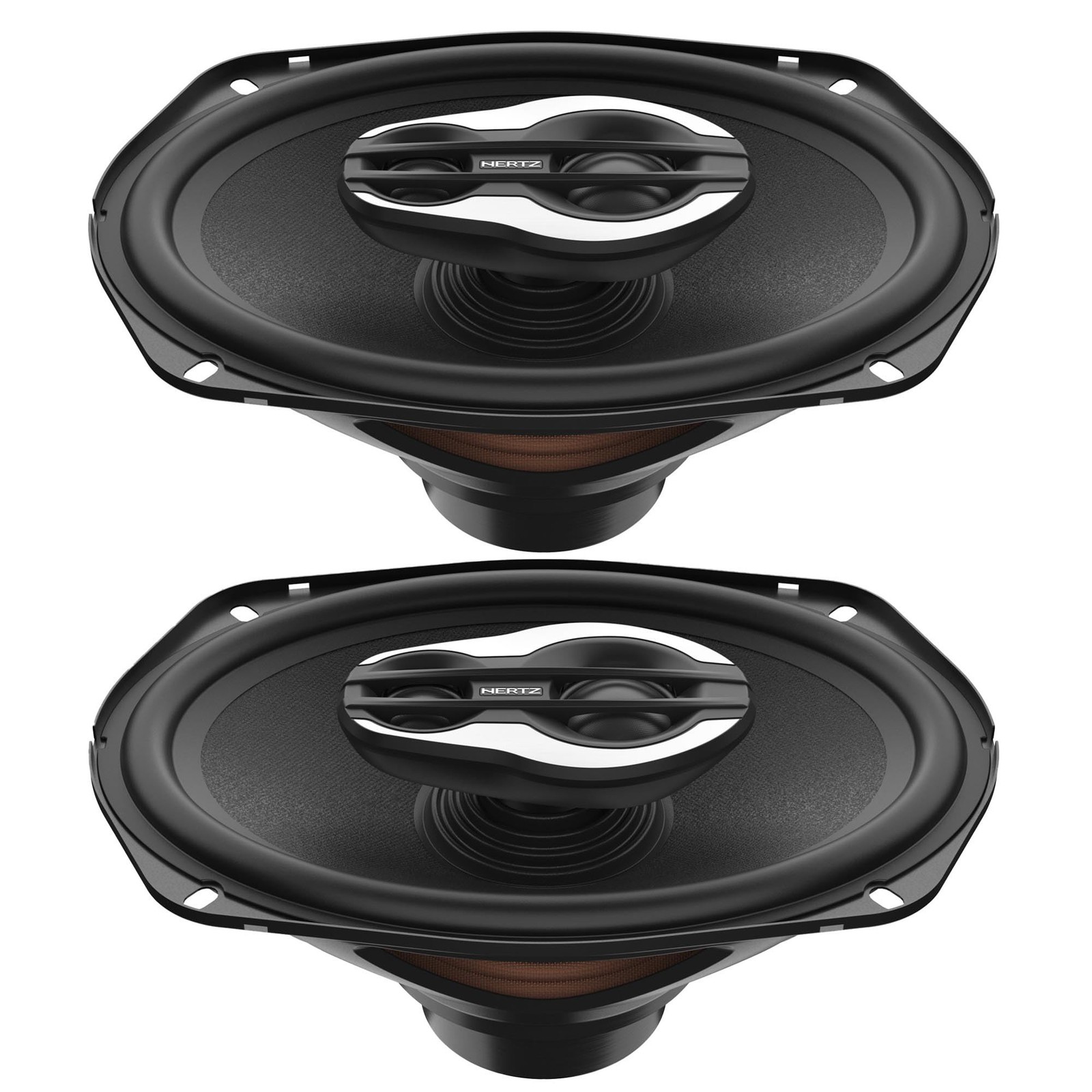

Hertz SX 690 H NEO is a 6x9-inch SPL coaxial speaker set engineered as a drop-in bag speaker solution for 2024 Harley applications. It combines a high-output oval woofer with a dedicated high-frequency assembly to deliver high SPL output in space- and weather-exposed motorcycle installs.
Power handling is rated at 130W continuous / 260W peak with a 4-ohm load, and the design focuses on durability and output: a nature-proof pressed-paper cone with water/humidity resistance and anti-UV treatment, plus compact Neodymium N38 H motor structures for high performance in limited mounting depth.
Key Performance Features
- SPL coaxial architecture for high-output motorcycle/bag installs
- Hi-SPL Mid-Hi unit with 1.4\" dome tweeter + 1\" dome super tweeter
- Resettable solid-state tweeter protection circuit
- Nature-proof pressed-paper cone with water/humidity resistance and anti-UV treatments
- Double-layer copper voice coil wound on a polyimide former for high power handling
- Double faston terminals for daisy-chaining and common motorcycle connection compatibility
- Special Neodymium N38 H motor units for compact size and high performance
Power Handling & Load
- Continuous (RMS): 130W
- Peak: 260W
- Impedance: 4 ohm
Installation Notes
- Designed as a coaxial for 2024 Harley bag speaker applications
- Weather-focused materials and treatments support outdoor motorcycle use
Technical Specifications
- Brand: Hertz
- Series / Family: SPL Show Speakers
- Model: SX 690 H NEO
- Component: SPL Coaxial
- Size: 6 x 9 in.
- Power Handling (Continuous): 130W
- Power Handling (Peak): 260W
- Impedance: 4 ohm
- Frequency Response: 65 Hz – 24 kHz
- Sensitivity (SPL): 94 dB
- Tweeter Diaphragm: 29 mm (1.14 in.)
- Woofer Voice Coil Diameter: 38 mm (1.5 in.)
- Tweeter Voice Coil Diameter: 25 mm (1 in.)
- Woofer Magnet: Special Neodymium N38 H
- Tweeter Magnet: Special Neodymium N38 H
- Cone: Water repellent pressed paper
- Dome: Tetolon
- Weight (each speaker): 1.69 kg (3.73 lb)
- Fs: 65 Hz
- Xmax: 5.5 mm
What’s Included
- (2) Hertz SX 690 H NEO speakers (pair)
Why Buy From MCOR Automotive
- Authorized Hertz retailer
- Motorcycle + high-output system matching support
- Fast fulfillment with knowledgeable install-level guidance
Physical SpecsA237,5 mm9.35 in.B225 mm8.86 in.C93 mm3.66 in.D85 mm3.35 in.E163 mm6.42 in.F154 mm6.06 in.Frequency response
