The Humminbird HELIX 7 CHIRP MEGA SI GPS G3 is a 7-inchfishfinder, chartplotter, and sonar combo featuring high-resolution imaging andbuilt-in GPS mapping.
• Display: 7-inch ultra-wide color display with highbrightness and split-screen capabilities.
• MEGA Side Imaging (MSI) & MEGA Down Imaging (MDI):Crystal-clear, photo-like views of structure, stumps, cover, and fish to thesides and directly beneath the boat.
• Dual Spectrum CHIRP Sonar: Provides detailed targetseparation and a narrow cone option for sharp-shooting individual fish.
• AutoChart Live: Lets you create real-time maps of depth,bottom hardness, and vegetation as you drive.
• Mapping & Compatibility: Built-in Humminbird Basemapand options for Navionics, LakeMaster, and CoastMaster charts.
The Humminbird HELIX 7 CHIRP MEGA SI GPS G3 is a 7-inch,ultra-wide screen fishfinder and chartplotter combination built to give anglersphoto-like clarity of structures and fish below and to the sides of the boat.
Key Features &Specifications
• Display: 7-inch diagonal color TFT display with an 800 x480 resolution ultra-widescreen format.
• MEGA Side Imaging (MSI): Provides a crystal-clear,high-definition view up to 125 feet out to the left and right of your boat.
• MEGA Down Imaging (MDI): Delivers clear, high-resolutionviews directly beneath the boat to spot fish, timber, and bottom composition.
• Dual Spectrum CHIRP Sonar: Offers long-range coverage andhigh-detail target separation with Full, Wide, and Narrow modes.
• Precision GPS & Cartography: Features built-ininternal GPS, the Humminbird Basemap, and compatibility with optional premiumcharts like LakeMaster and Navionics (some packages include Navionics+pre-loaded).
• AutoChart Live: Allows you to create real-time depth,bottom hardness, and vegetation maps of your favorite fishing spots as youdrive your boat.
• Networking & Connectivity (G3N variants): Includesinternal Bluetooth and Ethernet networking capabilities to link with Minn Kotatrolling motors, 360 Imaging, radar, or additional control heads.
• Power Output: 500 Watts (RMS) / 4000 Watts (Peak-to-Peak).

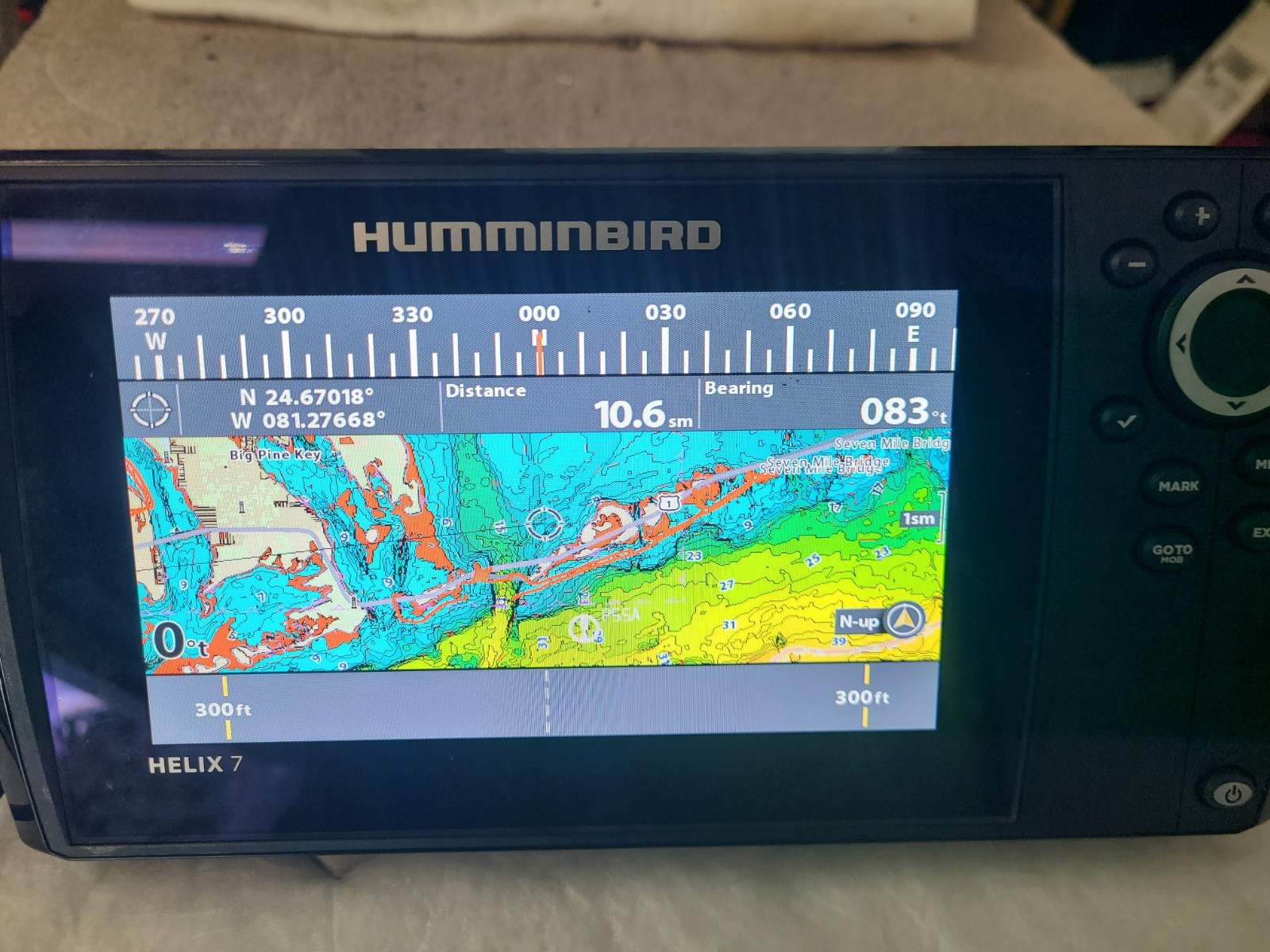

Includes GPS head unit, mounting bracket and screws, powercable, and cover. No transducer. Unit was well cared for and in excellentcondition. Never kept on the boat and removed after each use. Buy with confidence.
