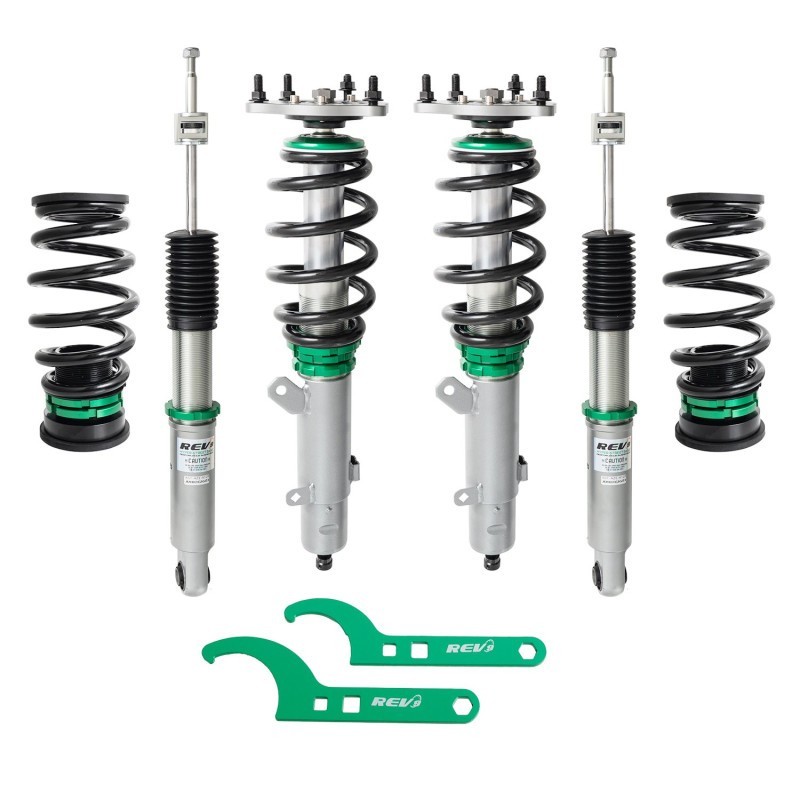

For Honda CR-V (RS) 2023-26 Hyper-Street 3 Coilover Kit w/ Inverted Shocks
SKU: RST-AZE-X129_2
Hyper-Street 3 Coil-over Suspension Upgrade Compatible With Honda CR-V (RS) 2023 2024 2025 2026 All Trims; Front - Inverted Shocks/Rear - Traditional Upright Shocks
SpecificationFrontRearTop MountYes, Camber Plate w/ Pillow BallNo, Re-use Factory Top MountSpring Rate8 kg/mm (448 lbs/inch)8 kg/mm (448lbs/inch)Spring Length200 mm (7.87 inch)180 mm (7.09 inch)Spring Inner Diameter62 mm (2.44 inch)62 mm (2.44 inch)Shock TypeInverted Mono-TubeStandard Mono-TubeDetails
Take your vehicle’s handling to the next level with the REV9 Hyper-Street 3 Coilover Kit. Engineered specifically for the Honda CR-V (RS) 2023-2026, this premium upgrade introduces race-inspired Inverted Front Struts alongside our proven 32-level damping adjustments. Whether you are daily driving or carving canyon roads, the Hyper-Street 3 balances an aggressive drop with refined ride comfort.
The Inverted Shock Advantage:
Traditional coilovers place the heavy shock body at the bottom (attached to the wheel). The Hyper-Street 3 flips the script by mounting the shock body to the chassis.
- Sharper Steering Response: By flipping the shock upside down, we significantly reduce unsprung weight. Your suspension reacts instantly to road imperfections because the wheel assembly is lighter.
- Zero Structural Flex: The massive outer casing eliminates strut deflection under extreme cornering loads, keeping your alignment precise when pushing hard.
- Optimized Heat Dissipation: Larger internal oil capacity handles heat better, keeping your dampening stable, predictable, and fade-free.
Key Features:
- Advanced Inverted Mono-Tube Front Struts: Heavy-duty strength paired with a low repulsive force to retain premium ride comfort on lowered vehicles.
- 32-Level Damping Control: Click-adjustable precise valving lets you easily tune your ride from street-compliant to track-stiff.
- Independent Ride Height Adjustability: Fully adjustable lower mounts allow you to drop your vehicle without sacrificing spring travel or pre-load.
- Lightweight Aluminum Hardware: High-strength aluminum collars and brackets shed weight without compromising structural integrity.
- [Premium Front Top Mounts / Pillow Ball Camber Plates]: Includes integrated aluminum top mounts for crisp steering response and personalized alignment tuning. (Note: Change to \"Reuses factory top mounts\" if applicable to this specific chassis)
*Front Shocks - Inverted
*Rear Shocks - Traditional Upright
Special NotesNoDamping Levels32-LevelHeight AdjustmentYes
