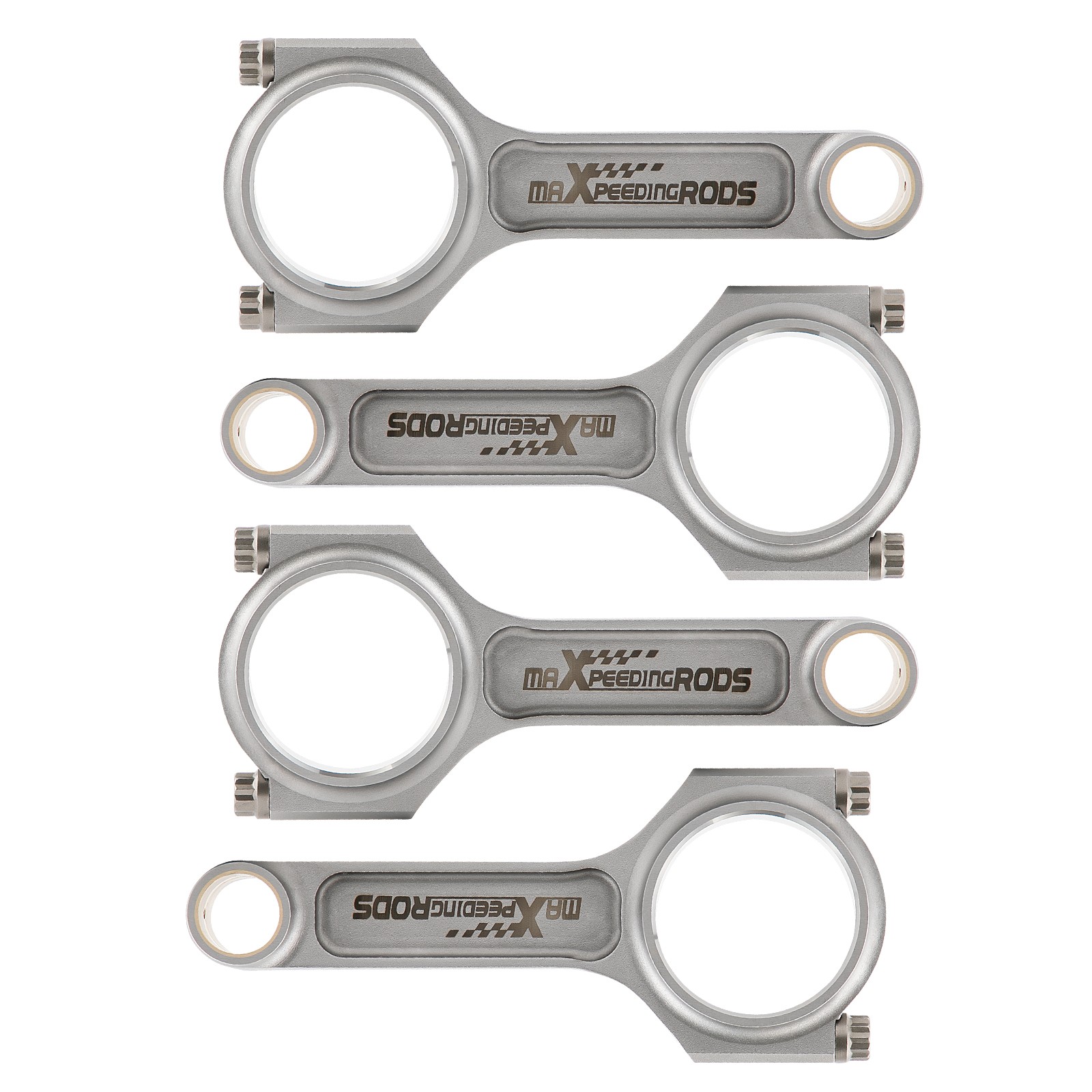

I-Beam Forged 4340 Connecting Rods for Mazda B6 1.6 / B6F 1.8 ARP Bolts 5.236"
All modifications must be installed by licensed mechanics and in compliance with your local modification
ARP Bolts
The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.
TÜV PRODUCT TEST AND TÜV ISO 9001 CERTIFIED
Forged 4340 Steel
Forged 4340 Chrome Moly Steel improves strength and durability, dedicated for Racing.
I-Beam Design
I-Beam helps improve stiffness, reduce stress risers and weight.
Horsepower Rating
Advertised horsepower rating: 600HP-800HP.
High Precision Control
Balanced within:+/- 1 gram per rod,
Bores finished to:+/- .005mm or .0002".
ARP 2000 Bolts
With Standard Original ARP 2000 Bolts.
Upgradable ARP L19 Bolts
Contact with us for ARP L19 which can hold a maximum engine speed of 12000 RPM.
Application
for Mazda B6 1.6 / B6F Engine :
for Mazda 323 BG / 323F Miata /MX-5 B6 Xedos 6 / Eunos 500 1.6 L B6-9/B6-E I4 1992–1999
for Kia Mentor / Shuma / Spectra 1.6 L B6 I4 1997–2003
for Kia Rio First generation 1.6 L B6 I4 (petrol) 1999–2005
for Mazda Familia / 323 1.6 L B6 I4 1985–1989
for Ford Tonic GT-X Fifth Generation 1985–1989
for Mazda Familia / 323 1.6 L B6 I4 Sixth :
for Mazda Familia GT (European & Australian Market) 1989-1994
for Ford Laser TX3 (Australian Market)1989-1994
for Ford Laser KJ GLXi (Australian Market)1994-1998
for Mazda Artis "LX" VICS jm1 (North America Market)1994-1998
for Mazda Protege LX (with VICS)1990-1994
for Mazda Protege ES (Australian Market: 1994-1998 )1995-1998
for Mazda Infini1990
for Mazda Protege GT (Canadian Market)1990-1991 and 1993
for Mazda 323 (European Market)1990-1993
for Ford Escort GT and LX-E 1991-1996
for Mercury Tracer LTS 1991-1996
for Kia Sephia RS, LS, for GS 1995-1997
for Mazda Familia (Japanese Market) 1994-1998
for Mazda Lantis 1994-1998
for Mazda MX-5/Miata (did not have VICS until 1999) 1994-1997
for Suzuki Cultus Type: Floating Pin Piston
Dimension
Center to center length 133mm/5.236" Big end diameter 48mm/1.89" Small end diameter 20mm/0.787" Big end width 21.84mm/0.86" Small end width 21.84mm/0.86" Specification
Quantity 4 Pieces as showing in picture Bolts Including ARP 2000 bolts Bolts Size ARP 2000 5/16" bolts Bores finished to +/- .005mm or .0002" Balanced to within +/- 1 g per rod Advertised Horsepower Rating 600HP-800HP Top acceleration 9000rpm Strength of the fastening PSI 220,000/230,000 PSI Torque: 48ft ≈ 65 NM Warranty 2 years warranty for any manufacturing defect Package size 28CM*21CM*10CM Note
*Professional installation is highly recommended ；
*Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
