Purchasae NOTE:This is an official JOYING clearance item (Android 12 system), offered at a significantly discounted price. It comes with a one-year warranty. If you have any issues after receiving your order, please contact us first so we can resolve it for you. Please order only if you are comfortable with these terms.
【Plug & Play Car Stereo For Toyota Highlander 】

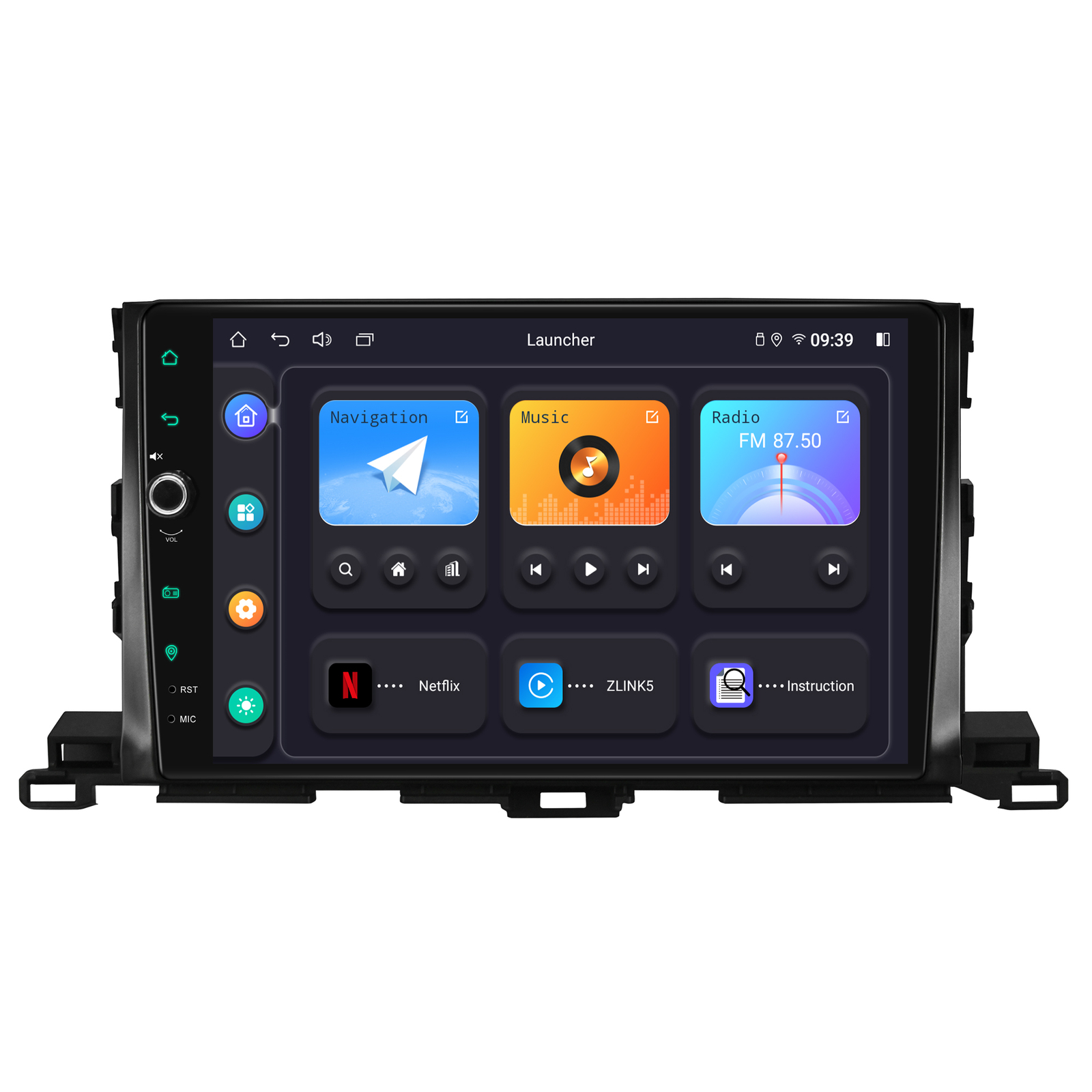

This car radio dedicated for Toyota Highlander 2014 2015 2016 2017 2018 model. Necessary cables supplied,
easy to install and no cables to cut. Note: Years just for reference, please confirm the car center console and connector
port before placing order.
【Main Features】
●10.1inch HD Touch Screen with resolution 1280X800P.
●Qualcomm Snapdragon MSM8953 Octa Core Cortex-A53 with Ram: LPDDR4 4GB Rom:EMMC 64GB .
● Fast boot: once put in car key,it will start up at once and enter into user interface in 2-5 seconds.(It need about 30-40
seconds in the first time boot up)
● Car-smartphone Connectivity: Apple CarPlay+ Android Auto;
● Built-in Google GPS Navigation APP: Users can purchase directly from play store for offline
wantandnevergetlostagain.
● Steering wheel control: Through it you can control the functions you need by steering wheel,
moreconvenient.
● Built-in Hands Free/Phone book: hands-free calls, music player,Auto loading phonebooks.
● USB / Micro SD card slot: Built in 3x USB ports and 1x Micro SD card slot.Supports the storage up to 128GB.
● Support multi-language: style="margin: 0pt; text-align: justify; font-family: Calibri; font-size: ect.
● Optical Fiber and Coaxial Digital Output. If your external amplifier has Optical Fiber or Coaxial Digital Input,
it gives you a chance to achieve ultimate sound quality directly.
● AR Cameras Input: (Extra device required) During driving, you can freely switch the front camera and rear camera
to observe the safe driving environment.
● OBD2: (Extra device required)With the Bluetooth OBD2 diagnostic scan function,you’re able to get OBD fault codes,car
performance,sensor data and more car information in rear time.
● TPMS: (Extra device required)It can automatically monitor the tire pressure in real time during the driving process of the car,
and give alarms for tire leaks and low pressure to ensure driving safety.Connected via USB.
【Built-in Wireless and Wired carplay & Android auto】
It's designed to minimize distraction so you can stay focused on the road ahead. It allows the stereoaccess the
phone and use the app in driving way such as setting navigation route, make calls, listen to music.
*CarPlay (iOS 10.1 or later) compatible using wired or wireless connection.
【Built-in 4G Module】
Insert the SIM card for Internet access, but it cannot support to make phone calls or send SMS.
*Support the below types:
Eurasian Version：
TDD-LTE: B38/B39/B40/B41 (200 MHz)
WCDMA: B1/B2/B4/B5/B8
GSM: 850/900/1800/1900 MHz
US Version:
【Bluetooth】
Bluetooth 2.1+EDR/3.0/4.1 LE/4.2 BLE/5.0 LE increases the transmission rate and the effective working distance.
Support audio streaming, automatic Phone Book transfer and hands free call.
(Notice: it only supports phone and OBD dongle connection)
【GPS Navigation】
Precise GPS engines, more accurate positioning, including GPS antennas, can better receive satellite signals,
thus ensuring faster real-time navigation.
Google maps app is preinstalled, you can use online maps after connecting the head unit to the network.
If you are in an area where downloading the data of google offline map is supported, you can save the map data
of that area to the car stereo in good map and use it offline.
- Synchronize mobile phone map datato head unit via Carply/ Android auto
【A Better-Than-Ever Listening Experience】
Matches DSP sound effect processing chip with SI47925 amplifier output chip, and supports SPDIF digital audio output.
Our car stereo has a good sound quality output standard. You can adjust the sound effect as needed when listening to music,
radio and watching movies. It brings you a feast of hearing.
* 48- band EQ, preset 20 kinds of sound effects
*The subwoofer can be amplified output and adjusted independently. Separately frequency adjustment of the ultra-bass,
bass, mid-bass, mid-sound, mid-treble, treble, and super- treble.The voice is clear, the mid-tone is bright,
the sibilants is slender and unharsh, and the bass is strong and powerful.
*Equipped with a DTS5.1 panoramic surround sound effects and sound field correction system to make the
speaker break through physical limitations to give you an immersive surround experience.
NOTE: Comes with Optical Digital & Coaxial Digital output port, you can connect the amplifier to achieve better sound quality.
