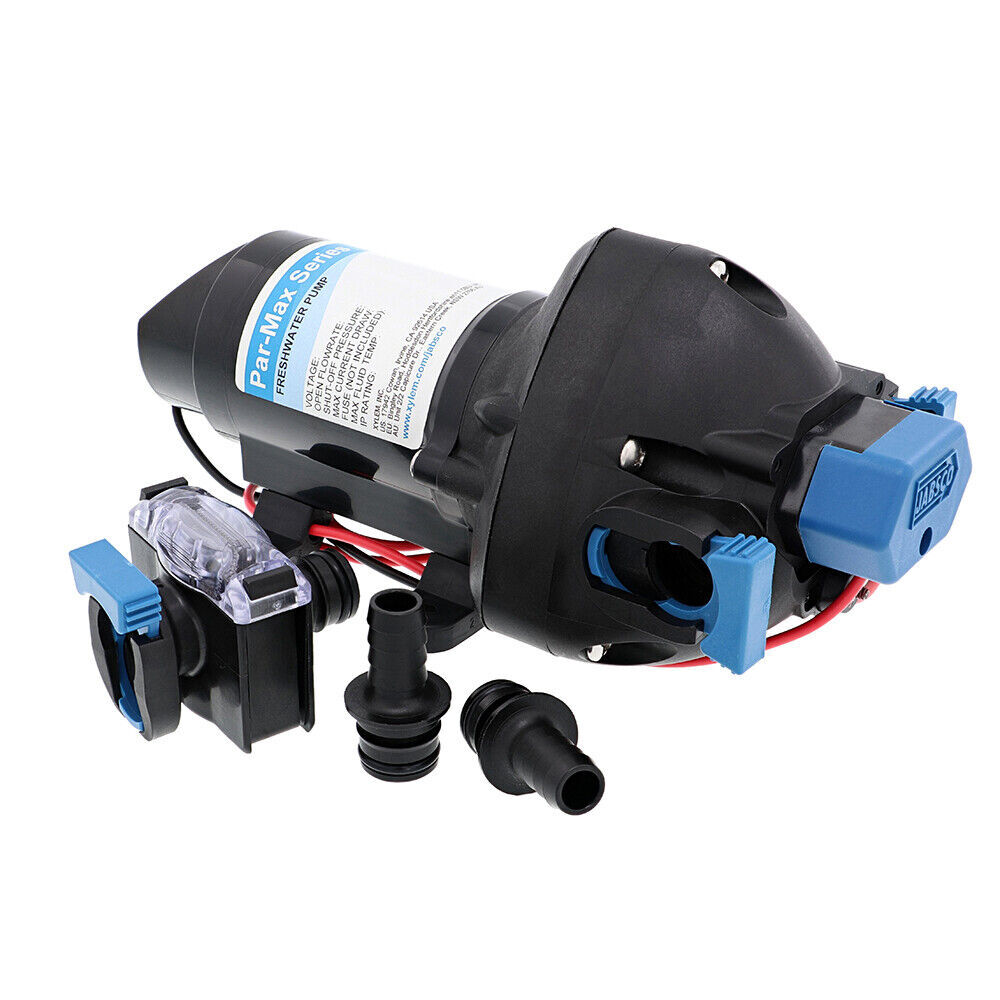

Par-Max 3 Water Pressure Pump - 12V - 3 GPM - 40 PSI
HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance.Â
Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion.Â
Features:
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Equipped with integrated bypass module to reduce cycling and provide smoother flow
Specifications:
- Motor design: Brushed, permanent magnet TENVÂ
- Pumphead upper housing material: Glass fiber reinforced polypropyleneÂ
- Diaphragm: Co-molded TPVÂ
- Check valves: EPDMÂ
- Max inlet pressure: 30 PSI (2.1 Bar)Â
- Fluid temperature range: 32°F â 140°F (0°C â 60°C)Â
- Dry self-priming capability: 7ft min (2.13m/min)Â
- Certifications: CE, ISO8846, RCM
- Ingress Protection: IPX6
WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov.
FEATURES
- Volts = 12v | Max PSI = 40 | Gallons Per Minute = 3 GPM
DETAILS
- Product Dimensions: x x inches
- Item Weight: 4.9 pounds
- Shipping Weight: 4.9 pounds
- Manufacturer: Jabsco
- Item color: Multicoloured
- Item model number: 31395-4012-3A
- Item MPN: 31395-4012-3A
- Item part number: 31395-4012-3A
