Description:

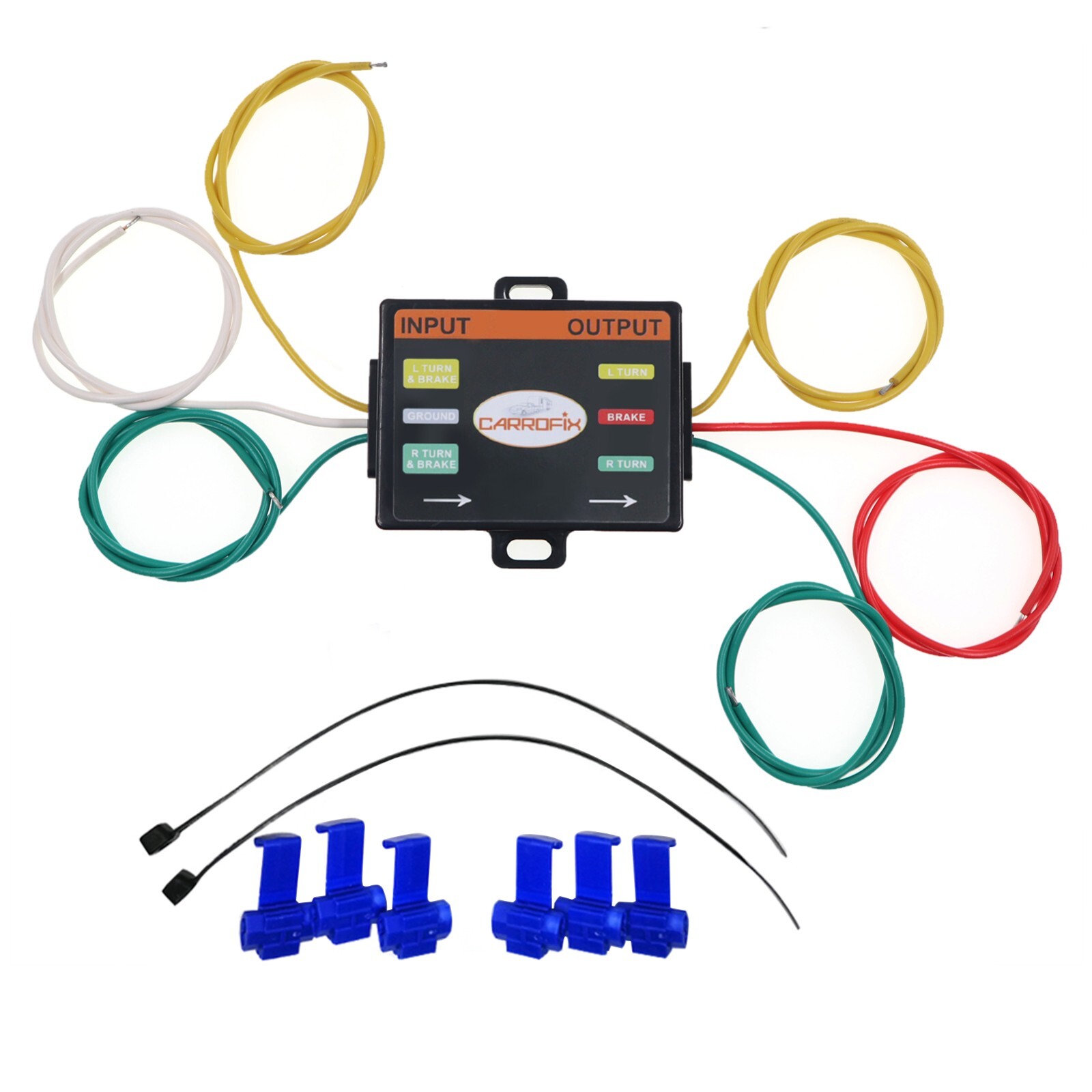

Carrofix Wiring Kit - 2-To-3-Wire Tail Light Converter
This universal taillight converter is designed for use with import and domestic vehicles requiring a taillight converter to ensure proper towed vehicle light functions when tow vehicle has a different lighting system. It\'s basically used when a motorhome is towing another vehicle by way of a tow bar.If your towing vehicle has the 2-wire system and the vehicle being towed is on the 3-wire system, where the vehicle usually have amber turn signal separate from the break signals, this vehicle-to-vehicle tail light converter will need to be use.
Features:
* Used for converting a 2-wire electrical system to 3-wire
* Constructed with SMT circuitry for better performance and durability
* No heavy-duty flasher or direct battery connection required
* Color-coded wires for easier installation
* 2.1 Amps per circuit
Installation Instructions:
1). Position this converter at the rear of the TOWED vehicle;
2). Connect the YELLOW LEAD (import) to towing vehicle LEFT turn/brake light;
3). Connect the GREEN LEAD (import) to towing vehicle RIGHT turn/brake light;
4). Connect the WHITE LEAD (ground) to the Chassis ground;
5). Connect the YELLOW LEAD (outport) to the TOWED vehicle LEFT turn light (rear);
6). Connect the GREEN LEAD (outport) to the TOWED vehicle RIGHT turn light (rear);
7). Connect the RED LEAD (outport brake) to TOWED vehicle brake light (or to switch).
Package List:
* 1x Trailer Light Connector * Wiring Diagram
