LS Swap Retrofit Low Profile Oil Pan Kit for GM LS1 LS2 LS3 Engine 55-87 302-1
Application:
- For 55-87 GM. (Muscle Car, Classic Car, Trucks.etc)
Fit GM rear wheel drive applications that were originally equipped with a Small Block or Big Block Chevy engine and traditional rear sump oil pan.
Specification:
- 100% quality assurance tested, more responsive, less expensive, easier to install.
- High-quality cast aluminum appearance with clean exterior styling.
- Provide maximum clearance to chassis.
- Offer a lower profile for added ground clearance.
- Engine location may need to be adjusted (up/ down or fore/ aft).
- Maximum crankshaft stroke: 4.25”.
- Sump Oil Capacity: 5.5 Quarts.
- Total Oil Capacity with stock oil filter: 6 Quarts.
- *Made the E-Rod LS3 swap simple and painless*
Material & Color:
- Material: made of high qualityAluminum.
- Color: as picture.

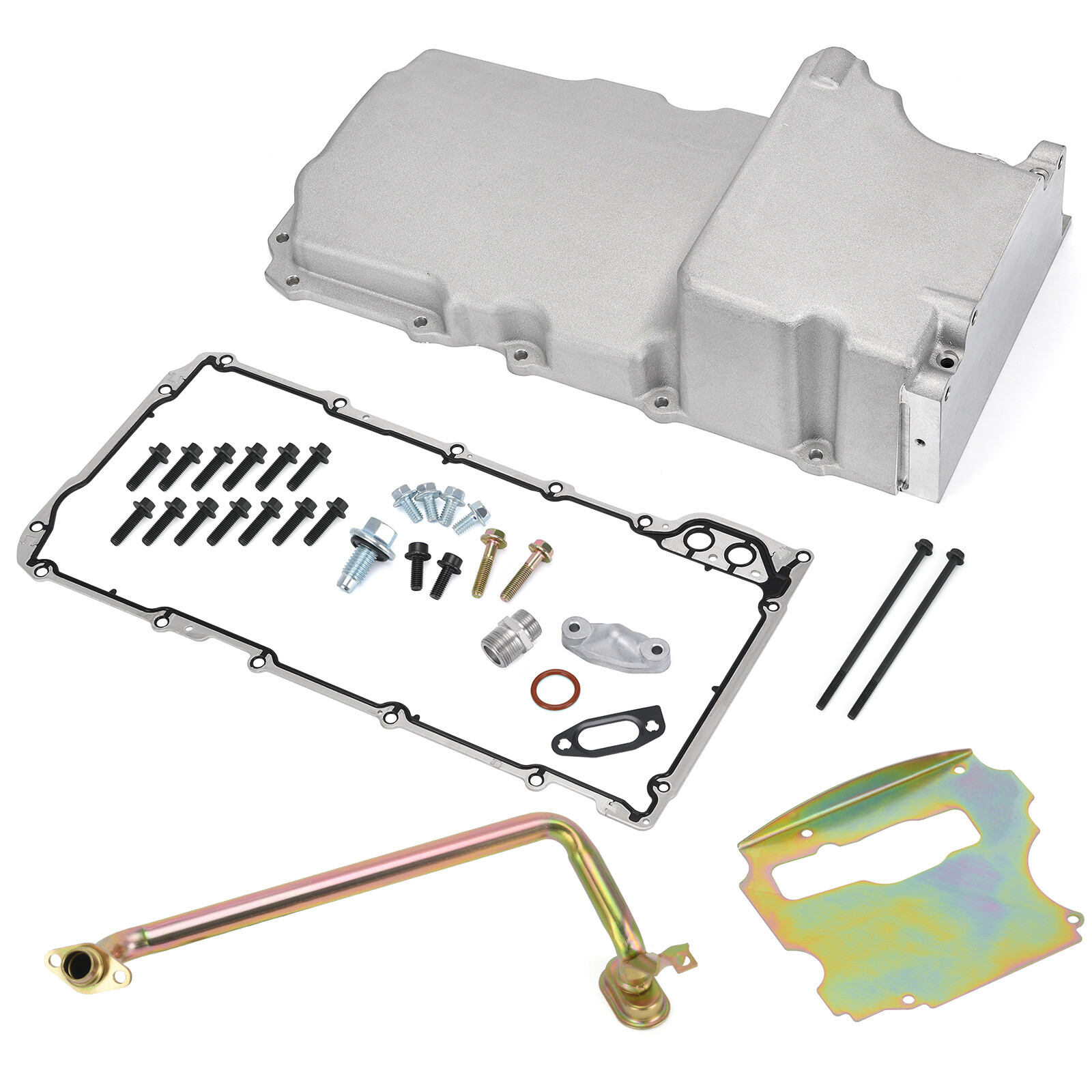

Package Included:
- 1x Oil Pan;
- 1x Oil Pan Gasket;
- 1x Sump Baffle;
- 1x Pick-up Tube;
- 1x Sump Plug;
- 1xOil Filter Stud;
- 1x Oil Passage Cover;
- 1x Oil Passage Gasket;
- 1x O-ring;
- 23x Bolts. (100% Brand New Never Used Or Installed)
How to Install:
- Supply oil to the O-ring to ensure a smooth installation.
- Slight modifications may have to be made to the oil deflector before the pickup screen will sit flush.
- Put on the oil pan gasket.
- Install sump baffle on the oil pan with bolts.
- Install oil passage cover and gasket with bolts.
- Ensure the oil pan sits flat with no interferenceand then install all boltsaround.
- Install oil filter stud and sump plug.
