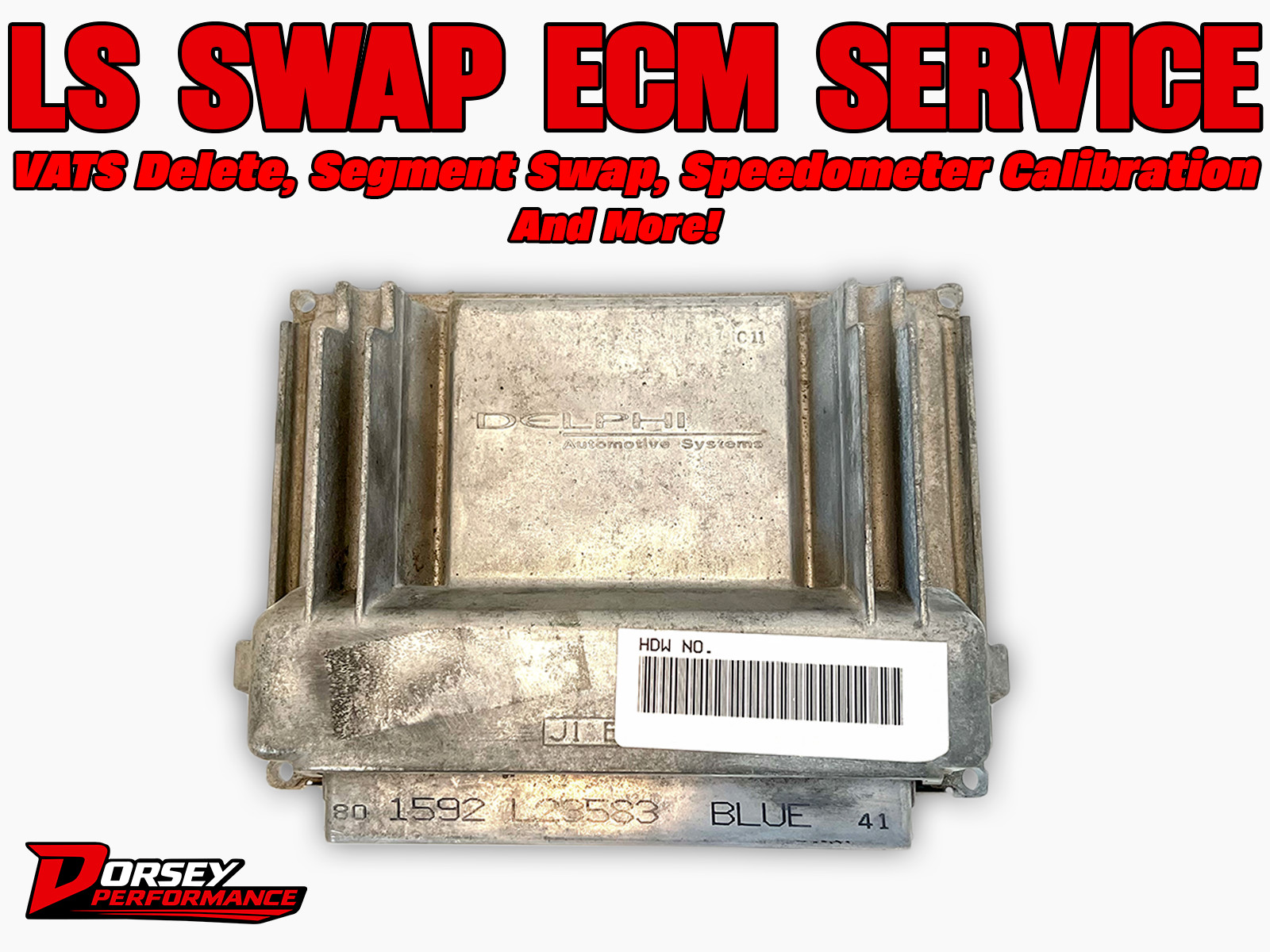

LS Swap ECU – P01 PCM Programmed & Unlocked – Drive By Cable
Part Number:12200411
Programmed OEM PCM forLS engine swapsusing theGM P01 Powertrain Control Module. This listing is for aused salvage ECU that will be freshly programmedand configured for your needs.
Condition:
This is aused salvage PCMthat has been programmed. Units may shownormal cosmetic wear, marks, or signs of agefrom prior use. Each ECU is flashed and tested before shipment.
Tune Configuration:
PCM will be programmed forDrive By Cable (DBC) onlyand configured for24x LS engines. The calibration will befully unlocked and ready for further custom tuningif desired.
Supported engine calibrations include:
• LM7 – 5.3L NON-FLEX FUEL, 26 LB INJECTORS @ 58 PSI, 24X
• L59 – 5.3L FLEX FUEL, 36 LB INJECTORS @ 58 PSI, 24X
• LM4 – 5.3L NON-FLEX FUEL, 26 LB INJECTORS @ 58 PSI, 24X
• LS1 (Firebird & Camaro) – 5.7L NON-FLEX FUEL, ALUMINUM BLOCK
• LR4 – 4.8L NON-FLEX FUEL, 26 LB INJECTORS @ 58 PSI, 24X
Configuration Options:
•Speedometer calibration(based on tire diameter and rear gear ratio)
•Engine configuration(LM7, L59, LR4, LS1)
•Manual transmission
•Automatic transmission (electric or non-electric)
•VATS (Vehicle Anti-Theft System) disabled
• Additional tuning requests available upon request
Important – Information Required After Purchase:
Please send the following informationwithin 24 hours of purchaseso the ECU can be programmed correctly:
• Engine type (LM7, L59, LR4, LQ4, LQ9 or LS1 (Firebird & Camaro)
• Throttle type (Drive By Cable, Drive By Wire)
• Transmission type
• Rear tire outer diameter
• Rear gear ratio
Ordersmissing this information after 24 hours may be subject to cancellation.
Fitment / Application:
Designed forLS swap projects using 24x crank reluctor enginesandDrive By Cable throttle bodies. Ideal for engine swaps and project vehicles.
Returns:
Returns are acceptedONLYif the ECU arrives damaged, or defective. Returns will not be accepted for incorrect buyer information, compatibility issues, or change of mind due to the custom tuning service performed. Buyer pays return shipping. NO returns for international shipments.
Shipping:
Free shipping within the United States.Orders will be carefully packaged and shipped promptly once the required vehicle information has been received.
International shipping is available, but additional shipping charges will apply depending on destination and carrier rates.
