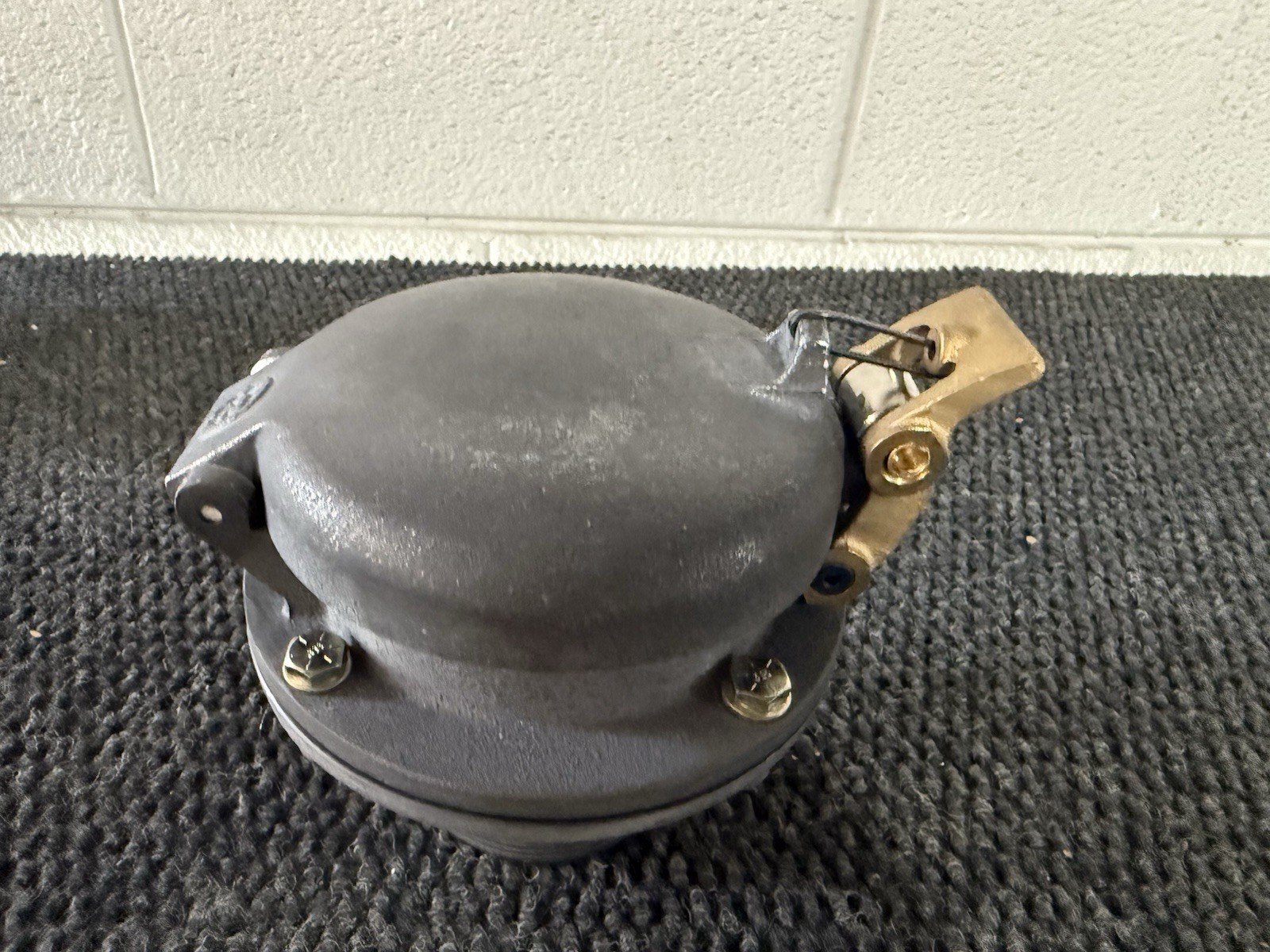

These large flip top roller latch gas caps are a great addition to your restoration, vintage race car or custom projects. This is the multi Piece design that works great on most if not all application such as Lola, CanAm race cars, vintage racing cars, Mustang, Corvette, Cobra, Ferrari, Rat Rods, Custom Street Rods, Boats; And anything else under the sun.
These are not die cast, they are sand cast aluminum 356 T6, as were the original ones.
This one is a limited black mag color with brass lever and vent plates.
They come complete with hardware body gaskets and vented or non vented.
They are all hand assembled right here in Augusta GA .
They are fully rebuildable.
Also very unique to our fuel cap is the safety detail , which is needed in most vintage racing organizations, is our provision to safety wire or zip ti the cap to the lever (see picture).
Here at Retno , we only make high quality and very unique parts.
Only the best…..
Material:
High quality aluminum temblor finished
Hose Diameter: 3” OD
Vented: Yes or as specified upon check out
Cap Diameter: 4-3/4” OD or 4.75”
Mounting Base Diameter: 5-3/16”
Mounted Height: 2.400”Tall
Flange Thickness: 1/4"
Hose Barb Length: 2.3/8” From (Back Of Flange)
Bolt Hole Pattern: 4 @ 4.75” O/D
Base and Cap Gasket And Mounting Bolts included.
You will not find an other one like it,
Limited production and all numbered.
Special introduction price, very few available and all custom made.
Retno for the best quality parts.
