Product Specifications

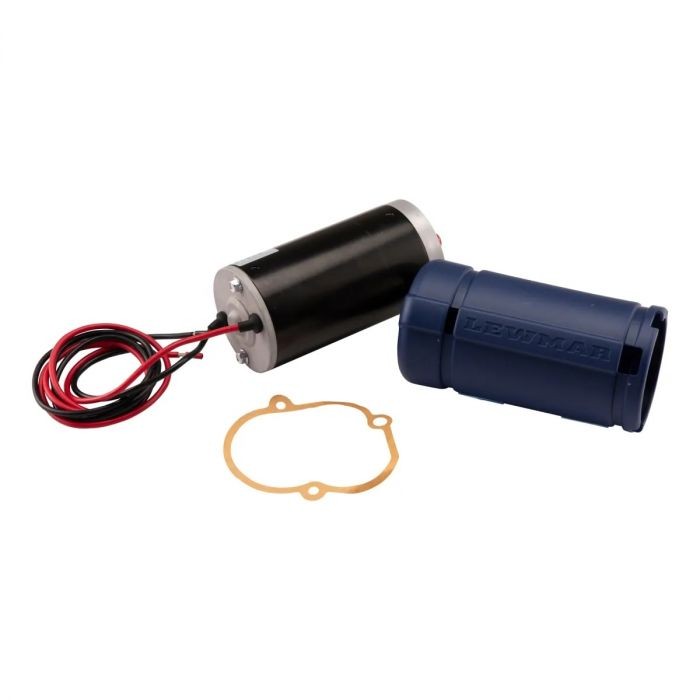

Offering fast line speeds and an emergency manual deployment option, this is one of the most durable windlass motors on the market.What's in the Box:
From the manufacturerHow to choose the right windlass for your boat
What size windlass would best suit my boat?
Use the Lewmar windlass selection chart to determine the general size of the windlass to be fitted to your boat by using length and displacement.
How long is the anchor rode I wish to use, and will the windlass put the entire rode into my locker?
Examine the depth of the anchor locker to determine the fall that is available. The fall is the vertical distance between the top of the anchor locker and the top of the anchor rode when the entire rode is completely stored inside.
How much pulling power should my windlass have?
Having selected a vertical or horizontal windlass and determined the size required, you can cross-check by using the following formula:
Total weight of ground tackle (anchor and rode) x 4* = Pulling power required by the windlass
*Use x4 for all Horizontal windlass and Vertical windlass up to V5. Use x2 for V6 Vertical Windlass and above
The Lewmar Windlass Range
VX Series
- New generation of vertical windlasses
- Available in horizontal or in-line motorgearbox configurations
CPX Series
- Alloy construction provides strength in a lightweight format
- Design based on proven V Series
V Series
- Flagship vertical windlass range
Stainless Steel construction
For boats up to 240ft
HX1 Windlass
- New generation horizontal windlass
- Powerful gearbox provides superior performance
Pro-Series Windlass
- Stainless body provides looks and strength
Available with freefall attachment
Small footprint saves space
H Series
- Painted alloy body
- Powerful motor-gearbox
C Series Capstan
- Stainless Steel construction complements V Series windlass
Sleek and unobtrusive, it blends well into the stern area
