Lotus Elise/Exige Indicator Lamp Repair Clip For Sale - New and Used

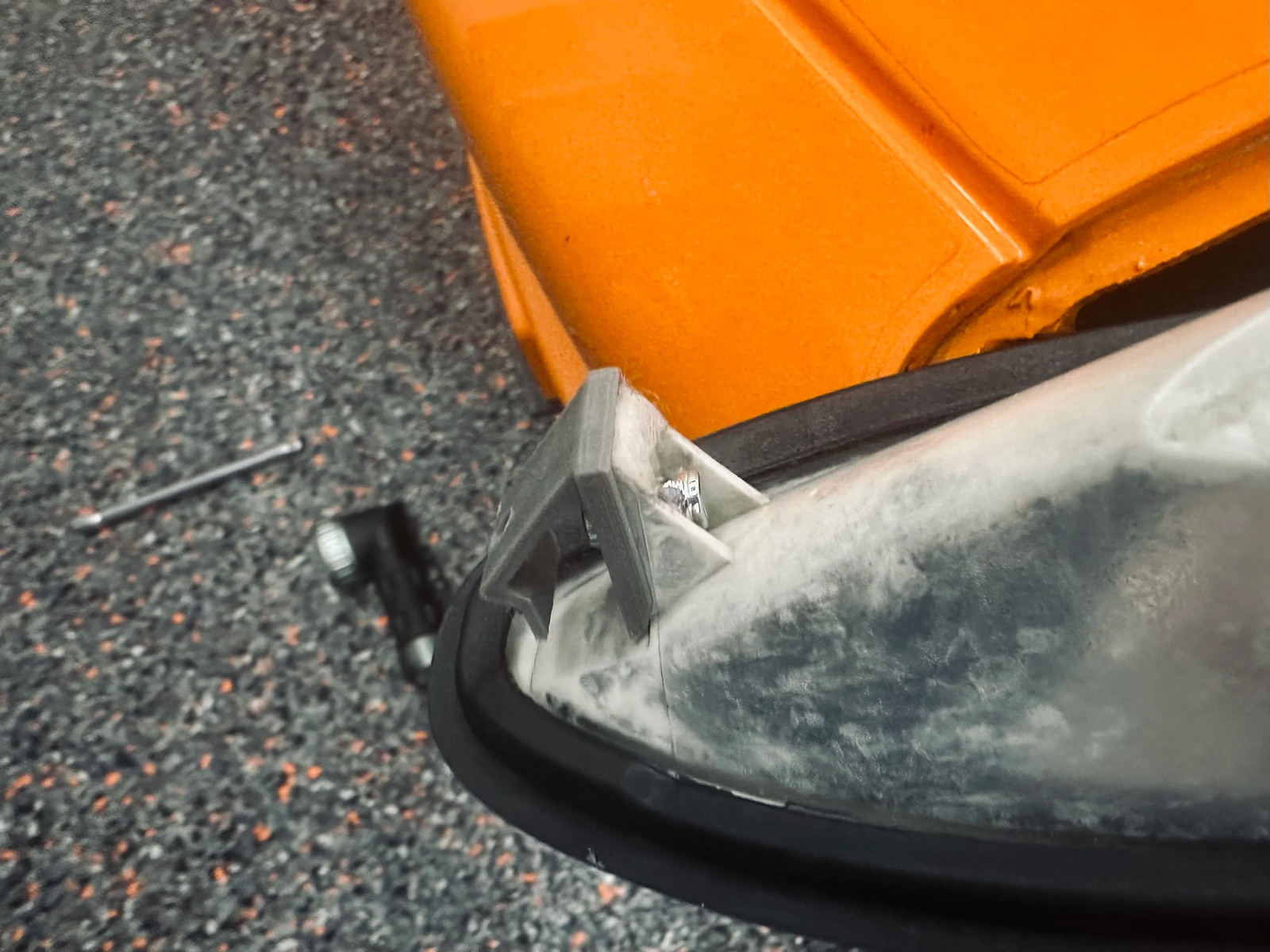

This listing is for a finished 3D-printed Lotus Elise/Exige Indicator Lamp Repair Clip.

This item will be printed in black.

Installation notes:

• Extended side centering rails create slight interference to help stabilize the clip while drilling the bolt hole.
• The designer recommends a 3mm x 10mm LG bolt, and the source example was drilled for a 4mm x 10mm LG bolt.
• With a 4mm bolt, needle nose pliers were used to hold backup on the lock nut because a wrench or socket would not fit.

Additional designer information:

• The design eliminates the bottom-facing flat so the clip engages the clam shell more easily and reduces installation pressure and clip stress.
• The removed bottom-facing flat reduces bending stress by creating a long cantilever arm.
• The engaging clip surface is slightly larger than the OE geometry for a solid locking engagement with the clam shell.
• Additional radii were added to reduce stress when bending.
• The source advises keeping make-up torque to a finished physical item.

  Material:

  3D-printed plastic for the listed application.

  Notes:

  Compare the photos, source title, and fitment details with your original part before ordering.

  Minor surface texture and cosmetic variation can occur with additive manufacturing.

  Made in the USA using USA-sourced materials.

  Source attribution

  Original 3D model: "Lotus Elise/Exige Indicator Lamp Repair Clip"

  Creator/designer: BryanPendleton

  Source: thing:6807332

  Thingiverse source ID: 6807332

  License: Creative Commons - Attribution - Share Alike




  ---
