AT VERY MINIMUM PLEASE READ 5 BELOW ITEMS BEFORE PURCHASING, preferably read the whole listing.
1) This product is NOT an ADAPTER and or \"FLIP\" RIng, it is a clocking ring. I do not sell adapters or flip rings. If you buy it to do such a thing and it doesn\'t work you were warned.
2) Make sure your front driveshaft is located on the side of the vehicle in the Product Title at the top of page
3) Make sure that title at top of the page also matches the direction you want to move your driveshaft (lift or lower)
4) Please ask questions before purchasing, I answer in a timely manner.
5) We ship from remote Montana 2-3 times per week priority mail 2-3 day standard delivery only, I do not overnight items.
Product-CNC precision machined, rock crawler, Jeep
Standardthree position clocking ring to rotate yourdriver transfer case downa total ofapproximately 30 degreeswiththree10 degree increments. If you have extreme driveline angles this ring may be the solution. Ring comes with a universal hardware set including studs, nylon locking nuts and countersunk allen head bolts.All hardware in the universal set consists of 3/8-16 thread count, there are a few t-cases out there that need the metricM10x1.5 thread count mounting screws. If yours is one of these cases please contact us prior to purchasing for availability of those mounting bolts.
*NOW OFFERING* Optional Upgraded Mounting Hardware Kit for high HP/Torque & extreme use applications -click link below-
Clocking Ring Stud Mount Upgrade Kit | Below is a list of what is included with each purchase, you will not be receiving anything else in this purchase.

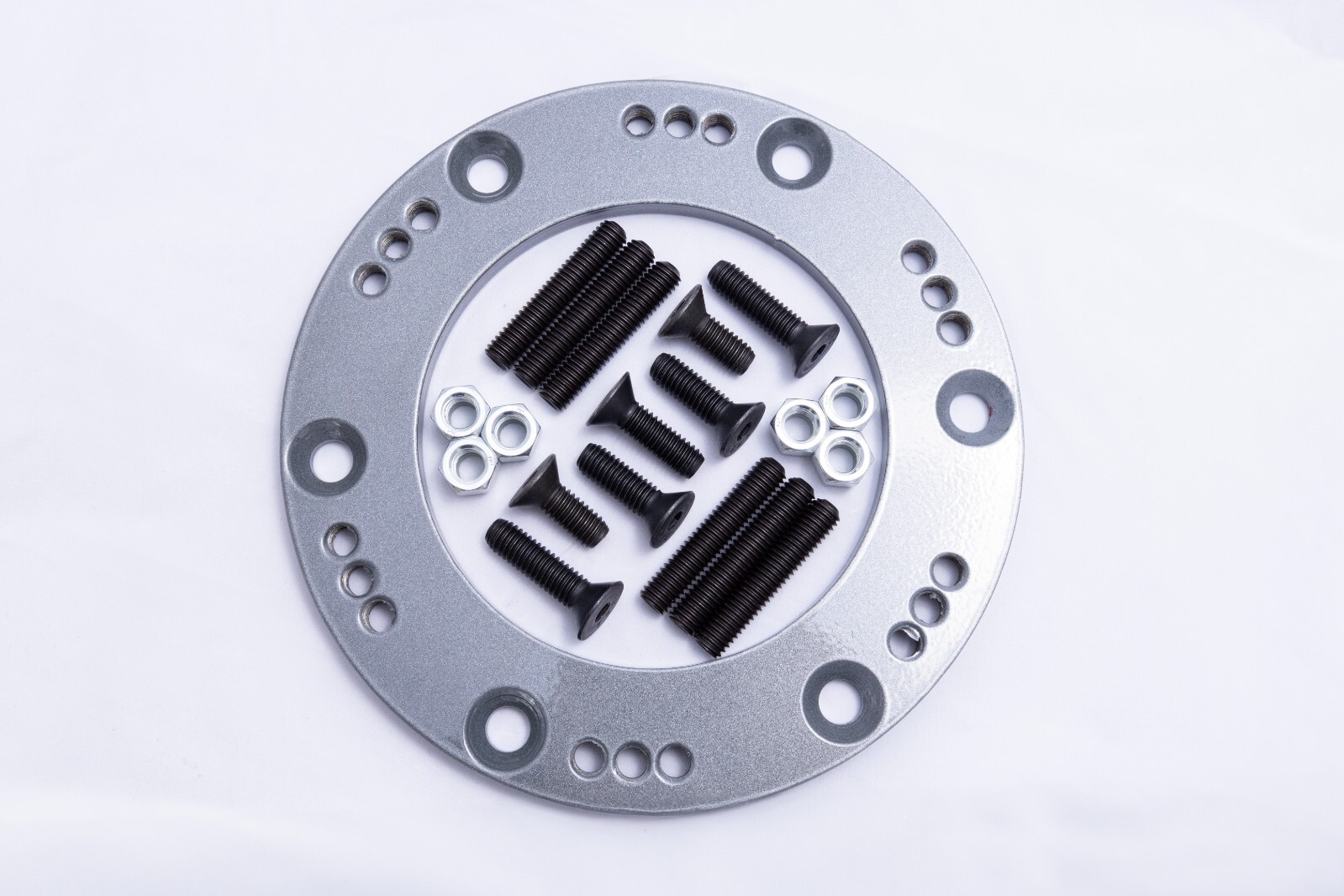

One 3/8\" thick bare steel clocking ring6 piece of a nylon inserted locking nuts black oxide finish6 pieces of a 3/8\"-16 x 2\" studs black oxide finish with allen wrench provision2 pieces of a 3/8\"-16 x 1 1/2\" allen head provisioned flat head machine screw black oxide finish
3 pieces of a 3/8-16 x 1 1/4\" allen head provisioned flat head machine screw black oxide finish2 pieces of a 3/8-16 x 1\" allen head provisioned flat head machine screw black oxide finish
Fit-
Ring will fit the Dana 300, NP208, NP231, NP241 round six bolt pattern t-cases as is with no modification. Note that there are many 6 bolt transfer cases that this ring will fit that are not listed. We only listed the popular ones that sell frequently. Last please be aware that this 6 bolt pattern is oriented so that you need to order the correct ring for your t-case, we currently have 4 different rings in stock. Make sure your case is adriver side t-case and you want to lower it when ordering this ring. If your case is oriented differently or you have a special application please ask questions before purchasing.
Material and Finish-
Machined for a precision fit from 3/8\"1020 Steel and shipped clean and free of burrs. Product will come in bare steel and coatings can be added by customer at their owndiscretion. The universal hardware set is just this, it is our attempt to provide you with a low cost option to fit many different cases.In some instances included studs may need to be shortened to fit your application. Sealing the ring can & should be done by a professional. Gaskets and RTV are not included and is up to the discretion of the buyer and his or her professional installer of what to use to achieve a leak free seal as many options are available to do so.
Inventory-
Product is stocked ready for shipment on the shelf with normally a 1 day turn and shipping provided via USPS flat rate mail.
Last-
We are here to be of service to you our customers and strive for 100% satisfaction.We believe in fair and honest business practices and try to make sure you the customerare well informed before spending your hard earned money. Thank youfor the opportunity.
