P/N
007- 0543
Item Name

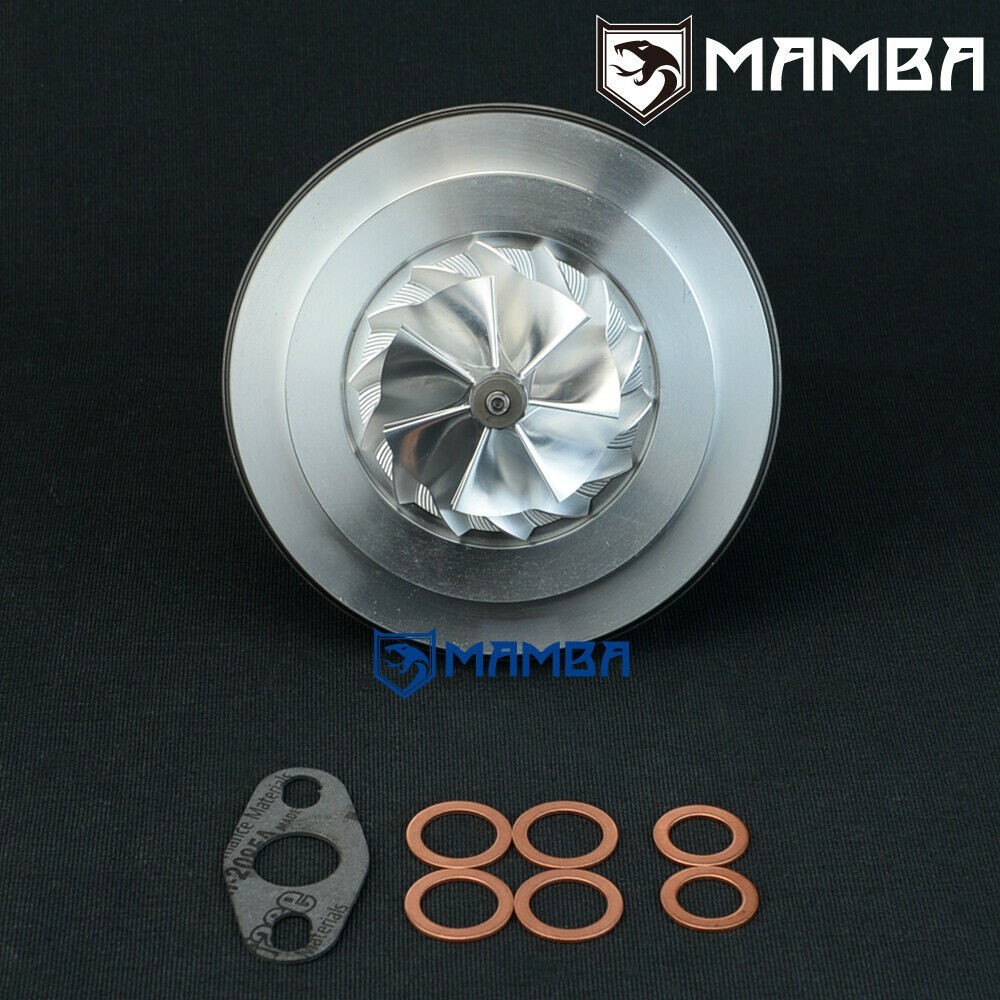

MAMBA 2003~2010 VW AUDI Seat TT S3 Leon Golf V 2.0T TFSI Borg Warner K04 K04-064 53049880064 9-7 Extreme Turbo CHRA Cartridge
(Extreme 46.5/53 Turbine Wheel + 51/62 Compressor Wheel)
Product Situation
Brand New in Box.
Balanced by Schenck MBRS110
Application
2003-10 Audi S3 with 2.0L TFSI quer, transversal Engine
2003-10 Audi TT'S with 2.0L TFSI quer, transversal Engine
2003- Audi S3 2.0L TFSI (8P/PA) Engine BHZ
2003- Audi TT S 2.0L TFSI (8J) Engine BHZ
2003- Seat Leon 2.0L TFSI Cupra Engine BWJ, CDLD
2003- Volkswagen Golf V 2.0L TFSI Engine BYD
Borg Warner turbo # 53049700064 / 53049880064
Compressor Wheel Spec
Inducer OD : 51.03 mm
Exducer OD : 61.98 mm
Blade : 7+7
Material : Billet forge aluminum 2618
OE comp housing needs to ported to fit this big compressor wheel.
Turbine Wheel Spec
Inducer OD: 52mm(Extreme)
Exducer OD: 46.5mm(Extreme)
Blade : 9 blade
Material: Inconel 713
Turbine Housing needs to be ported to fit this big turbine wheel
Kit Includes
1 x CHRA
2 x brass oil feed washer
4 x brass coolant washer
1 x oil return gasket
1 x Schenck balance report
Warranty
One year limited warranty.
Warranty will not be honored in case of damage or malfunction due to overheat, lubrication issue and bent/broken blade is not under warranty.
Replacement parts will be charged.
Tax
ImportDuties, taxes and charges aren't included in the item price or postagecost. These charges are the buyer's responsibility.
