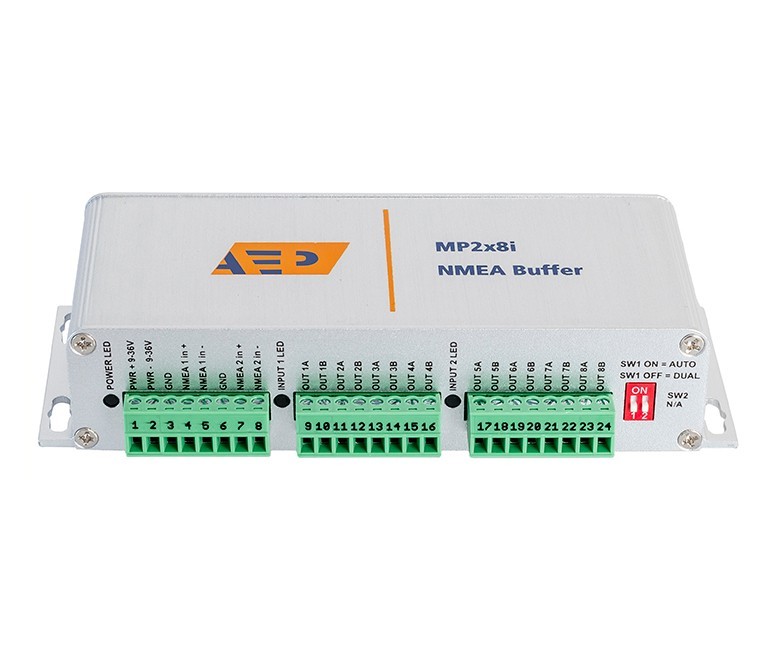

MP2x8i NMEA Buffer (AEP Marine Parts) Type approved NMEA buffer (Never Used Original Packaging).
Additionally for free in package will be included Cable holder forMP2x8i NMEA Buffer
Worldwide shipping (calculates individually)
By combining the wishes of both technicians and clients we developed a user-friendly and reliable NMEA Buffer.
The MP2x8i NMEA Buffer has been designed to distribute NMEA-0183 or other RS422 signals from one transmitter up to 8 listeners. In dual buffer mode it can even operate as two independent buffers with 1 input and 4 outputs.
ApprovalsType approved by RINAIEC60945 certifiedTechnical specificationsNumber of inputs: 2Number of outputs: 8Input/output speed up to 230400 bpsIsolated 24 VDC (9-36 VDC) power supplyReversed power supply polarity protectionIndividually OPTO isolated input and outputRobust aluminum housingPluggable PCB terminal block for easy access and installationInput signal: 2x RS232 or 2x RS422Output signal: 8x RS422Connection: cable diameter up to 1,5 mm (2,5 mm without ferrule)Operating modes
Auto-switch mode: If input signal #1 is lost for 30 seconds the buffer will automatically switch to input signal #2.Dual mode: Operate as two independent buffers with 1 input and 4 outputs.
