We see fantastic performance out of these MSD ignition boxes and LS Swaps, both at the track and on our in-house chassis dyno! Its super easy to make great power with an LS and a carburetor!In our LS Swap mustang with an LS1 long block, Texas Speed camshaft, Holley 300-132 intake manifold, Quickfuel 750, and the MSD 6014 control box we made 394 rear wheel horsepower (see pics). Way simpler than an EFI swap and more affordable as well.With our 6.0 powered 1978 Malibu Wagon with LS3 heads, 850 Carburetor, Victor Jr intake, and BTR Stage IV Camshaft we made over 500 hp to the tires!Both of these combinations are putting that kind of power down through TH400 transmissions 9" rear ends!New! Works with 58x and 24x reluctor wheels! This box includes the required wire harnesses from the box to your coil brackets!New features of the LS Ignition include; high speed data acquisition, an optional coolant temperature sensor input, idle timing control, as well as individual cylinder timing. These features are in addition to the existing 12V activated timing retard, programmable step retard, launch retard and RPM rev-limiters from its predecessor.If you're putting a carb on your LS, this new box from MSD has everything you need. Use the pre-set timing curves or set your own with the free user-friendly software. If you can buy products on , you can program this box!Attach your computer to the ignition with a USB port (**not** 9 pin serial as required by competing and older boxes-no troublesome adapters required!). Everything you need, with easy installation, included harness plugs right into the factory sensors.Need help picking out a carburetor for your combination? Contact us. We've done a ton of these LS carb cars, and we're happy to help!

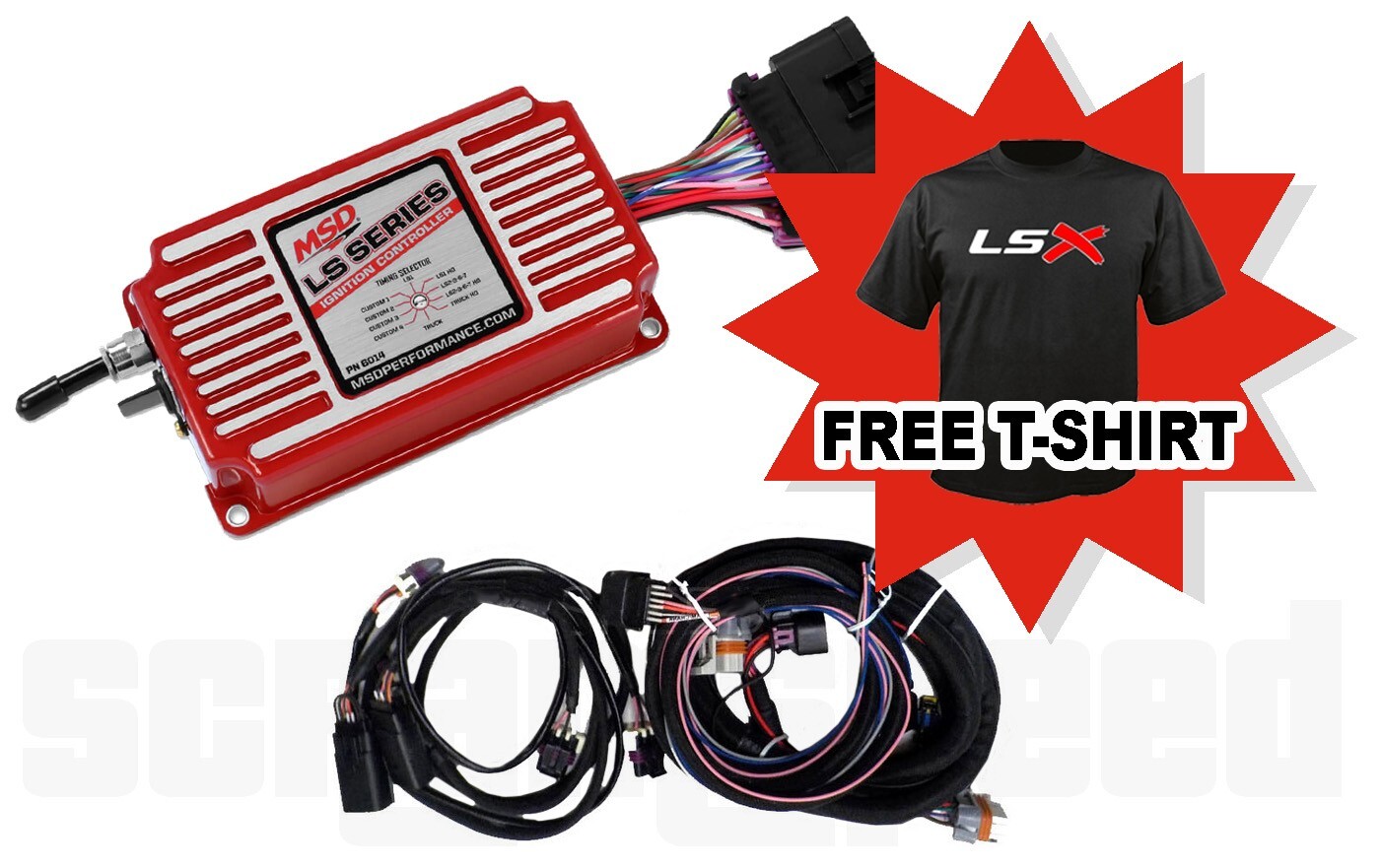

As the popularity of GM LS engines continue to grow, so does the demand for a powerful, reliable and easily adaptable ignition system. MSD has answered this demand with an updated and improved version of the popular 6LS box. Whether using a stock crate engine or building a custom powerhouse, the MSD LS Ignition provides the control you need to achieve the performance you want. Dial in the perfect tune for your LS using the easily adjustable preset timing curves or hookup to your computer and program a custom setup with our user friendly MSD View software.This box is also available in black! Check our other items.
Features:
- Fits most LS Engines
- No PC required for basic functionality
- Six preprogrammed timing tables for easy set-up
- Rotary selector switch allows timing changes on the fly
- Nitrous and boost compatible
- High speed data acquisition
- Fully Sealed direct plugin connectors
- Programmable step retard
- Launch and max rev limiters
- Optional coolant temperature sensor input
- Launch retard
- Idle timing control
- Individual cylinder timing
- Compatible with all MSD, Accel and GM LS coils
