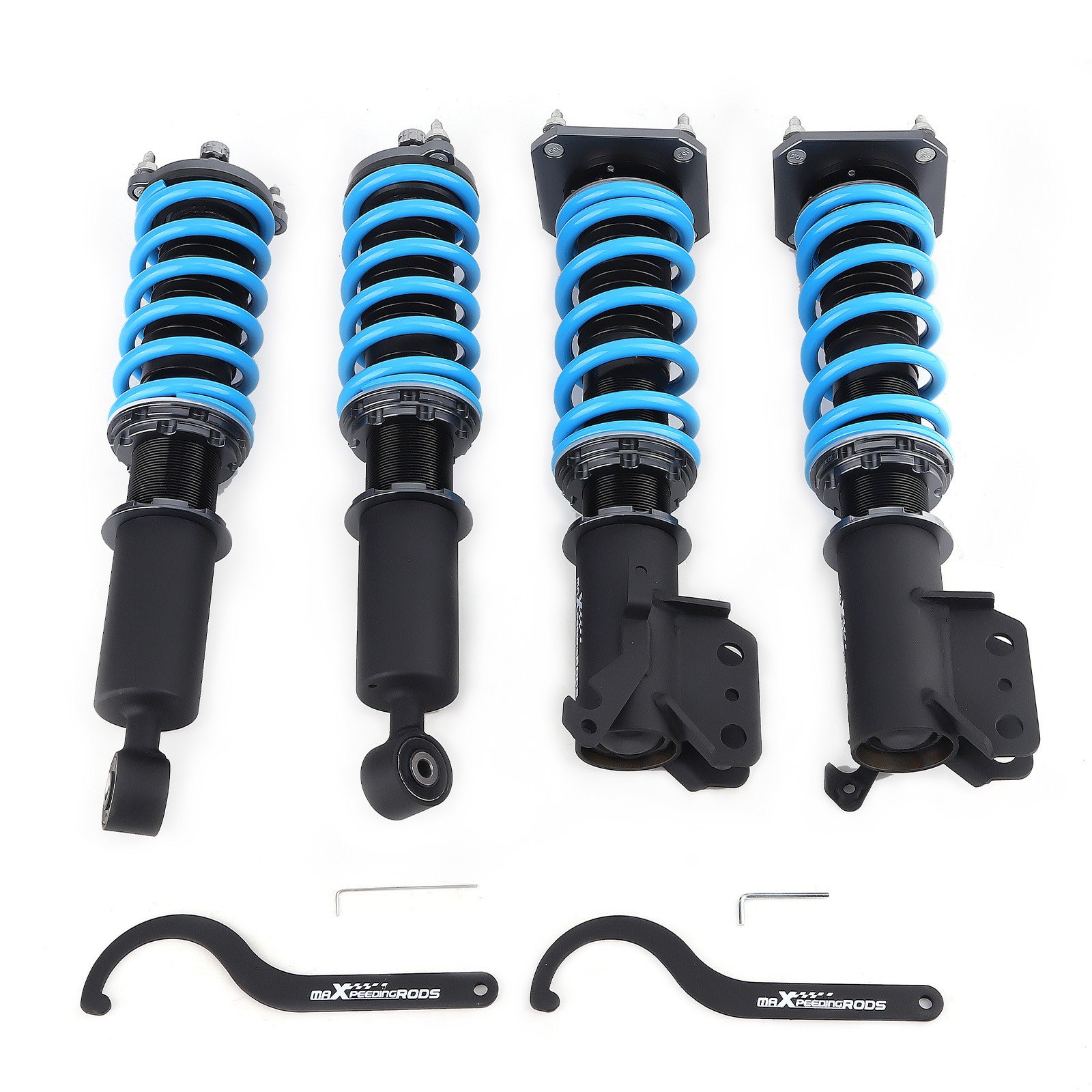

MaXpeedingrods 24 Step Damper Coilovers Shocks For Toyota Starlet / Tercel 91-99
All modifications must be installed by licensed mechanics and in compliance with your local modification
Adjustable Camber Plate with Pillow Ball Mount
Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.
Anodized Shock Body With Anti-Corrosion Coating
Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.
Drops From 1 to 3 Inch From Factory Ride Height
Full Threaded Absorber Tube Casing For Independent Height Adjustment.
Durable Cold Wound Steel & Heat Treated Coils
High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.
Adjustable Camber Plate with Pillow Ball Mount
Anodized Shock Body With Anti-Corrosion Coating
Drops From 1 to 3 Inch From Factory Ride Height
Durable Cold Wound Steel & Heat Treated Coils
Specifications
Front Top mounts Adjustable Camber Plate Adjustable height Yes, Lowering 1-3 inch Front Spring length 180 mm Rear Spring length 200 mm Front spring length 5 kg/mm (280 lbs/in) Rear spring length 6 kg/mm (336 lbs/in) Package Including 2 Front + 2 Rear Warranty 2 Years
Features
1. Lowered height adjustment from 1" - 3"which allow lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent
3.High Viscosity Index damper oil---make damping more stable and smooth in wide temperature range.
4. 24 Clicks of Rebound Adjustments -- This allows you the ability to perfectly dial in your coilovers system. For a nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.
5. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
6. High Rigidity 55CrSi Steel Cold-bent Coil Springs --- more than 600,000 times continuously test to assure it's high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper more well and be durable.
8. Top Camber Plate with Pillow Ball MountProvides More Precise Feel From Suspension And Steering.
9. Advanced Twin-Tube Technology ---provides excellent handling & control characteristics for most driving conditions
10. Anodized Shock Body With Anti-Corrosion Coating- Anodized Aluminum And Powder Coated Carbon Steel Parts
11. Test for the best---Every parts were tested on our professional machine before assembled and tested by our professional racers on road.
12. Clean room assembled---maintain higher level of accuracy and Toyota Starlet / Tercel top mount structure: Pillow ball with camber plate
Rear top mount structure: Standard rubber
Damping adjustable: Available, 24 levels of rebound damping force
Shock structure type: twin -tube
Camber adjustable: Available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 5 kg/mm (280 lbs/in)
Spring Rate Rear: 6 kg/mm (336 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 180 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Color: Black body with blue spring
Package included
2x Front coil-overs
2x Rear coil-overs
1x Allen wrench
2x C spanners
★30-day Money Back & 24-Month Replacement Guarantee. Please feel free to contact us if there is any question.
Height Adjustable Lowering Kit; 24 Clicks of Rebound Damping Force Adjustment; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering; Full 2 Years Warranty From Date Of Purchase.
