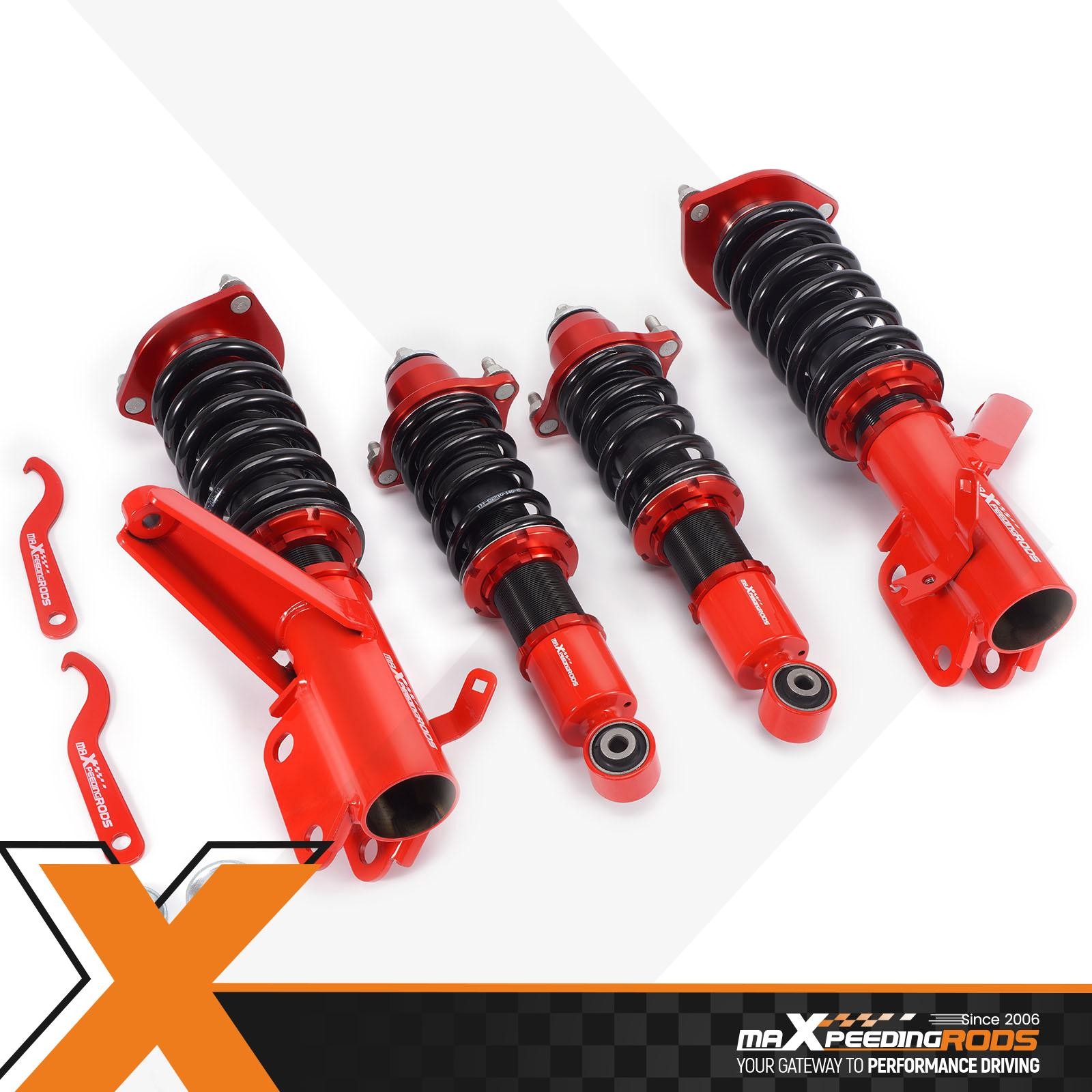

MaXpeedingrods Full Coilovers Suspension Lowering Kit For Honda Civic 2001-2005
All modifications must be installed by licensed mechanics and in compliance with your local modification
55mm Large Diameter Damper Body
High Oil Capacity For Superior Heat Dissipation, Consistent Damping Performance, And Extended Service Life.
CNC Machined T6 6061 Aluminum Top Mount
High-precision Pillow Ball Top Mount with Premium-Grade Sealed Spherical Bearings.
High Rigidity 55CrSi Steel Cold-bent Coil Springs
720-Hour Salt Spray Tested — Exceptional Corrosion Resistance.
Drops From 1 to 3 Inch From Factory Ride Height
Full Threaded Absorber Tube Casing For Independent Height Adjustment.
55mm Large Diameter Damper Body
CNC Machined T6 6061 Aluminum Top Mount
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Drops From 1 to 3 Inch From Factory Ride Height
Specifications
Top mount material Aluminum Adjustable height Yes, Lowering 1-3 inch Front Spring length 200 mm Rear Spring length 140 mm Front spring length 10 kg/mm (560 lbs/in) Rear spring length 6 kg/mm (336 lbs/in) Front spring inner diameter 70.5 mm Rear spring inner diameter 62 mm Package Including 2 Front + 2 Rear Warranty 1 Year
Features
Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver
High-precision Pillow Ball Top Mount with Premium-Grade Sealed Spherical Bearings.
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Weight Saving Aluminum Lower Mount Brackets
Anodized Shock Body With Anti-Corrosion Coating
Optimal Pre-Set Soft and Hard Settings - No Manual Damping Adjustment Required
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Honda civic VII DX/EX/GX/HX/LX/Si Coupe (EM2) 2001-2005
For Honda civic VII DX/EX/GX/HX/LX/Si Sedan (ES, ET) 2001-2005
NOTE：Not fit for Front top mount: Pillow ball
- Rear top mount: Standard rubber
- Damping adjustable: Not available
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 10 kg/mm (560 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Coilover overall length Front: 490-620mm
- Coilover overall length Rear: 395-410mm
- Front Damper Body Diameter: Φ55mm (2.17")
- Rear Damper Body Diameter: Φ50mm (1.97")
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 62 mm
- Spring length Front: 200 mm
- Spring length Rear: 140 mm
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring
Package included
2x Front coil-overs
2x Rear coil-overs
2x C spanners
★30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
- 100% Brand New, Never Used Or Installed- Independent Ride Height Adjustable- 55mm Large Diameter Damper Body- High Durability Bearing and Thrust Seat- Reinforced Rubber Bushing with T-6061 Billet Aluminum Upper Mount- 55CrSi Steel Cold-bent Spring- Balanced Comfort & Performance- Full 1 Year Limited Warranty From Date of Purchase.
