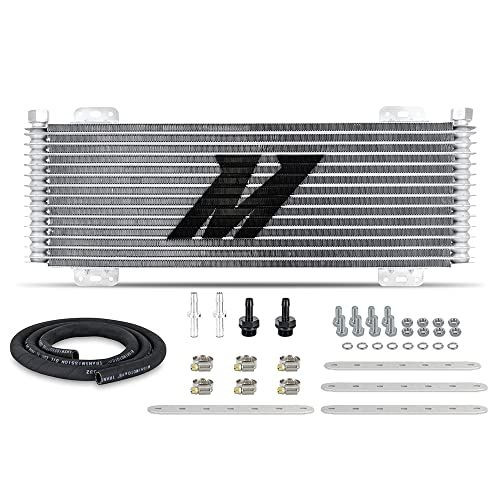

Mishimoto MMTC-SP-13N Universal 13-Row Stacked Plate Trans Cooler Kit
Product Details

• Size: Standard Size
• Material: Alloy Steel, Aluminum, Brass, Polyester, Stainless Steel
• Brand: Mishimoto
• Color: Silver
• Item dimensions L x W x H: 25 x 3 x 11 inches
• Connector Type: Barb
• Thread Size: 0.375 inch
• Exterior Finish: Painted
• Item Weight: 6 pounds
• Number of Pieces: 1

• STACKED-PLATE PERFORMANCE CORE - The 13-row stacked-plate heat exchanger design delivers efficient transmission fluid cooling with minimal pressure loss, keeping your automatic transmission running in the optimal temperature range under heavy load, towing, or high-performance driving conditions.
• HEAVY-DUTY 40,000 GVW RATING - Built for serious applications, this transmission cooler carries a 40,000 GVW rating, making it well-suited for trucks, SUVs, and performance vehicles subjected to demanding towing, off-road, or track use where factory cooling falls short.
• LEAK-FREE O-RING SEALED FITTINGS - Precision-machined 3/4"-16 to 3/8" hose barb adapter fittings feature an integrated O-ring seal, ensuring a reliable, drip-free connection to your transmission lines without the risk of seepage common with basic compression fittings.
• COMPLETE INSTALLATION KIT INCLUDED - Kit includes 50 inches of SAE J1532-rated transmission cooler hose with spiral polyester reinforcement for increased pressure tolerance, stainless-steel worm-gear clamps, 3/8" hose barb unions, and 4 universal mounting brackets with all necessary hardware.
• TRULY UNIVERSAL FITMENT - Designed to fit virtually any vehicle platform, this cooler is compatible with automatic transmission fluid, power steering fluid, engine oil, and other automotive fluids — making it a versatile upgrade for daily drivers, trucks, tow rigs, and performance builds alike.

Transmission heat is one of the leading causes of automatic transmission failure, and if you're pushing your vehicle hard — whether towing, off-roading, or tracking — your factory cooling solution may not be enough. The Mishimoto MMTC-SP-13N Universal 13-Row Stacked Plate Transmission Cooler is engineered to bring fluid temperatures under control with a highly efficient stacked-plate core measuring 22.85" x 7.10" x 1.25". The stacked-plate design maximizes surface area for heat dissipation while maintaining low pressure drop across the unit, keeping your transmission fluid in the ideal operating range. Rated to 40,000 GVW, this cooler is built for heavy-duty applications and comes complete with everything needed for installation: 50 inches of SAE J1532-rated cooler hose featuring spiral polyester reinforcement for superior pressure resistance, precision 3/4"-16 to 3/8" hose barb adapter fittings with integrated O-rings for a leak-free seal, stainless-steel worm-gear clamps, 3/8" hose barb unions, and four universal mounting brackets with hardware. The universal design accommodates a wide range of vehicles and fluid types including ATF, power steering fluid, and engine oil, giving enthusiasts and truck owners a flexible solution for any build.

---
