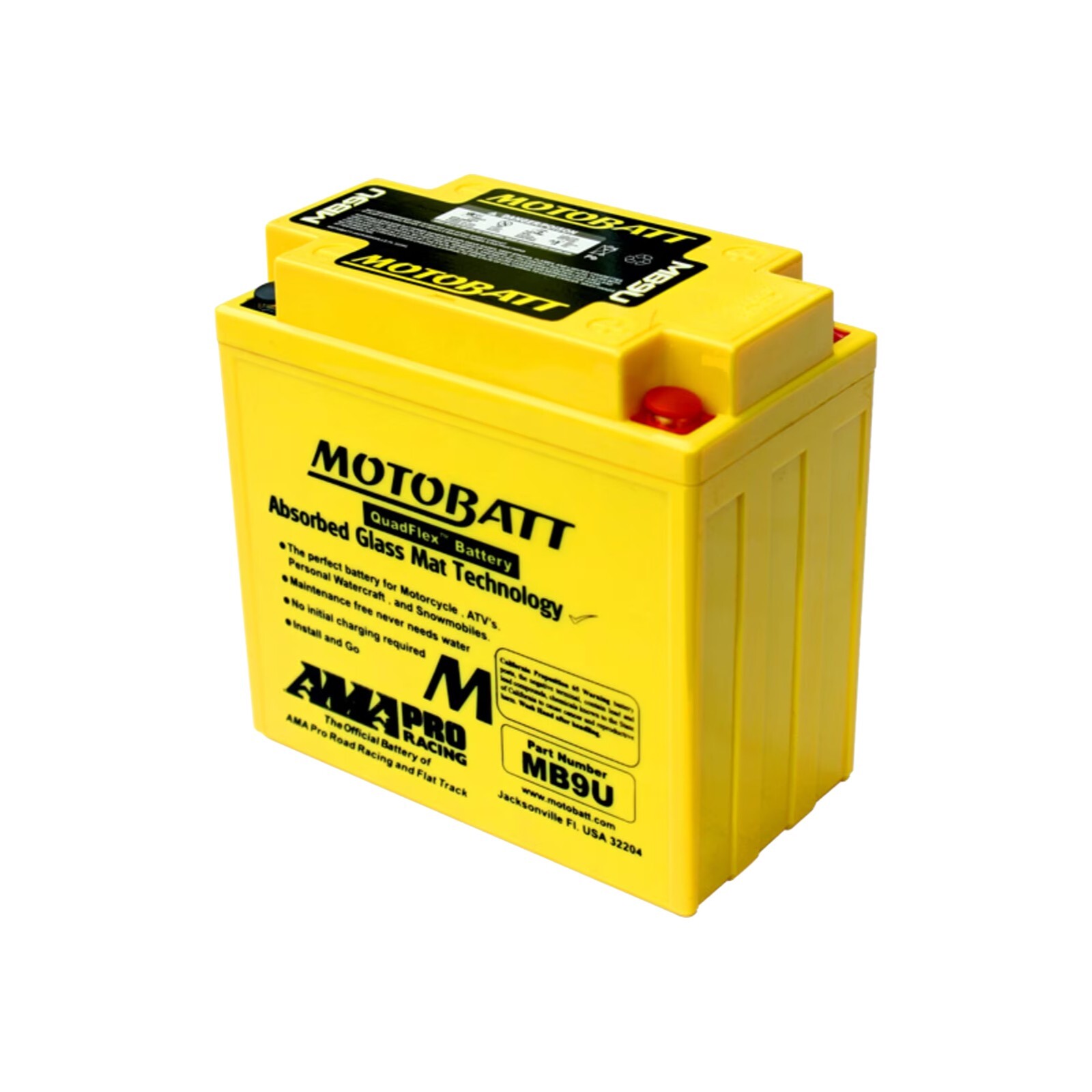

Battery Motobatt AGM MB9U
Replaces:Yuasa YB9A, YB9AA, YB9A2, YB9LA2, YB9B, YB9LB, YB9B2, YB9LB2, YB7A, YB7AA, YB7LA, YB7LB, 12N73A, 12N73B, 12N7D3B, 12N74A, 12N74B, 12N93A, 12N93A1, 12N93B, 12N94B1
WPS 491-1015
Motobatt Quadflex offers the best balance between AH (ampere hours) and CCA (Cold Cranking Amps -18C). Achieving this by increasing the size of the internal plates, by utilizing the unused space found in other batteries.This is made possible through our world wide patented innovated cell connection system. Additionally, we enhance the thickness of the grid, the density of the paste, and the weight (content) of the active material to maximize the capacity allowed by its size. Revolutionary to the Battery Market.Unique Benefits
- Power Experience up to 30% more capacity and power with the same size as competitor batteries, thanks to its exclusive design
- Safe No need to add acid and risk any accidental spillages
- Durable Thanks to its technology and high quality AGM it is extremely resistant to vibrations or weld breakages
- Maintenance Free Fully sealed and factory activated, it requires no maintenance other than keeping it charged in storage
- Ready to go With a voltage of over 12.5V the battery is ready to use right away
- New improved solid mounted terminals with threaded inserts
Battery (10HR)11AhWeight3.40kg / 7.48IbsDimensions (in / mm)L: 5.35(136) W: 2.99(76) H: 5.24(133)
TH1: 5.48(139) TH2: 6.1(154)Assembly Figure Terminal Locations4Terminals2, M6x2.5 (Part#MPT2)Screws4, M6X7 (Part#2xMPS2)Allen Wrench1, 4x4 (Part#MPAK2)Terminal Caps4, 12x5.5 (Part#2xMPC2)Spacer2, Bottom (Part# MPBS2) Spacer 1 = 6mm,
Spacer 2 =15mm, Total = 21mm
