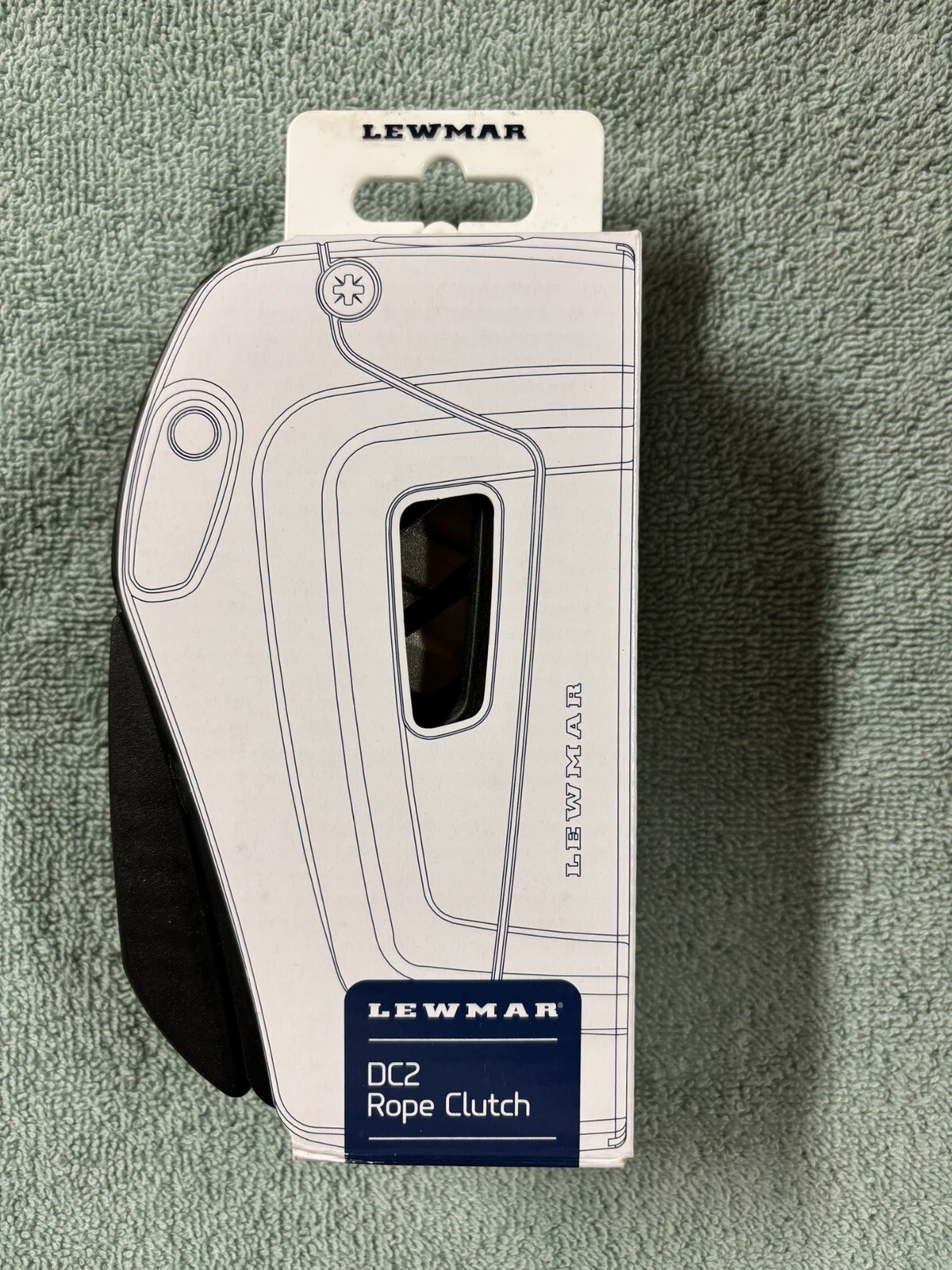

NEW! LEWMAR Rope Clutch DC2 Single for 8-10mm (5/16"-3/8") Lines 29101410BK
Brand New!!
In Manufacturers Packaging.
Lewmar Part # 29101410BK
List Price: $199.95
DESCRIPTION
This revolutionary new system has been independently tested time and again and has won awards for its innovative framework.
Throughout the history of rope clutch development, the cam was given teeth. This has always been a primary cause of line abrasion. Lewmar's clutch is an innovative approach to the line holding function. Shown in the image above right, rather than jamming the line (top), Lewmar's Domino mechanism flexes it (bottom) for better grip and less wear.
When selecting a clutch, it is best to select the size with an upper rope range close to the size of the line to be belayed. Doing so will ensure maximum deflection as the Domino flexes the line.
TECHNICAL INFORMATION
L (Length): 156 mm / 6 1/8 in
W (Width): 38 mm / 1 1/2 in
H(Height): 88 mm / 3 3/8 in
A (Line Entery): 26 mm / 1 in
B (Line Exit): 32 mm / 1 5/16 in
F (Fixings Length): 107 mm / 4 1/4 in
Description: 8-10 mm DC2 Single
Line Size: 500 kg / 1100 lb
Min Holding Load: 650 g / 23 oz
Approx Weight: 1200 kg / 2650 lb
