NIBBI Racing PWK 36mm high-performance carburetor. For Sale - New and Used

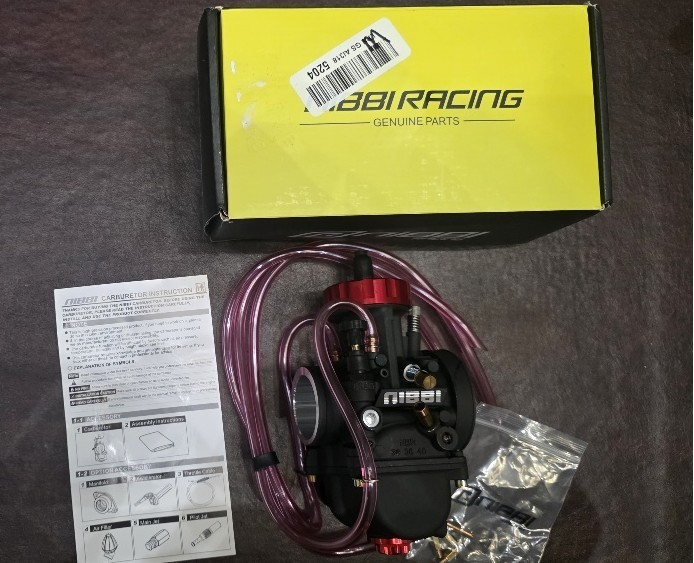

NIBBI Racing PWK 36mm high-performance carburetor - NEW Open BOX
NIBBI Racing PWK 36mm (Model: ITBEB-A101)
Key Product Specifications

• Bore Size: 36mm
• Choke System: Manual plunger (cable-pull or push/pull knob style)
• Slide Type: Chrome-plated semi-flat D-slide (reduces airflow turbulence)
• Material Construction: Lightweight cast aluminum alloy with a matte black anodized surface treatment
• Float Bowl Features: Large-capacity aluminum fuel bowl with an integrated red anodized quick-access drain plug for hassle-free main jet swaps
• Ventilation: High-flex, semi-translucent pink overflow and breather hoses that remain supple under extreme temperatures

Engine Fitment & Performance Impact

• Displacement Range: Ideally paired with 300cc to 450cc 2-stroke or 4-stroke single-cylinder engines (e.g., dirt bikes, racing pit bikes, ATVs, and karts).
• Airflow Efficiency: The optimized, smooth-bore intake bell dramatically increases airflow velocity, delivering smoother power in the mid-to-high RPM bands.

Mounting Dimensions

• Intake Manifold Boot (Engine Side Outer Diameter): ~46mm
• Air Filter Connection (Airbox Side Outer Diameter): ~62mm

---
