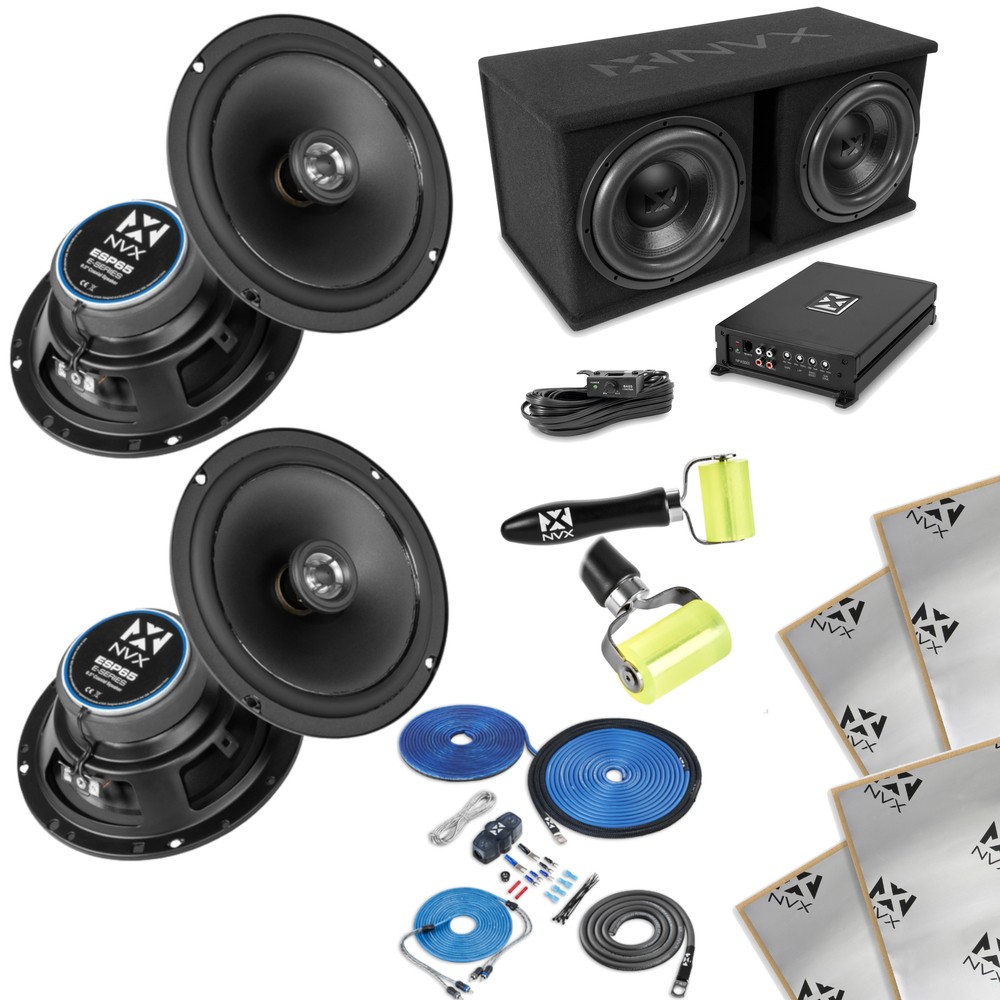

NVX Audio Upgrade Kit - NPKG212 Bass Package with 2 Pair 6.5" SpeakersIncludes Loaded Dual 12" Slot Ported Box, Monoblock Amp w/ Remote, 2 Pair 6.5 Coaxial Speakers, Amp Kit, Sound Damping, and class="comboProductHeaderName">NVX NPKG212 Dual 12" Bass Package
1000W Max (500W RMS) Loaded Dual 12" Sub Bass Kit with Slot Ported Box, Monoblock Amp & Remote
Quantity: 1
Package Features:
- Dual 12" Ported Loaded Subwoofer Enclosure with Amplifier
- 1000W Max (500W RMS) Class D Monoblock Amplifier
- Includes Remote Bass Level Controller
- Precision-engineered CNC Ported MDF Enclosure
- Works with Both Factory and Aftermarket Audio Systems
- 8AWG Gauge Power and Ground Wiring is Recommended for Installation
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Subwoofer Features:
- 12" Single Voice Coil 4-Ohm Subwoofers
- Non-Pressed Paper Cone
- High Roll Foam Surround with Black Stitching
- 2.0" High Temperature Voice Coil
- Ferrite Magnet Motor Structure
- Frequency Response: 20 - 200Hz
- Sensitivity: 87dB
Amplifier Features:
- Class D Monoblock Amplifier
- RMS Power Rating:
- Peak: 1000watts
- RMS: 500watts
- Low-Pass Crossover Frequency: 40 - 200Hz
- Bass Boost: 0 - 12dB
- Subsonic Filter: 20 - 50Hz
- RCA Preamp Output: 1 pair
- Input sensitivity: 100mV - 6volts
- Fuse Rating: 40A x 2
- Includes Remote Bass Level Controller
Enclosure Features:
- Preloaded Dual 12" Slot Ported Enclosure
- 3/4 MDF (Medium Density Fiberboard) Construction
- Total Box Volume: 2.50cubic feet
- Tuning Frequency: 30Hz
- Black Carpet with Black NVX Stitched Logo
- Spring Loaded Push Terminals
- Final Impedance: 2-ohm
- Enclosure Dimensions: 31.89" L x 14.57" W x 14.96" H
360W Peak (120W RMS) 6.5" E-Series 2-Way Coaxial Speakers with 13mm PEI Dome Tweeters
Quantity: 2
Product Details:
- 6-1/2" E-Series 2-way Coaxial Car Speakers
- Power Handling:
- Peak: 360watts per pair / 180watts each
- RMS: 120watts per pair / 60watts each
- CEA-2031 compliant
- Polypropylene cone material
- Rubber speaker surround
- 1/2" PEI (Polyetherimide) Dome Tweeters
- 1" Voice coil
- Ferrite magnet motor structure
- Top-mount Depth: 2.5"
- Cutout Dimensions: 5.7"
- Impedance: 4ohm
- Frequency Response: 65 - 20,000Hz
- Sensitivity: 91dB
- Authorized Internet Dealer
- MFR #: ESP65
- 1-year Manufacturer's Warranty
Priced Per Pair
NVX E-Series owner's manual
Full Spec 8 Gauge 100% (OFC) Oxygen Free Copper Complete 2-Channel Amplifier Wiring Kit with RCA for Amplifiers up to 800 Watts
Quantity: 1
Product Details:
- 8 Gauge 2-Channel X-Series Complete Amplifier Installation Kit
- Designed for car audio systems up to 800 watts RMS
- Made from 100% Oxygen-Free Copper (OFC)
- Tinned conductors for corrosion resistance
- Pre-installed black nylon mesh covering protects the power wire from damage
- Solid brass and satin chromed ANL/Mini-ANL fuse holder offers ideal protection for high-powered systems
- Pre-terminated seamless power and ground ring terminals provide reliable performance
- Full spec power and speaker wire meet or exceed American Wire Gauge standards
- CEA-2015 and BC5W2 compliant
- V-Series RCA Interconnect Cable
- Shielded noise-rejecting coaxial construction provides protection against interference
- Split-tip silver-plated ends offer high-quality performance
- Molded ends equipped with colored channel identifiers for easy recognition
- Twisted-pair construction featuring two conductors per channel
- Includes an assortment of wire termination hardware and cable ties
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Kit includes:
- 17 ft. Frosted Blue 8 gauge power wire with seamless crimp ring terminal
- 3 ft. Frosted Black 8 gauge ground wire with seamless crimp ring terminal
- 17 ft. Clear 18 gauge remote lead wire
- 20 ft. Frosted Black/Blue 16 gauge speaker wire
- One 16.4 ft. 2-channel dual twisted construction RCA interconnect Cable (NVX XIV25)
- One NVX XMANL04 ANL/Mini-ANL Fuse Holder with 60 amp Mini-ANL fuse
- One Black rubber firewall grommet
- Two 8 Gauge Nickel Plated spade terminals
- Four 18 Gauge Spade terminal
- Two 18 Gauge Red butt connectors
- Four 16 Gauge quick disconnect
- Five 16 Gauge Nickel Plated spade terminals
- Two Heat Shrink tubes with the NVX logo
- Ten 6" Black zip ties
Speaker Kit - 1.38 Square Feet of Sound Damping (Sound Deadening) Material (Two 10" x 10" Pieces)
Quantity: 2
Product Features
- Two 10" x 10" Pieces of Sound Dampening Material
- 90.55mil thick (2.3mm)! There are cheaper, inferior solutions at 50-80mil, but we do not recommend that thin of a solution as it will not perform as well.
- Great sound damping for installing with car door speakers
- 1.38 Square feet total
- Made from 100% Butyl Rubber
- Eliminates road noise
- Quiets vibrations
- Increases sound quality and output of car audio system
- Stops rattles
- Increases SPL
- Reduces heat
- Easy to form aluminum conforms to desired area of vehicle with ease
- Four step peel and stick design for easy installation
- Up to 30% thicker than the leading competitors
- Dimensions (each piece): 10"L x 10"W
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
Universal, Professional Heavy Duty Roller for Sound Damping (Sound Deadening)
Quantity: 1
General Features
- Universal - works with NVX and other brands
- Professional, Heavy Duty Roller Tool (used at car stereo shops worldwide)
- 2" Solid Rubber Roller
- Contoured wood-grip handle for comfortable handling
- Soft Urethane Rubber Won't Scratch Surfaces
- Thick Plated Steel Frame
- Sturdy wood and metal construction for durability
- Authorized Internet Dealer
- 1-year Manufacturer's warranty
