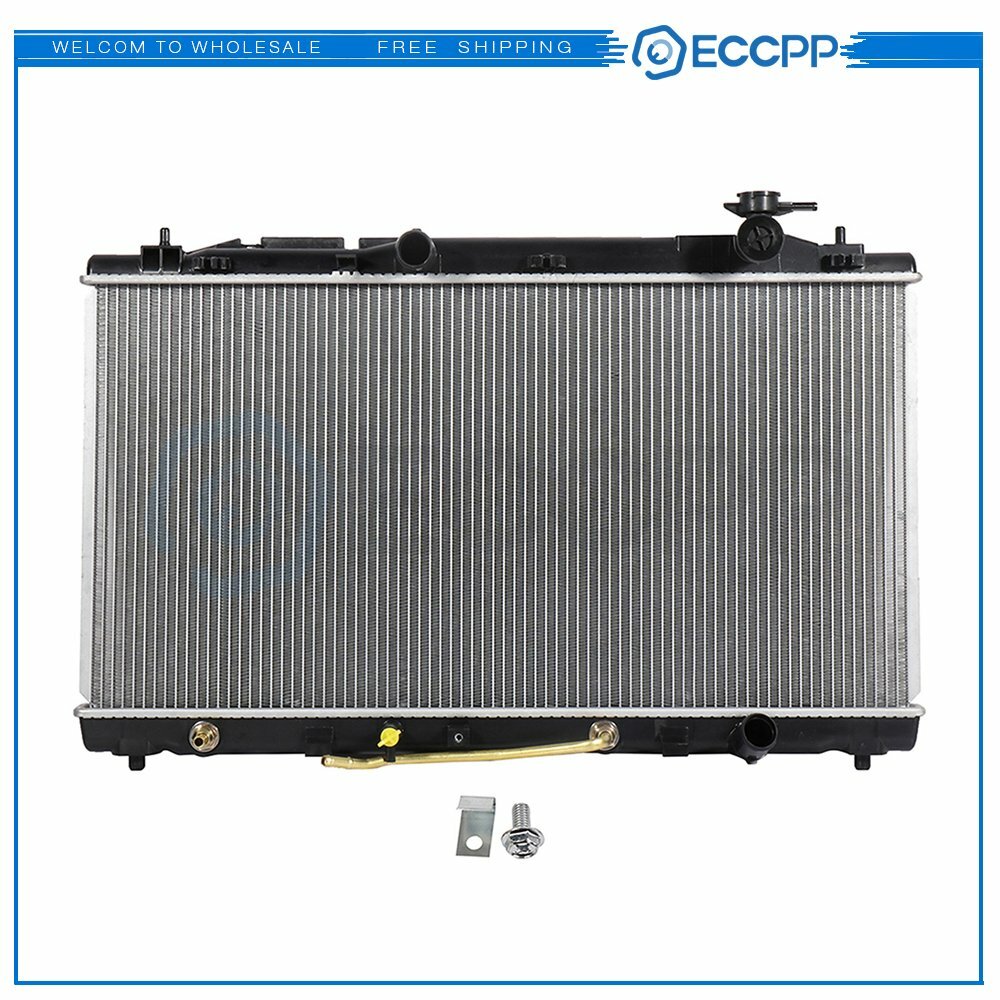

New Aluminum Radiator for 2005 2006 2007 2008-2012 Toyota Avalon Fits CU2817 For Sale - New and Used

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

New Aluminum Radiator for 2005 2006 2007 2008-2012 Toyota Avalon Fits CU2817:
$67.38

Toyota Avalon

2007-2011 Toyota Camry

2009-2010 2012-2016 Toyota design to ensure exact fit, form and function for an easy drop-in installation;

-Built with high density multi-lowered fins for maximum cooling efficiency;

-ISO 9001 certified manufacturing plants;

-Direct Replacement;

-Improve Cooling Efficiency;

-100% Leak Tested;

-Plastic tanks with aluminum core;

-Built to strict quality control standards;

How to clean radiator:

New Aluminum Radiator for 2005 2006 2007 2008-2012 Toyota Avalon Fits CU2817 Toyota Avalon

2007-2011 Toyota Camry

2009-2010 2012-2016 Toyota Venza

Features:

-OE design to ensure exact fit, form and function for an easy drop-in installation;

-Built with high density multi-lowered fins for maximum cooling efficiency;

-ISO 9001 certified manufacturing plants;

-Direct Replacement;

-Improve Cooling Efficiency;

-100% Leak Tested;

-Plastic tanks with aluminum core;

-Built to strict quality control standards;

How to clean radiator:

1.Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake fromthetank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.

2.After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.

How to replace the radiator:

1.Disconnect the battery.

2.Drain the radiator fluid into a suitable container.

3.Remove the old radiator:

-Take off any plastic covers around the radiator.

-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.

-Disconnect the radiator hoses from the radiator.

-Disconnect the transmission cooling lines from the bottom of the radiator.

-Remove any clamps, brackets, or screws holding the radiator inside its frame.

-Lift the radiator up and out of the car.

4.Install the new radiator:

-Slide the new radiator into place.

-Connect any clamps or brackets that hold the radiator in place.

-Connect the transmission cooling lines carefully.

-Connect the engine cooling hoses to the radiator.

-Replace the fan and fan shroud.

-Reconnect the fan electrical connection.

-Replace the plastic covers.

5.Fill the radiator with fluid.

6.Check your work to make sure that there are no leaks.

(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)

Note: Do please keep children and pets away when replacing the operation, the vehicle normal temperature 60 to 80 degrees.

2.Add detergent if the tank is too full can take some brand new radiator

Item SpecificsBrand ECCPPManufacturer Part Number E125093CPWarranty 1 YearInterchange Part Number CU2817,TO3010300,16400AD010,Engine Rad,Replacement RadiatorCustom Bundle NoModified Item NoFitment Type Direct ReplacementPlacement on Vehicle FrontType RadiatorMaterial AluminumCore Material AluminumTank Material PlasticQuantity 1PC RadiatorLength 30.24in.Height 15.75in.Thickness 0.63in.Inlet Diameter 1 3/8in.Outlet Diameter 1 3/8in.Other Part Number RAD2817,engine radiator,new,cooling radiator,air radiatorSuperseded Part Number TO3010300,16400AD010Radiator Cap As Picture showsStyle DownflowRow Count 1 RowEngine Oil Cooler Included NoColor Black or SilverNotes Please verify the item fits your vehicle or not by compatibilityTransmission Oil Cooler Included YesHardware Included Nuts,Oil Cooler FittingsNote 1 Fit For vehicle built in USA Item SpecificsBrand ECCPPManufacturer Part Number E125093CPWarranty 1 YearInterchange Part Number CU2817,TO3010300,16400AD010,Engine Rad,Replacement RadiatorCustom Bundle NoModified Item NoFitment Type Direct ReplacementPlacement on Vehicle FrontType RadiatorMaterial AluminumCore Material AluminumTank Material PlasticQuantity 1PC RadiatorLength 30.24in.Height 15.75in.Thickness 0.63in.Inlet Diameter 1 3/8in.Outlet Diameter 1 3/8in.Other Part Number RAD2817,engine radiator,new,cooling radiator,air radiatorSuperseded Part Number TO3010300,16400AD010Radiator Cap As Picture showsStyle DownflowRow Count 1 RowEngine Oil Cooler Included NoColor Black or SilverNotes Please verify the item fits your vehicle or not by compatibilityTransmission Oil Cooler Included YesHardware Included Nuts,Oil Cooler FittingsNote 1 Fit For vehicle built in USA
