This listing includestwo new items,thePAC LPA-E.4advanced 4-channelactive line output converter with remote control,andthePAC LPHFD21LocPro AdvancedAudio IntegrationT-Harness,the perfect 4-channelinstallation combo for aftermarket amplifiers a24-Pinradio connector.
PAC'sLPHFD21LocPRO Advanced T-harness makesamplifier installation a lot easier by giving you access to the speaker-leveloutput signals from your Ford factory radio. You can usethisT-harness to connect to an amplifier or signal processor withspeaker-level inputs, or to a line output converter with an amp.
PAC designed this vehicle-specific T-harness to work withtheir LPA LocPRO Advanced line output converters, but it'll also work withalmost any sound processor or line output converter, as well as most amplifierswith high-level inputs. The harness also supplies the connection wires forlow-power constant 12 volts (fused for your protection), accessory power,ground, and remote turn-on leads for a system devicelike an activesignalprocessor.
TheLPA-E.4is a4 inputsand4 outputsactive line output converter that featuresincredible input power capabilities, enhanced output controls, and noise isolation countermeasures. Combined with the newest vehicle systems' compatibility, these features are the gateway for your audio aspirations.
This converter lets you add an amp without affecting the existing factory system— you justtap into the wires going to a pair of full-range speakers for the LPA's inputs. Selectable load resistance and ground isolation options ensure trouble-free OEM integration. A gain control with a clip light adjusts the signal level for optimum strength and fidelity. A low-pass filter and bass boost fine-tune the bass to sound its best.
What’s included?

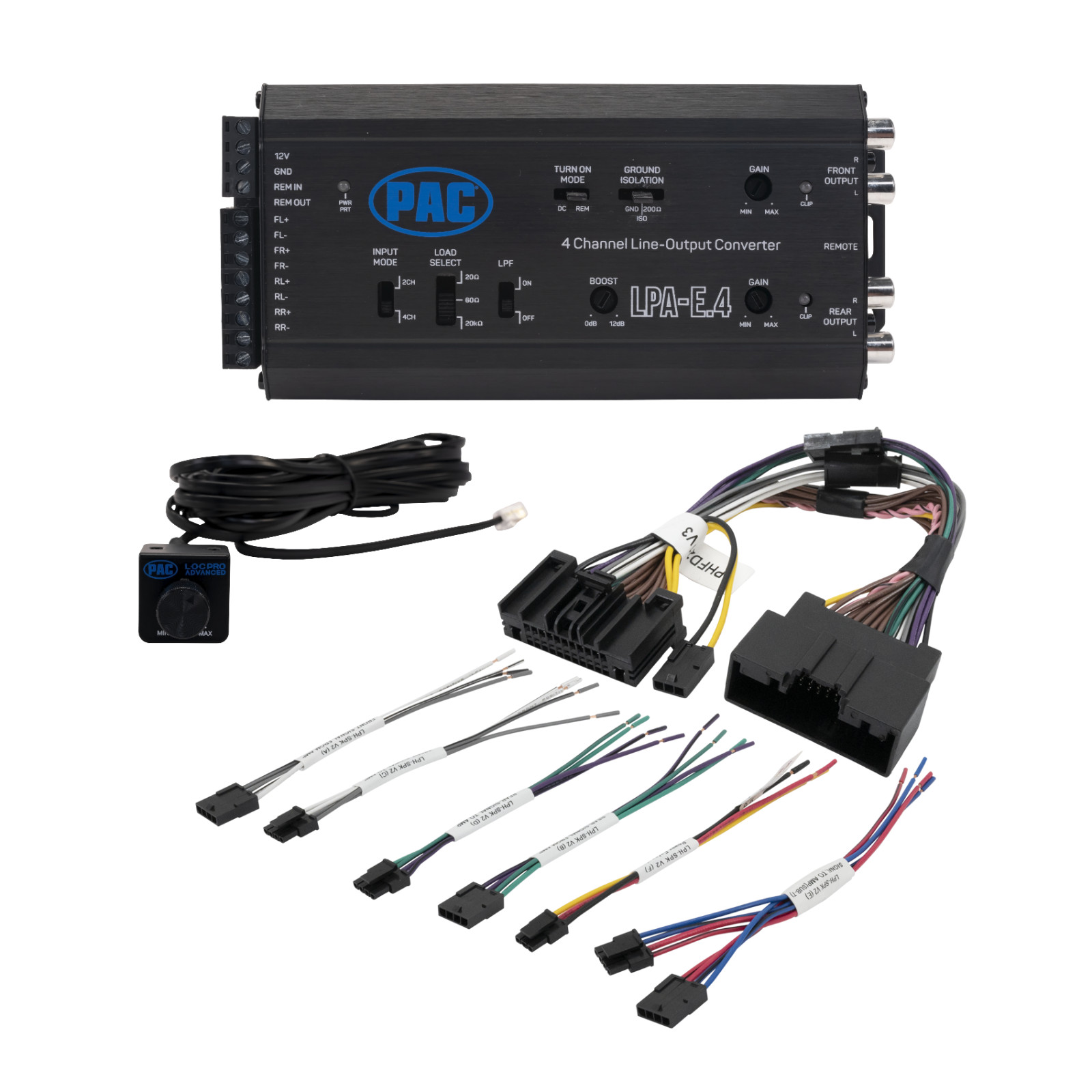

- LPA-E.44-channel advanced line output converter
- LPA-REMBass level controller
- LPHFD21 V3 Main 24-Pin wiring 8"harness
- Clearly labeled pigtail harnesses
- LPH-SPK V2-A Harness (front signal from amp)
- LPH-SPK V2-B Harness (rear signal from amp)
- LPH-SPK V2-C Harness (front signal to amp)
- LPH-SPK V2-D Harness (rear signal to amp)
- LPH-SPK V2-E Harness (sub signal T-harness to amp)
- LPH-SPK V2-F Harness (power extension)
- 2 Phoenix terminals (installed)
- Remote mounting bracket
- Four 5/8" Screws
- Two 1/2" Screws
- Owner's manual
- LPH Harness Instruction Guide
Compatibility Requirements/Notes:
- This harness is designed to work on OEM NON-AMPLIFIED systems.Not compatible in vehicles equipped with a factory amplifier.
- Only compatible with Ford vehicles equipped with a factory 24-pin radio conector.
- Four channel converter has 4 inputsand 4 outputs.
- The power and ground wires in this harness will only support a low-current accessory, like an active line output converter or digital signal processor, and should not be used to power an amplifier.
VehicleCompatibility
Make
Model
Year(s)
Ford
C-Max
2013-2017
Ford
Edge
2011-2020
Ford
Escape
2013-2019
Ford
Expedition
2015-2020
Ford
Explorer
2011-2019
Ford
F-150
2013-2020
Ford
F-250
2013-2019
Ford
F-350
2013-2019
Ford
F-450
2013-2019
Ford
Flex
2013-2019
Ford
Focus
2013-2018
Ford
Fusion
2013-2020
Ford
Mustang
2015-2020
Ford
Taurus
2013-2019
***Only compatiblewith the above listed vehicles***
LPHFD21Features
- Simplifies audio equipment installation.
- Provides all necessary high-level input and speakers outputs for aftermarket audio equipment
- Can be used with: PAC LocPRO Line Output Converters, and Audiocontrol's Amplifiers, DSPs andLine Output Converters.
- Available 17' extension for further flexibility(LPHEXT17)(Not included)
LPA-E.4Features
- Aluminum housing
- 40V / 400W maximum @ 20kΩ
- Low pass filter (CH3/4 only)
- Bass boost (CH3/4 only)
- Dual variable gain controls
- Selectable ground (common, ISO or 200Ω)
- Load selections: 20Ω, 60Ω, 20KΩ
- Clip indicator
- Turn-on mode selection (remote and DC)
- 9.5V Output voltage
- Removable quick-connect with screw-type terminal.
- Wide range DC offset
- 4 Channel IN & 4 Channel OutUnfilteredOR2 Channel IN & 4 Channel OutUnfiltered
- Independent Clip indicator for Front and Rear
*LPA-REM Bass level controller included*
Model Number:
LPA-E.4
Channels:
4 IN – 4 OUT
Operating Voltage:
9V – 16V
Max Input Level (20kHΩLoad Setting):
40V / 400W at 4 Ohms
Auto Turn On:
DC Offset / Remote
Output Voltage MAX at 13.8V:
9.5V RMS
Turn On Trigger (DC-Offset):
3V-7V
Load Input Impedance:
20Ω, 60Ω, 20kΩ
Output Impedance:
<120Ω
Variable Gain Adjustment:
-28dB-+1dB
Signal to Noise:
>110dBA at 6.4V Output
THD+N:
<0.01%
Input Sensitivity:
0.5V-20V
Frequency Response:
10Hz – 20KHz
Current Draw (Max):
110mA
Low Pass Filter:
<250Hz (Rear Channels)
Bass Boost:
0dB to +12dB
Clip Indicator:
Yes
Remote Level Control:
0dB - 30dB
Chassis Type:
Aluminum Extrusion
Terminal Gauge:
18AWG / Quick Connect
Additional Notes
We recommend having a professional certified technician handle the installation. For any questions or concerns about the product, please contact us through the "Contact Seller" feature for technical support or customer assistance.
