PLM Power Driven Tucked Radiator XL + 2 SPAL Fans Fits Honda B-Series, K-Series:
$628.98

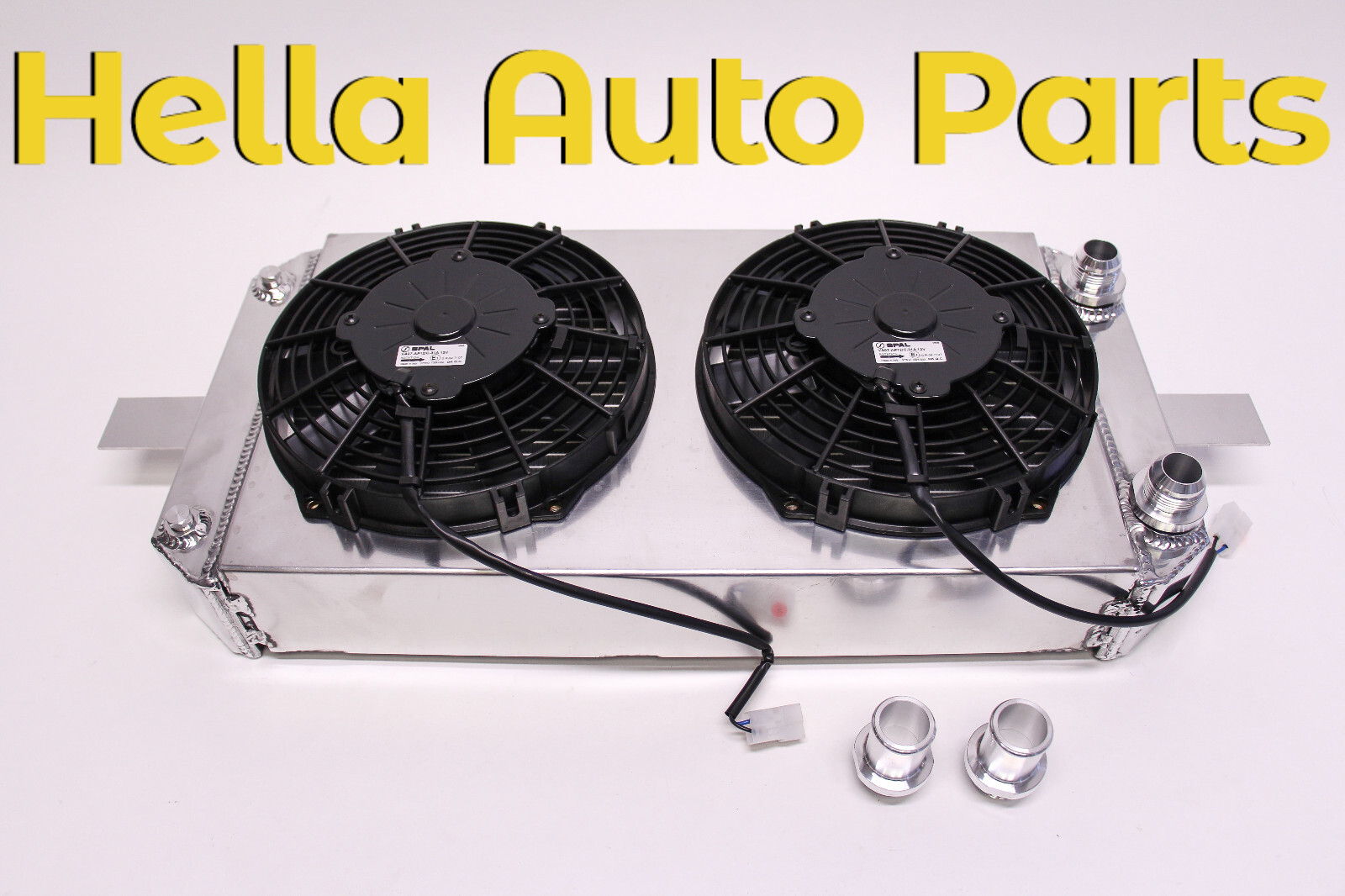

PLM Power Driven Tucked Radiator XL
with 2 SPAL Fans - For Honda fitment for Honda B-Series, K-Series cars.

Honda Acura B-Series B20B B20Z B16A B18C1 B18A B18B B18C5

Honda Acura K-Series K20 K24 K20A K20Z

Also used as a universal fitment for many other vehicles. (Refer to size dimension under the PLM Power Driven Tucked Radiator XL for Honda and Acura vehicles. From the successful introduction of our tucked radiator, we are pleased to offer the XL (extra large) version of this radiator for those in need of increased cooling capacity.

Designed to be a direct replacement for your factory radiator, our Tucked Radiator XL is the perfect upgrade for those looking to maximize engine cooling efficiency. The radiator features a slim design that allows for additional clearance in tight engine bays, while the high-quality aluminum construction ensures durability and longevity.

We take pride in providing the best value for our customers, and the PLM Power Driven Tucked Radiator XL is no exception. This radiator offers superior performance at an unbeatable price point, and is compatible with both manual and automatic transmissions.

Why is ours better? Our design uses threaded inlet and outlet fittings, that means you can use AN sized or clamp-on style hoses. You can even use other adapter sizes such as 16AN to 20AN fitting. Our mounting brackets are not weldedto the coreso you can flip the brackets around or adjust it for more universal fitment.

A must have if you want to utilize all the engine space and tuck the radiator underneath the radiator support.
Features:

Removable mounting brackets & bolted on, allowing the radiator to be easily adapted for various applications.
Removable fittings for OEM style hose fitting or AN fittings.
SPAL fans on this XL version uses the 9" inch size so it is much larger and flows more cfm!
Overall length: 30.5" with end brackets.
Core thickness is 2.25" and the end tanks are 3" thick.
Mounting brackets are removable & bolted on, so it can be used for other (2) x 16AN fittings.
Two (2) x slip on fittings.
Mounting brackets
Brackets hardware
Two (2) 9" SPAL Fans

Specifications:

Size: 24" x 11.5" x 4.0" (without fans)
Size: 24" x 11.5" x 5.5" (with fans)
Overall length: 30" with end brackets
Drain plug size is 1/4 NPT

Installation Notes

If you use it for other universal application, it is strongly recommended that you use a set of rubber grommets for vibration isolation.
Excessive vibration on the bracket and/or mounting holes can cause breakage.
