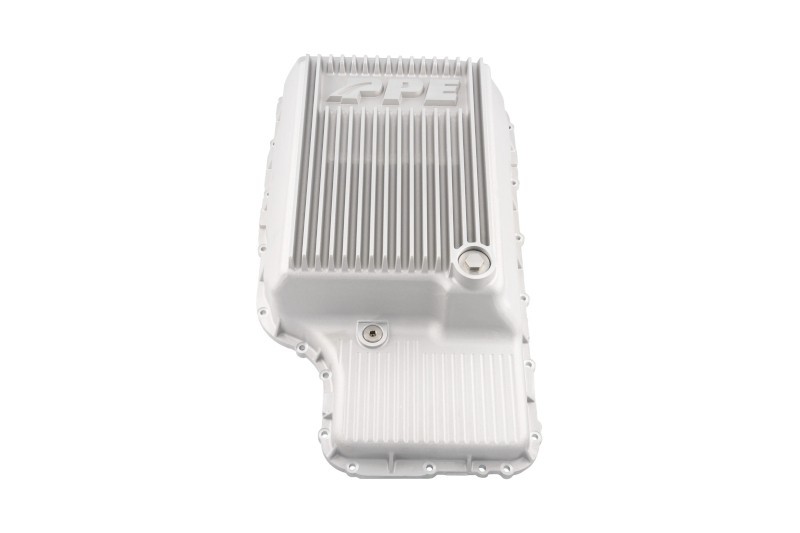

PPE Heavy-Duty Cast Aluminum Transmission Pan – 10R140, Raw FinishFeatures & Benefits
Transmission Compatibility: Designed for Ford 10R140 10-speed automatic transmissions paired with 6.2L and 7.3L gasoline engines.
Increased Fluid Capacity: Adds approximately 5 quarts of transmission fluid capacity over the factory pan.
Heavy-Duty Construction: Manufactured from high-strength A356.0-T6 cast aluminum alloy.
Enhanced Cooling: Deep external cooling fins increase surface area to help dissipate transmission heat.
Internal Baffles: Help control fluid movement during acceleration, braking, and off-road driving.
Magnetic Drain Plug: Stainless steel magnetic drain plug helps capture ferrous metal particles during normal operation.
Integrated Standpipe: Designed to simplify transmission fluid filling.
Sensor Port: Includes a 1/8-inch NPT port for a compatible temperature sensor or other suitable sensor.
Factory Component Compatibility: Designed to work with the OEM transmission gasket and filter.
Raw Aluminum Finish: Provides a clean, industrial appearance.
Product DescriptionImproved Cooling and Increased Fluid Capacity
Help manage transmission temperatures under demanding operating conditions with the PPE Heavy-Duty Cast Aluminum Transmission Pan for compatible Ford Super Duty trucks equipped with the 10R140 10-speed automatic transmission.
Towing, hauling heavy loads, and extended operation can place additional thermal stress on transmission fluid and internal components. This deep transmission pan adds approximately 5 quarts of fluid capacity over the factory pan, increasing the total fluid volume to help improve thermal stability during demanding use.
Deep external cooling fins provide additional surface area to help dissipate heat, making this pan a practical upgrade for trucks used for towing, hauling, and other heavy-duty applications.
Durable Cast Aluminum Construction
Manufactured from high-strength A356.0-T6 aluminum alloy, the PPE transmission pan features a rigid construction designed for demanding truck applications. Its deep external cooling fins help transfer heat away from the transmission fluid while providing a distinctive heavy-duty appearance.
Internal baffles help reduce fluid movement during acceleration, braking, and off-camber driving. A magnetic stainless steel drain plug helps collect ferrous metal particles during normal transmission operation, while the integrated standpipe is designed to simplify fluid filling and servicing.
The pan also features a 1/8-inch NPT sensor port for compatible sensor installations. Finished in raw aluminum, it is designed to work with the factory transmission gasket and filter.
Vehicle Fitment
Listed applications:
2020–2026 Ford F-250 Super Duty
2020–2026 Ford F-350 Super Duty
2020–2026 Ford F-450 Super Duty
2020–2026 Ford F-550 Super Duty
Engine and transmission requirements:
Important Fitment Notes
Fits 10R140 transmissions only. Not compatible with the 10R100 transmission.
Certain 2025 and newer Ford Super Duty trucks equipped with the 7.3L engine may use either the 10R140 TorqShift or the 10R100 TorqShift-G transmission. These transmissions require different transmission pans and are not interchangeable.
PPE part number 3280534XX is listed for the 10R140, while 3280536XX is listed for the 10R100. Verify the exact part number and transmission type before ordering.
Confirm your vehicle\'s model year, engine, and transmission configuration to ensure proper fitment.
Package Contents
PPE Heavy-Duty Cast Aluminum Transmission Pan
Magnetic Stainless Steel Drain Plug
Integrated Standpipe and applicable built-in features
Note: Please verify the exact vehicle application and transmission type before purchase. Installation should follow the manufacturer\'s instructions and recommended fluid-level procedure.
