PowerMax PM4-75LK 75-Amp AC-to-DC Converter / Smart Battery Charger
PowerMax PM4-75LK heavy-duty AC-to-DC power converter, smart battery charger, and regulated DC power supply. Designed for RVs, campers, travel trailers, enclosed trailers, battery banks, marine/12V applications, and other compatible 12-volt electrical systems.
IMPORTANT — PLEASE READ BEFORE PURCHASING
THIS IS AN AC-TO-DC CONVERTER / BATTERY CHARGER. IT IS NOT A POWER INVERTER.
This unit takes standard 105–130V AC household/shore power and converts it to regulated low-voltage DC power.
AC household/shore power → 12V DC system/battery = YES
12V battery → 120V household AC power = NO
If you need a device that takes power from a 12V battery and produces 120V household AC electricity, you need an inverter, not this converter.
Features & Specifications
* Brand: PowerMax
* Model: PM4-75LK
* Type: AC-to-DC Power Converter / Smart Battery Charger / DC Power Supply
* AC Input: 105–130V AC
* Maximum Continuous DC Output: 75 Amps
* Maximum Continuous DC Power: Approximately 1,095 Watts
* Smart Charging Voltages: Approximately 14.6V / 13.6V / 13.2V DC
* Adjustable Fixed Power Supply Range: Approximately 13V–16.5V DC
* Maximum AC Input Current: Approximately 13 Amps
* Typical Efficiency: Greater than 85%
* Cooling: Proportional internal cooling fan
* Reverse-Polarity Protection
* Overload Protection
* Thermal Protection
* Heavy-Duty Metal Enclosure
* Approximate Dimensions: 7.8” × 9.5” × 3.5”
* Approximate Weight: 8 lbs.
* Color: Black
* MPN: PM4-75LK
Smart Battery Charging
The PM4-75LK is more than a basic fixed-voltage power supply. It is designed to provide intelligent charging for compatible 12V battery systems.
The multi-stage charging system uses different voltage levels during the charging/maintenance process, including approximately 14.6V, 13.6V and 13.2V DC.
The unit also offers an adjustable fixed power-supply mode of approximately 13V–16.5V DC for compatible applications.
Battery chemistry and charging requirements vary. Always verify the appropriate charging voltage/current requirements for your specific battery or battery bank before installation.
Common Applications
Suitable for compatible systems such as:
* RVs and motorhomes
* Travel trailers
* Campers
* Enclosed trailers
* 12V battery banks
* Shore-power battery charging
* Generator-powered battery charging
* Marine/12V electrical applications
* Regulated high-current DC power applications
* Replacement or upgrade applications for compatible RV converter/charger systems
What This Unit Is NOT
To avoid confusion, this unit is NOT:
* A DC-to-AC power inverter
* A portable power station
* A jump starter
* A solar charge controller
* A battery itself
The 75-amp rating refers to the maximum DC output capacity, not the amount of AC current drawn from a household outlet.

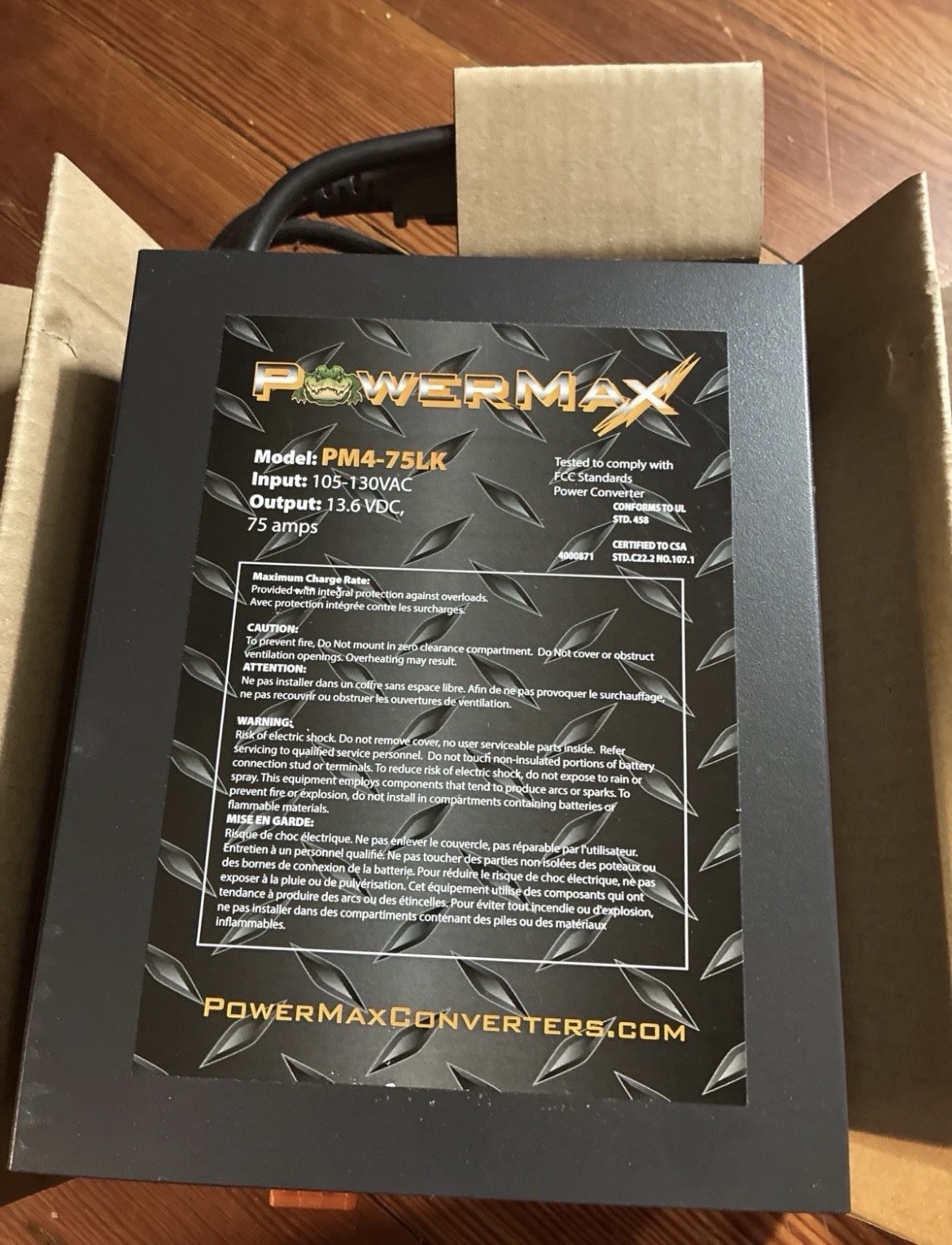

Condition
Open Box / New Other
Packaging has been opened. Unit shows little to no evidence of actual use. Please carefully review all photos for the exact cosmetic condition of the item you will receive.
Please note: Open-box condition does not mean factory-sealed.
Included
* PowerMax PM4-75LK 75A converter/charger
* Attached AC power cord
* Only the items shown in the listing photographs are included
No additional battery cables, installation wiring, mounting hardware, manuals, adapters, or accessories are included unless specifically shown in the photos.
Buyer Responsibility / Compatibility
The PM4-75LK is a high-current electrical component. Proper installation, appropriately sized wiring, circuit protection, battery compatibility, and system configuration are the responsibility of the installer/buyer.
Please verify the model number, specifications, voltage requirements, battery requirements, dimensions, connections, and intended application before purchasing.
Most importantly, please remember:
INPUT: AC household/shore power
OUTPUT: Low-voltage DC power
THIS UNIT DOES NOT CONVERT 12V DC BATTERY POWER INTO 120V AC HOUSEHOLD POWER. IT IS NOT AN INVERTER.
Please review all photographs carefully. The photos show the exact condition and included contents of the item being offered.
