For the ultimate in performance rod ends, look no further than QA1\'s XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.
Ball
52100 Bearing Steel. Heat Treated. Hard Chrome Plated. Precision Ground.
Race
Nylon/PTFE. Self-Lubricating. Self-Sealing.
Body
Chromoly Steel. Heat Treated. Protective Coated for Corrosion Resistance.
Exclusive Features

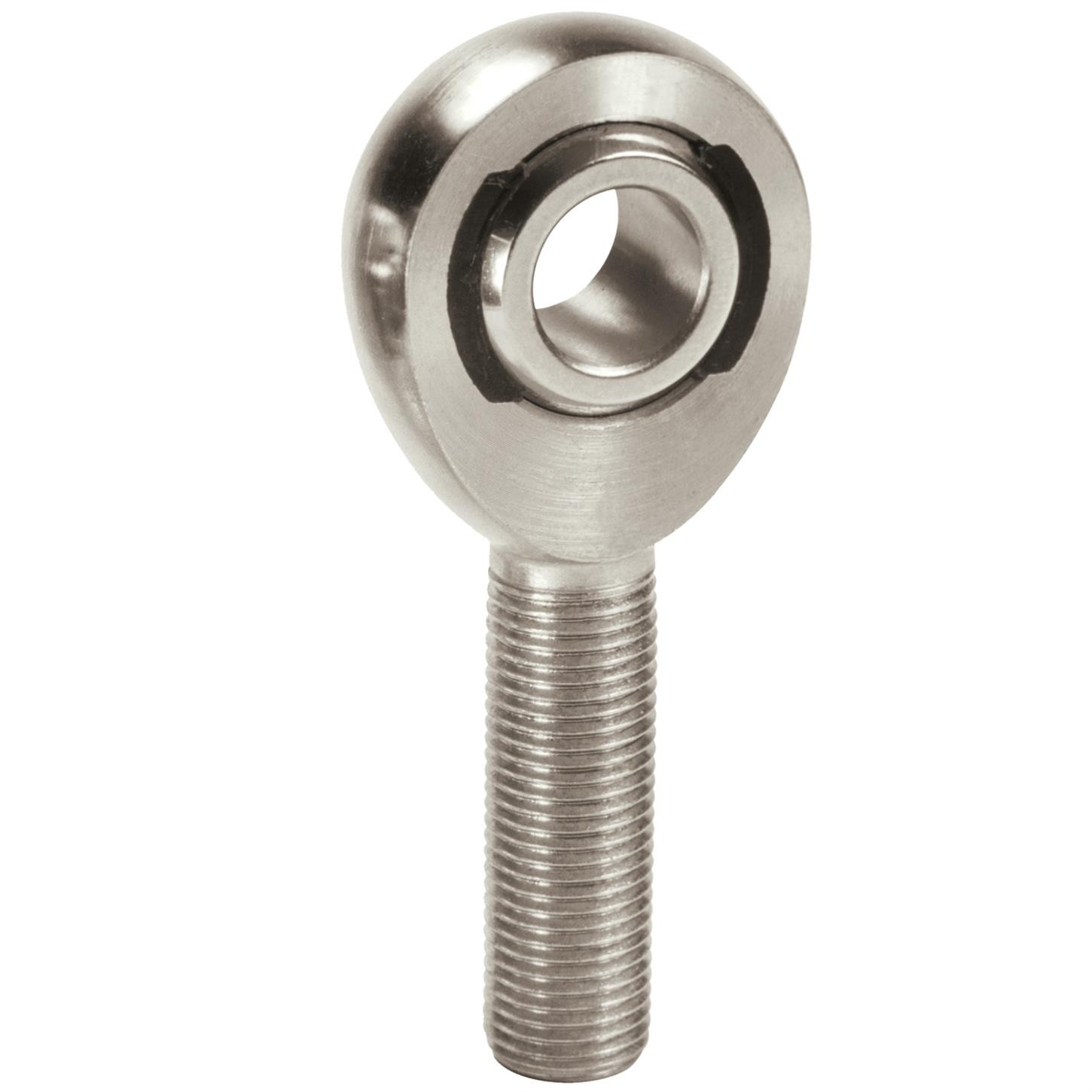

Metal to Metal Support for Heavy Shock Loads. Increased Cross-Sectional Thickness for Greater Tensile Strength. QA1 XMR8-10 X Series Rod End, Chromoly Steel, 2-Piece, 5/8-18 RH Sku # 721XMR810 Mfr. Part # XMR8-10 Condition New Brand QA1 Sold Each Details
For the ultimate in performance rod ends, look no further than QA1\'s XM Chromoly Steel Series male rod ends. These heavy duty rod ends are commonly used on 4-link and ladder bars for their strength and durability. XM Series rod ends are completely self-sealing and self-lubricating because of their Nylon/PTFE injection molded race that keeps dirt and debris out.
Ball
- 52100 Bearing Steel
- Heat Treated
- Hard Chrome Plated
- Precision Steel
- Heat Treated
- Protective Coated for Corrosion Resistance
Exclusive Features
- Metal to Metal Support for Heavy Shock Loads
- Increased Cross-Sectional Thickness for Greater Tensile Strength
Specs Thread Type RH Male Rod End Attachment Male Threads/Eyelet Thread Pitch 5/8"-18 Material Type Chromoly Hole Diameter 0.5" Rod End Style Nylon/PTFE Lined Rod End Construction 3-piece Grease Fitting No Finish Zinc Plated Color Natural Thread Length 1.625" Rod End Head Diameter 1.5" Rod End Head Width 0.625" Rod End Misalign Angle 10 degrees Bushing Material PTFE Jam Nut Included No Heat Treated Yes Load Capacity 23542 lbs. MFG. Part # XMR8-10 GTIN Code 806990007445 Sold in Quantity Each Reviews Nice part Rated by Anton on November 25, 2025
Summary: Used for 4-link on a suspended dragster
Yes, I recommend this product.
good part for the price Rated by JackPot on October 11, 2019
Summary: survived the rough tracks we run
Yes, I recommend this product.
