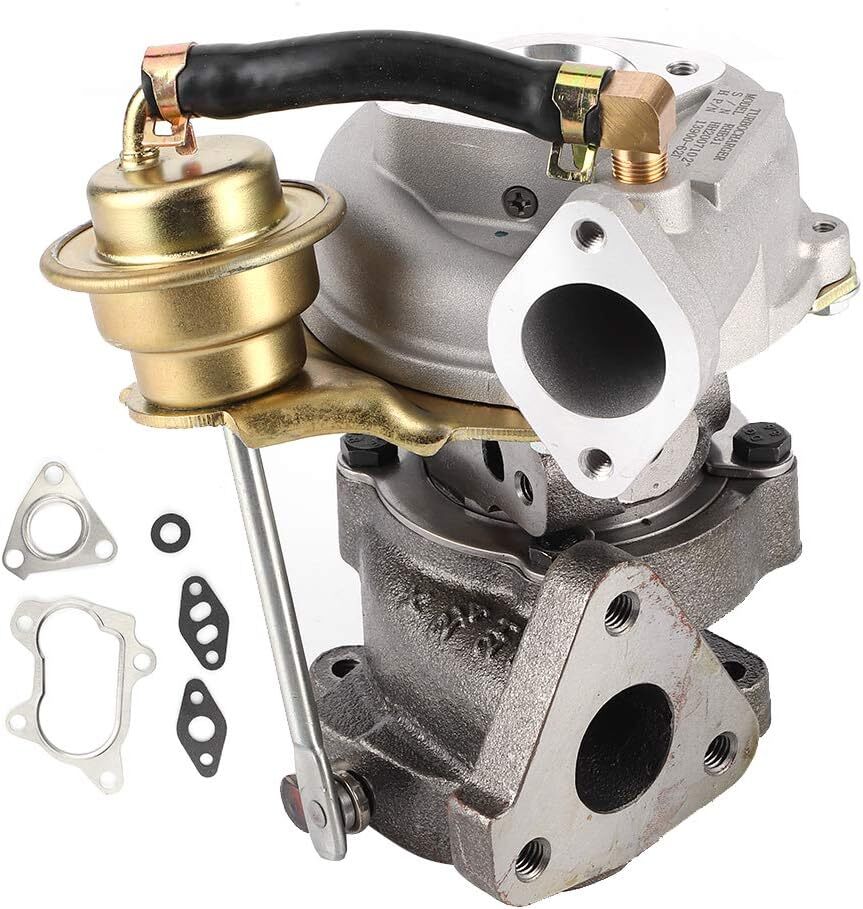

RHB31 VZ21 Mini Turbo Small Engine Quads Rhino Motorcycle Turbocharger OEM NO. 1390062D51,1390062D50, 13900-62D50Part No. VZ21/ 13900-62D51Application Small engine snowmobiles Quads Rhino Motorcycle ATV 500-600ccm 100HPfor Suzuki ALTO Works with YA1, F6AT EngineBriggs and Stratton, Murray, Briggs Power/Generac with 21R707-0011-G1 EngineTurbo Model. VZ21Additional Details:Condition:100% Brand NEW & Factory BalancedAccessories: You will get exactly as shown in the picture above
VZ21 13900-62D51 Mini Turbo charger For Small Engines Snowmobiles ATV RHB31RHB31 VZ21 Turbo Small Engine For Quads Rhino Motorcycle TurbochargerOEM NO.
1390062D51,1390062D50, 1390062D50, 13900-62D50,VA110069
VB110069, VC110069, VD110069, VE110069
VF110069, VI110069, VJ110069, VH110069, VG110069
Part No.
VZ21, 13900-62D51
Application
for Small engine snowmobiles For Rhino Quads Motorcycle ATV 500-600ccm 100HP
for Suzuki ALTO Works with YA1, F6AT Engine
for Generac with 21R707-0011-G1 Engine
for Suzuki ALTO Works with 21R707-0011-G1 Engine
Turbo Model.
RHB31
Specific:
Engine : YA1, F6AT, for Isuzu 4TNA, 21R707-0011-G1 Engine
Cooled Type: water and oil cooled
Bearing Type: Journal Bearing
Thrust Bearings: 360 Degrees
Fit for : 500 cc to about 1000cc
Internal-wastegate: 15psi
Horse Power: 23-100HP
Compressor Exducer: 37.1mm
Compressor Inducer: 24.2 mm
Compressor Trim: 42.5
Compressor A/R: 0.7
Turbine Inducer: 35mm
Turbine Exducerr:26.7mm
Turbine Trim: 58.2
Turbo Type: Individual
Universal Fitment: Yes
Finish: No
Package Size:26x 25 x 23 cm
Package Weight: 3400g
Condition:100% Brand NEW & Factory BalancedAccessories: You will get exactly as shown in the picture above
* Please confirm your old turbo part number matches up with one of the part numbers above.
* Professional installation is highly recommended (No Instruction Included)
* It is for repairing or rebuilding the complete turbo.
*Before installing the new turbocharger, the cause that led to the failure of the turbo must be analyzed and eliminated (e.g. insufficient oil supply, foreign bodies in the intake area, crankcase ventilation without function, etc.)!
