Special features

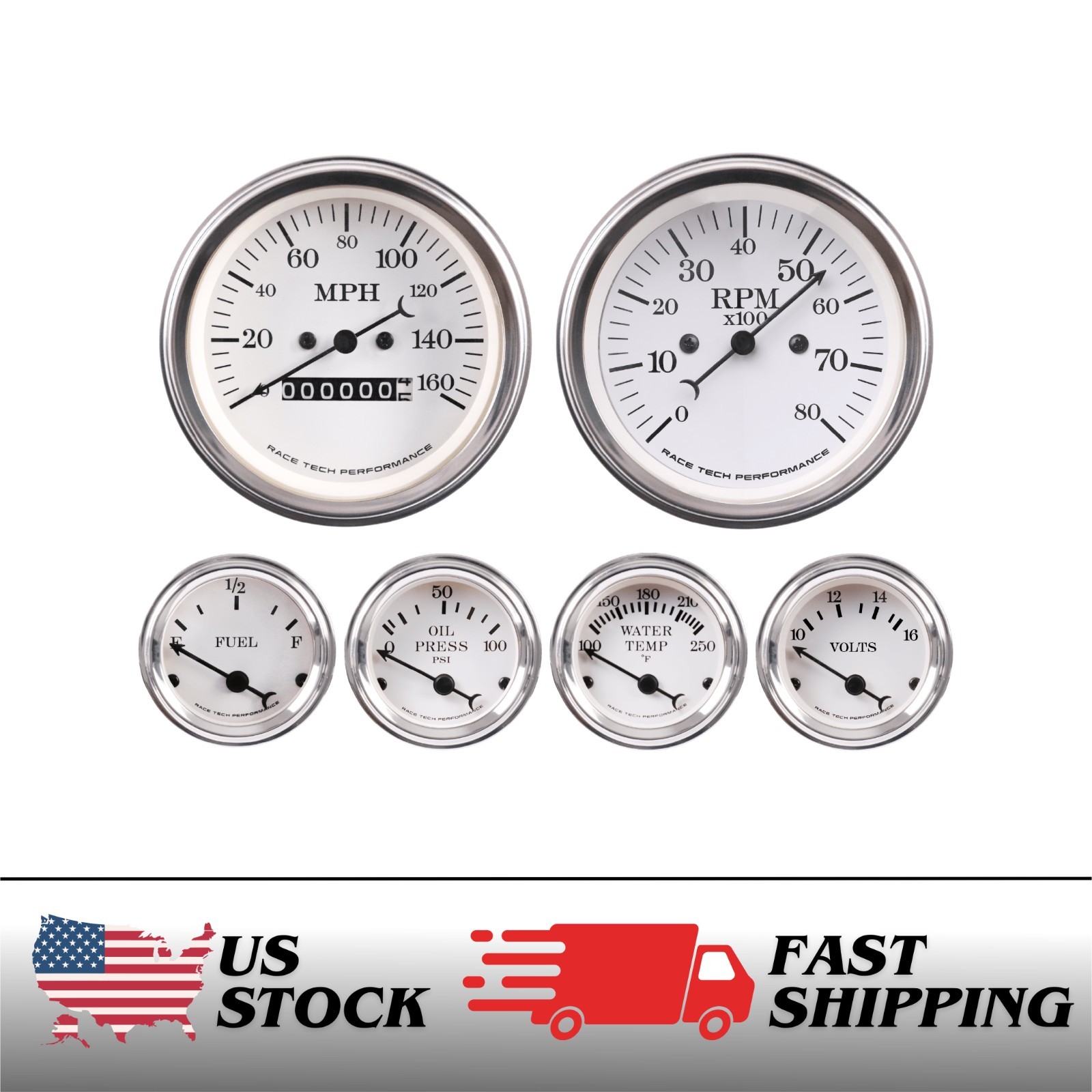

White Dial Instrument Cluster
ClassicWhite Dial With Crisp Black Pointers. Designed Exclusively For Automotive Instrument Clusters.
4-Color Backlight Customization
IncludesRed,Green, AndBlueBulb Covers For A Personalized Look.
That Is Easy To Install And Replace
Each Gauge Includes aSet of Colored Bulb Coversin Red, Green, and Blue, Providing You With 4 Color Options For Every Gauge.
Instrument Clusters Vintage Style
Our Instrument Clusters
Feature aStainless Steel Rimand aConvex Lens, Meticulously Designed For a Premium Look.
Easy Installation
85mm (3-3/8\") Tachometer WithPIN-STYLE DesignFor Easy Wiring And Installation.
Specifications and Dimensions of Gauges.
Our 85mm (3-3/8\") Speedometer And Tachometer Have ADepth Of 72mm (2.83\").
Our 52mm (2-1/16\") Gauges, Such As Fuel, Oil, Water Temp, And Volt, Have ADepth Of 70mm (2.75\").
Instrument sensor
Filtering for Optimal Performance
The Tachometer Includes:
No. 22– Suitable for Single Coil or Point-Style Coil Ignition Systems.
No. 24– Compatible with High Energy Ignition (HEI) Systems.
Fuel Sender
Fuel Level Gauge includesFuel Level Sender (240~33 Ohm)
Oil Sender And Water Temp Sensor
Oil Pressure Gauge IncludesOil Pressure Sensor (1/8NPT)And 1/8\" NPT Female 45 Deg Fitting, 1/8\" NPT Male Coupler Fitting, And 1/2\" NPT Male To 1/8\" NPT Female Adaptor Fitting
Water Temp Gauge IncludesWater Temp Sensor (1/8NPT)
The Entire Set Includes
- 85mm (3-3/8\") Mechanical Speedometer 、Tachometer x1
- 52mm (2-1/16\") Fuel Level Gauge、Oil Pressure Gauge、 Water Temp Gauge、Volt Gauge x1
- Power and Signal Wire Harness for Tachometer x1
- Light Bulb x6
- Each Gauge Has Red, Green, And Blue Colored Bulb Covers x6
- Signal Filter for Tachometer One each of #22 and #24
- Fuel Level Sensor Set(240~33Ohm) x1
- Oil Pressure Sensor(1/8NPT) x1
- Oil Pressure Adaptor Set: 1/8\" NPT female 45 deg fitting, 1/8\" NPT male coupler fitting, and 1/2\" NPT male to 1/8\" NPT female adaptor fitting
- Water Temp Sensor(1/8NPT) x1
- 85mm U-Bracket Set x2
- 52mm U-Bracket Set x4
- Each Mounting Hardware for Gauges
About this item
- SIZES: 85mm (3-3/8\") - Speedometer & Tachometer. 52mm (2-1/16\") - Fuel Level, Water Temperature, Oil Pressure & Volt.
- PRODUCT DETAILS: Speedometer: 0-160MPH With Odometer, Speedometer Cable Thread Size: 5/8\"-18 UNF; Ratio: 1000 PRM = 60 MPH, Tachometer: 0 - 8000RPM, Fuel Level Gauge: E-F & Resistance 240-33 ohms, Oil Pressure Gauge: 0-100 PSI, Water Temperature Gauge: 100-250 °F, Voltmeter:10-16 V. Tachometer Fits Any 1 to 9 Cylinder Gas Powered Engine. Gauge Set Requires 12 Volt Negative Ground Systems.
- FEATURES: Swiss Stepper Motor Movement, In-Dash Design, White Dial with Black Needle, Light Bulb Illumination, Digital Odometer, Convex Clear Lens, SUS304 Stainless Steel Bezel, Plastic Housing, Pin-Style Easy Installation.
- INCLUDES: 6 Gauges, Power and Signal Wire Harness x2, Light Bulb x6, Red Green Blue Bulb Covers x6, Signal Filter #22 #24, Fuel Level Sender (240 - 33 ohms), Oil Pressure Sensor (Thread Size: 1/8 NPT) and Includes Sensor Adapters For Oil Pressure Gauge, Water Temperature Sensor (Thread Size: 1/8 NPT), Mounting Hardware x6, Installation Instructions.
- One-Year Warranty For Non-Human Factor Damage & Free Lifetime Technical Support. If you experience any issues with your product, please contact us through first. Our team will be happy to assist you with troubleshooting or replacements.
- To ensure reliable and faster shipping for our customers, we have stocked inventory within the United States. All customs duties have already been paid by us, so there will be no additional customs fees at checkout for items marked with the US Stock logo.
